Summary of Contents for Regal Vue

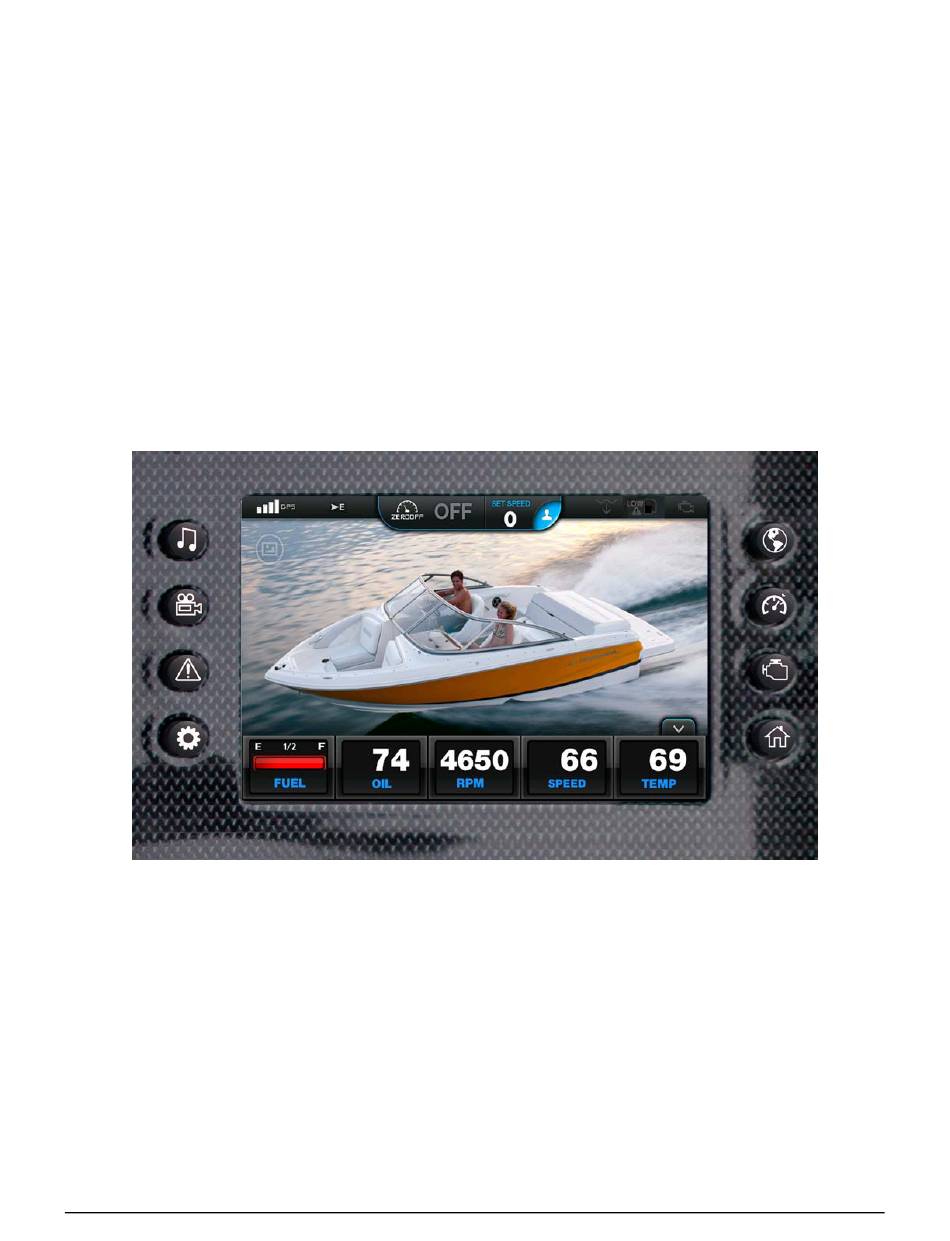

  • Page 1 RegalVue Owner’s Manual 2015-03-05 1511647...

  • Page 2: Table Of Contents

    Table of Contents Product Information ........................3 Care and Maintenance ....................3 Basic Navigation Features ......................4 Touch Screen Navigation......................6 Quick Access Key Features ...................... 8 Stereo Feature ......................8 Video Feature ......................12 Diagnostic Message Feature ..................14 Main Menu ........................

  • Page 3: Product Information

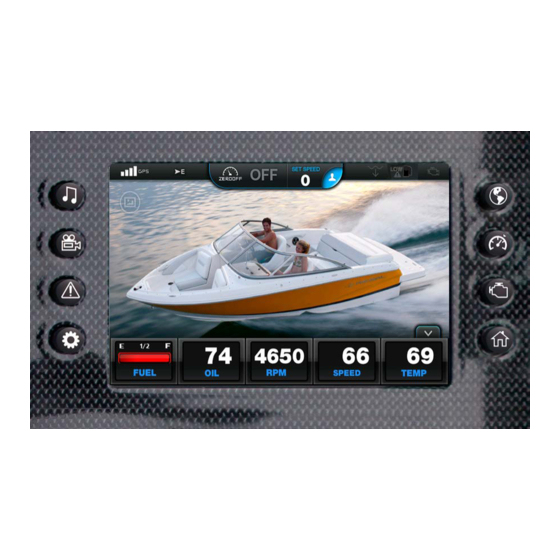

    Product Information RegalVue is a touch screen display solution. It is designed for instrumentation on electronically controlled engines communicating via SAE J1939 and NMEA 2000. The display is a multi- functional tool that provides GPS tracking, multimedia display, speed control and rider profiles. In addition, the display enables equipment operators to view many different engine parameters and service codes.

  • Page 4: Basic Navigation Features

    Basic Navigation Features All product features are easily accessed through Quick Access Keys, Touch Menus and Touch Screen commands. Quick Access Keys These controls are accessed via the Quick Access Keys: stereo, video, diagnostic messages, settings, maps, speed control, engine statistics and Home. 2015-03-05 1511647...
  • Page 5 Touch Point Commands Touch key commands provide additional features and navigation shortcuts. Depending on the current screen being displayed, they may appear as icons or a vertical control bar. Touch key commands are used throughout the RegalVue display to: • Access features •...

  • Page 6: Touch Screen Navigation

    Touch Screen Navigation Widget Description DATA BAR ON – Touch this to display the engine status at the bottom of the screen. The data bar provides the following information: • Fuel Level • Oil Pressure • RPM • Speed • Engine Temperature •...
  • Page 7 Widget Description BACK – Touch this to move to the previous screen. The changes will be saved. ZERO OFF – Touch this to turn ZERO OFF on or off. This function is found in the upper middle of every page of the display (except the Main Menu). NOTE: When cruise is turned OFF, the driver must pull the throttle back slightly.

  • Page 8: Quick Access Key Features

    Quick Access Key Features This section describes the features accessed through the Quick Access Keys located to the left and right of the display. Stereo Feature Stereo Display can be accessed by pressing the Quick Access Key This feature provides universal control to the stereo mimicking all the controls of a standard remote control.
  • Page 9 Touch Command Description iPod MENU – Touch this button to display the iPod menu, as shown below: Utilize the Up and Down arrows, then touch Select when the appropriate choice is displayed. VOLUME – Touch this button to lower the volume. VOLUME –...
  • Page 10 REWIND - Touch this button to rewind the current selection. FAST FORWARD - Touch this button to fast forward the current selection. Regal F700 Stereo AUX Home Screen To access the Regal F700 Stereo Settings, press Utilize the + and – keys to adjust the appropriate settings. 2015-03-05...
  • Page 11 Regal F700 Stereo iPod Screen Regal F700 Stereo FM Screen 2015-03-05 1511647...

  • Page 12: Video Feature

    Video Feature Video can be accessed by pressing the Quick Access Key This feature provides the ability to play the DVD player or a connected video camera or other device. Video Feature - Touch Commands Touch Command Description DVD – Touch this to use the DVD player. The following screen is displayed: VOLUME - / + -- Touch the - to lower the volume and + to raise the volume.
  • Page 13 Touch Command Description PREV TRACK/CHAPTER – plays the previous track or chapter in the current DVD. NEXT TRACK/CHAPTER – plays the next track or chapter of the current DVD. PLAY/PAUSE – toggles between Play and Pause modes when a DVD is playing.

  • Page 14: Diagnostic Message Feature

    Diagnostic Message Feature Press the button to access the diagnostic messages. This feature provides a view into the engine behavior. If there is a fault, it will be displayed on this screen with a description of the fault and corrective action to take. In addition, this screen provides the: •...

  • Page 15: Main Menu

    Main Menu When the settings key is pressed, the Main Menu is displayed. From the Touch Menu on the right of the screen, specific settings can be selected using the touch keys. Touch key areas are indicated by a soft glow highlight. The following settings are available: •...
  • Page 16 Card). This selection determines the order in which the system checks for cards. Changing the source will cause the system to reboot. NOTE: Only use approved Navionics cards from Regal Boats. Waypoint Manager Waypoints allow you to mark specific locations by latitude and longitude. Once the waypoints are established, the Waypoint Manager allows you to associate an icon with them for identification.
  • Page 17 • Waypoint List – displays a list of the waypoints that have been set. Use the UP and DOWN keys to highlight the desired waypoint. • Waypoint Icon – allows you to assign one of four different icons to any of the waypoints listed.
  • Page 18 Chart and Time Setup This menu option allows you to set up viewing options for the GPS Display. Chart Setup Parameters – touch to select the information you want displayed on the GPS screen. Time Setup Parameters – used to select correct time zone and clock mode for either 12-hour or 24-hour time formats.
  • Page 19 Depth and Position Settings This feature allows you to define the amount of detail to display for longitude and latitude information on the GPS map and depth display. Touch [DONE] when finished. GPS Status Shows the location of the discoverable satellites. Touch [DONE] when finished.
  • Page 20 User Settings User Settings provide options to specify viewing preferences. Pressing PREV and NEXT navigates through the options, and UP and DOWN scrolls through the selections for each option. Touch Commands for User Settings include: Up Arrow or Down Arrow – increases or decreases values within a field DONE –...
  • Page 21 Language Select between English, Spanish, German, French European and French Canadian. Data Bar Settings The Data Bar is a pop-up that shows and edits some of the engine statistics at a glance. It can be shown at the bottom of most screens or hidden from view. Select the number of desired slots to be displayed (3, 4 or 5) on the first screen shown below and touch Continue: After the number of slots is selected, choose the statistics to be displayed and the order in which they are to be displayed on the second screen:...
  • Page 22 Touch [DONE] when finished, and the data bar will have the appearance chosen. NOTE: The fuel level indicator is always displayed and always displayed first. System Information Component Version Part No. Application The version number of the The part number for the application installed on the application hardware...
  • Page 23 Dealer Settings This is a secured area where dealers can prepare settings for particular boat models. NOTE: A dealer code must be entered before the dealer settings can be accessed. Use the UP and DOWN arrows to scroll through the boat models. The ZeroOff Cruise Control can be ENABLED or DISABLED.

  • Page 24: Gps Feature

    GPS Feature The Maps feature is accessed by pressing . The Maps feature displays map data, latitude and longitude coordinates, time and speed. GPS Display - Soft Key Commands Screen Description Element ZOOM IN – Touch this to zoom in on the location of the cursor. ZOOM OUT –...
  • Page 25 Screen Description Element UP ARROW – Touch this to move the cursor up on the map. DOWN ARROW – Touch this to move the cursor down on the map. MAP MENU – Touch this to access the Map Menu or to hide it. CURRENT POSITION –...

  • Page 26: Profiles Feature

    Profiles Feature ***This feature is only available for boats equipped with Zero Off speed control. See dealer for upgrade.*** NOTE: the above screen displays if this boat is not equipped with Zero Off. Rider profiles can be accessed by pressing the Quick Access Key .
  • Page 27 Create the individual Ballast settings for each profile by touching Fill All, Drain All or the Up/Dn arrows under each ballast (Port, Center, Starboard). When the boat speed is over 3 or under 14, select the appropriate Surf setting (Left, Right or None).
  • Page 28 New Rider Profile Function Description To create a new profile touch [+ NEW RIDER]. The following screen will be displayed: Touch the pencil icon in the upper left and type a name for the new rider. Utilize the up and down arrows to set the Speed and Port, Center and Starboard ballasts.
  • Page 29 Function Description RIDER SETTINGS – Displays the Rider Settings screen, shown below: PROFILE SELECTORS – Scrolls through the available profiles. 2015-03-05 1511647...

  • Page 30: Engine Statistics

    Engine Statistics The engine statistics can be accessed by pressing the Quick Access Key This feature is a display-only summary of the engine statistics featuring: • Engine Temperature • Oil Level • Fuel Level • Speed • Engine RPMs • Trim Tabs •...

  • Page 31: Troubleshooting

    1. Check display supply wires are connected properly to battery. 2. Verify battery is charged properly. 3. Check battery for efficient starter current. Display has no backlight. Contact your Regal service center. Display has no keypad backlight. Contact your Regal service center. 2015-03-05...
