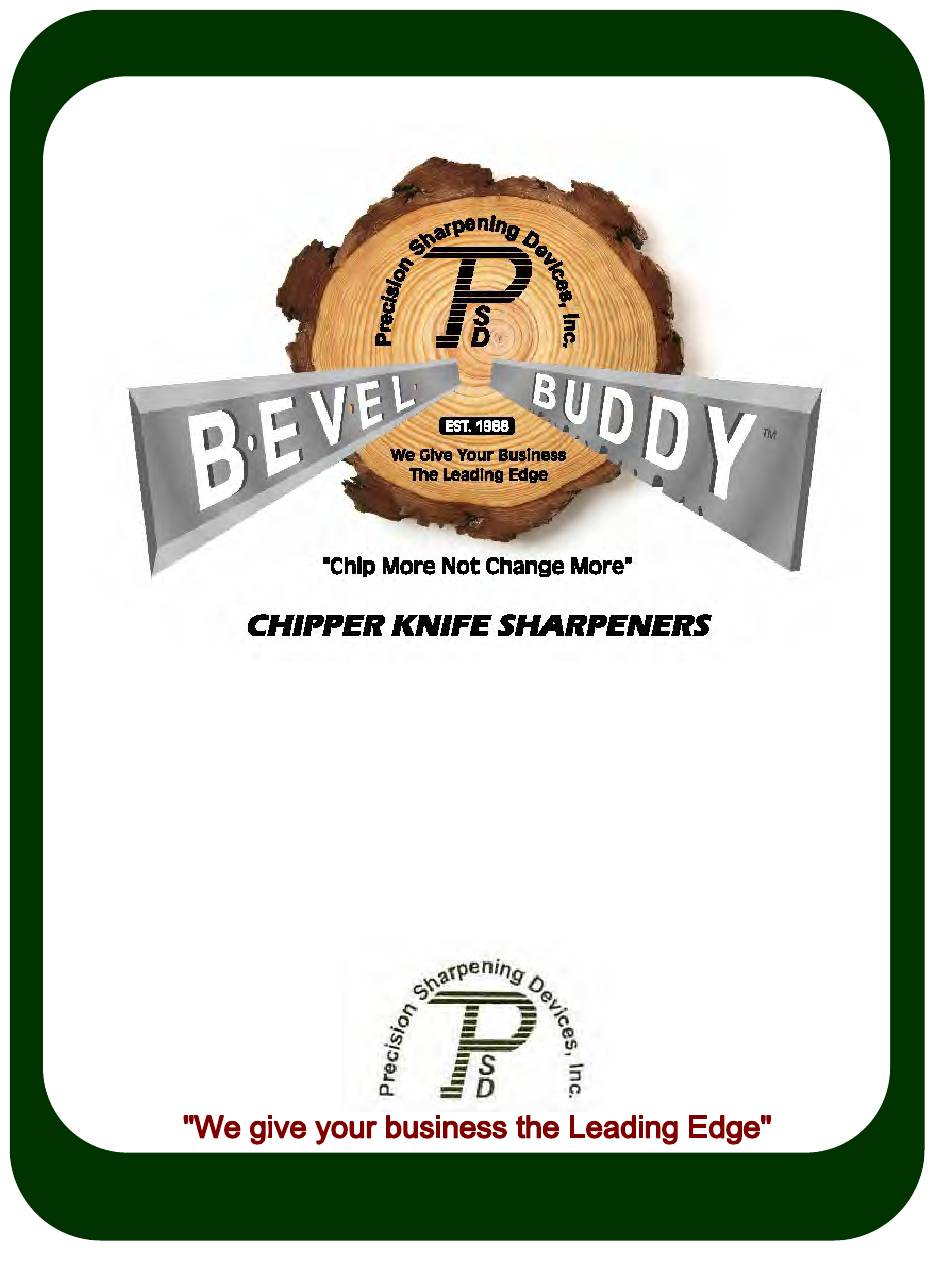

  • Page 1 Bevel Buddy ™ Instruction Manual...

  • Page 2: Table Of Contents

    We at Precision Sharpening Devices Inc. believe there are two very important steps in maximizing the savings this equipment can provide your company. First, use this manual to educate your operators in the proper set-up and operation of this equipment. Second, plan to keep the knives sharp at all times. Do not let the knives go beyond the resharpening point.

  • Page 3: Safety Instructions

    Safety Instructions READ BEFORE USING Do not expose this sharpener to rain or wet conditions  ALWAYS remove the battery from the tool or disconnect from  the power source before making any adjustments or changing / indexing the abrasive, and storing the sharpener in the supplied storage case.

  • Page 4: Type Of Machine The Sharpener Is Being Used On And Which Abrasive To Use

    2. Type of machine the sharpener is being used on and which abrasive to use for that set-up. When using our resharpeners you must ALWAYS counter grind / back bevel on the side of the knife that the material discharges from only!! NEVER attemptto resharpen the feed side of the knife! Pocket mounted knife for disc style chipper, use drum style abrasive #A-MDA0195-D80.
  • Page 5 Plywood lathe knife set-up, use cone style abrasive #A-MDA0197-C80 with large diameter of abrasive away from the drive motor. FOR KNIVES BETWEEN 22º TO 25º Pole Peeler or some small chippers knife set -up. Use cone style abrasive #A-MDA0197-C80 with large diameter of abrasive toward the drive motor.

  • Page 6: Proper Operating Procedures

    3. Proper Operating Procedures  Before using the Bevel Buddy Resharpener make sure the proper abrasive for the task is applied to the resharping tool, refer to section 2 for the set-up.  When performing the resharpening process on the knife, as you are facing the disc and it turns counter clockwise start the sharpening process from your right and move to the left.

  • Page 7: Assembly View And Parts List

    5. Bevel Buddy™ Max Assembly view & parts list.

  • Page 8: Bevel Buddy™ Accessories

    This limited warranty is in lieu of all other express warranties. Any implied warranty of fit- ness for a particular purpose, merchantability or otherwise, applicable to this product shall be limited in duration to the duration of this limited warranty. Precision Sharpening Devices Inc. shall not be liable for any special, incidental or consequential damages.
