Advanced Wireless Communications AWR-CB2200 Operator's Manual

Uhf two-way call box

Advertisement

Quick Links

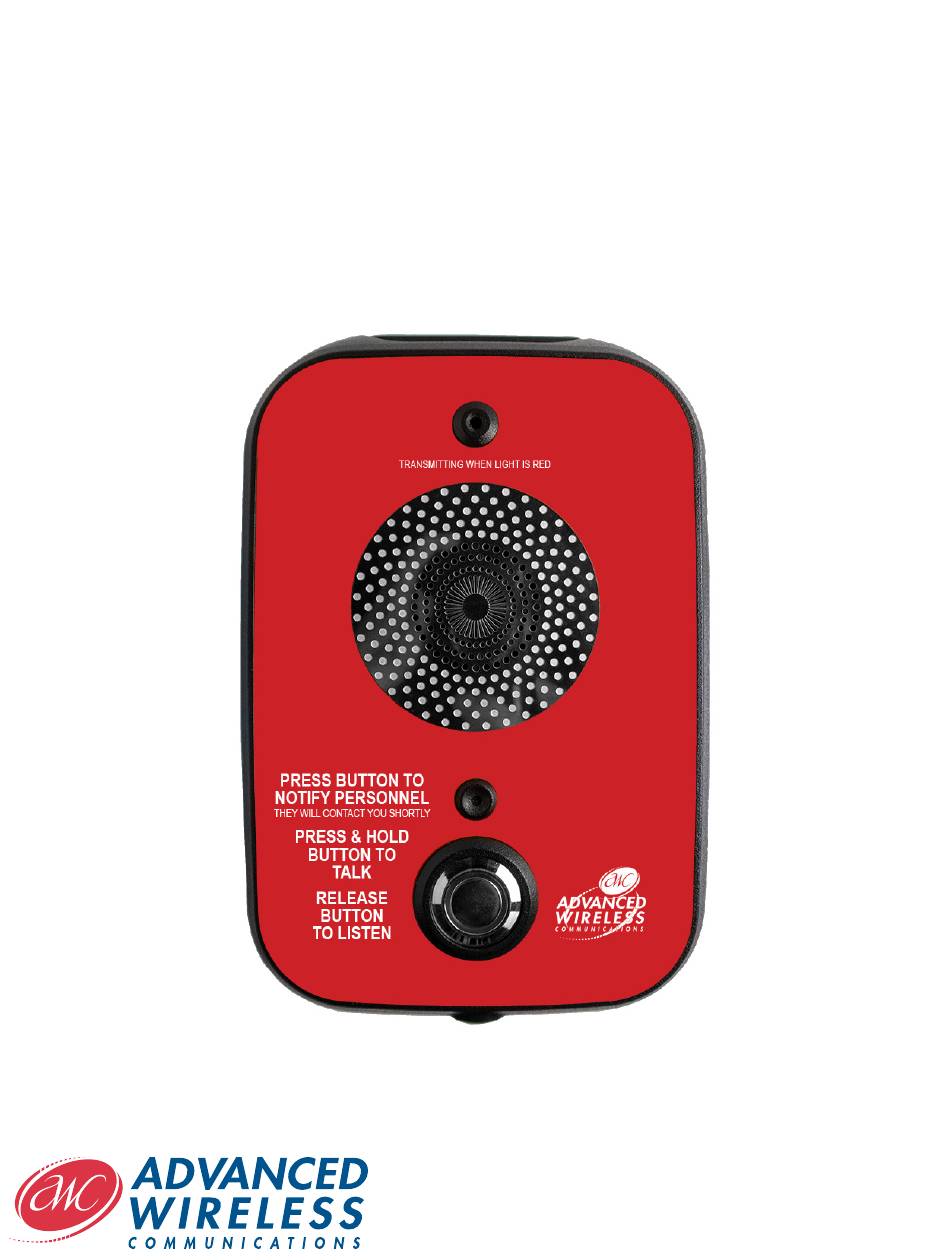

AWR-CB2200 UHF Two-way Call box
Operator Manual

Advertisement

loading

Summary of Contents for Advanced Wireless Communications AWR-CB2200

  • Page 1 AWR-CB2200 UHF Two-way Call box Operator Manual...
  • Page 2 Built in Mount Speaker MIcrophone PRESS BUTTON TO NOTIFY PERSONNEL THEY WILL CONTACT YOU SHORTLY PRESS & HOLD BUTTON TO TALK Activator/PTT RELEASE Button BUTTON TO LISTEN Reset Button (3) D-Cell Battery Battery Drawer Reset Button Screw Battery Drawer Built-in Mounting...
  • Page 3 AWR-CB2200 UHF Two-way Call box Features: • 450MHz to 470MHz Frequency Band of Operation - Analog • .5W or 2W transmit power level • Water resistant (IP67) • Companding on/off • Optional customized call box labels (front / two sides)(Special order) •...
  • Page 4 Two-way call box will no longer provide receive audio to the local speaker. • The AWR-CB2200 will be in ‘Sleep Mode’ (off) the majority of the time. During ‘Sleep Mode’, very little current is being consumed allowing for extended battery life.
  • Page 5 Advanced Operational Functionality: • Recording audio messages using the on-board call box microphone. The call box MUST be in ‘Sleep Mode’ when the following steps are started: 1. Press the ‘Activate’ and ‘Reset’ buttons simultaneously until the status LED flashes two times. 2.
  • Page 6 THIS PAGE WAS LEFT INTENTIONALLY BLANK...
  • Page 7 THIS PAGE WAS LEFT INTENTIONALLY BLANK...
  • Page 8 20809 Kensington Blvd. Lakeville, MN 55044-8353 (800) 475-5852 www.advancedwireless.com ©2018 Advanced Wireless Communications. All rights reserved. 501043 All other trademarks are property of their respective owners.
