Philio PAC01 Quick Start Manual

PAC01
Z-Wave JEM-A Adapter

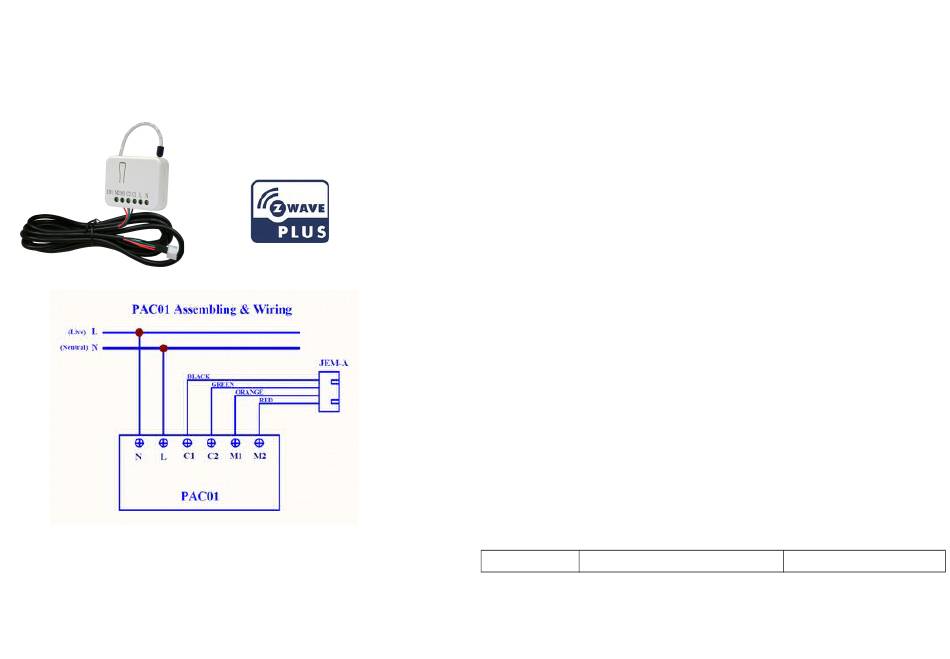

Fig 1. Assembling & Wiring
Introduction
PAC01 is a security enabled wireless JEM-A Adapter, based on Z-Wave Plus technol-
TM
ogy. Z-Wave Plus enabled devices displaying the Z-Wave Plus
used with it regardless of the manufacturer, and can also be used in other manufac-
TM
turer's Z-Wave enabled networks. Z-Wave controller can On/Off the thermostat by
sending Thermostat Setback command.
PAC01 is a transceiver which is a security enabled device which based on
Z-Wave Plus technology, and it is fully compatible with any Z-Wave
network. Since PAC01 supports Security Command Class, it can learn with a Se-
cured enabled controller to fully utilize the device. Its functionality and supported
command classes is identical when included as a secure and non-secure device.
Adding to Z-Wave TM Network
In the front casing, there is an include button with LED indicator below which is used
to carries out inclusion, exclusion, reset or association. When first power applied, its
LED flashes on and off alternately and repeatedly at 2 second intervals. It implies
that it has not been assigned a node ID.
The table below lists an operation summary of basic Z-Wave functions. Please refer
to the instructions for your Z-Wave
Setup function, and to Add/Remove/associate devices
Function
1
TM
TM
Certificated Primary Controller to access the
Description
logo can also be
TM
enabled
Annotation
