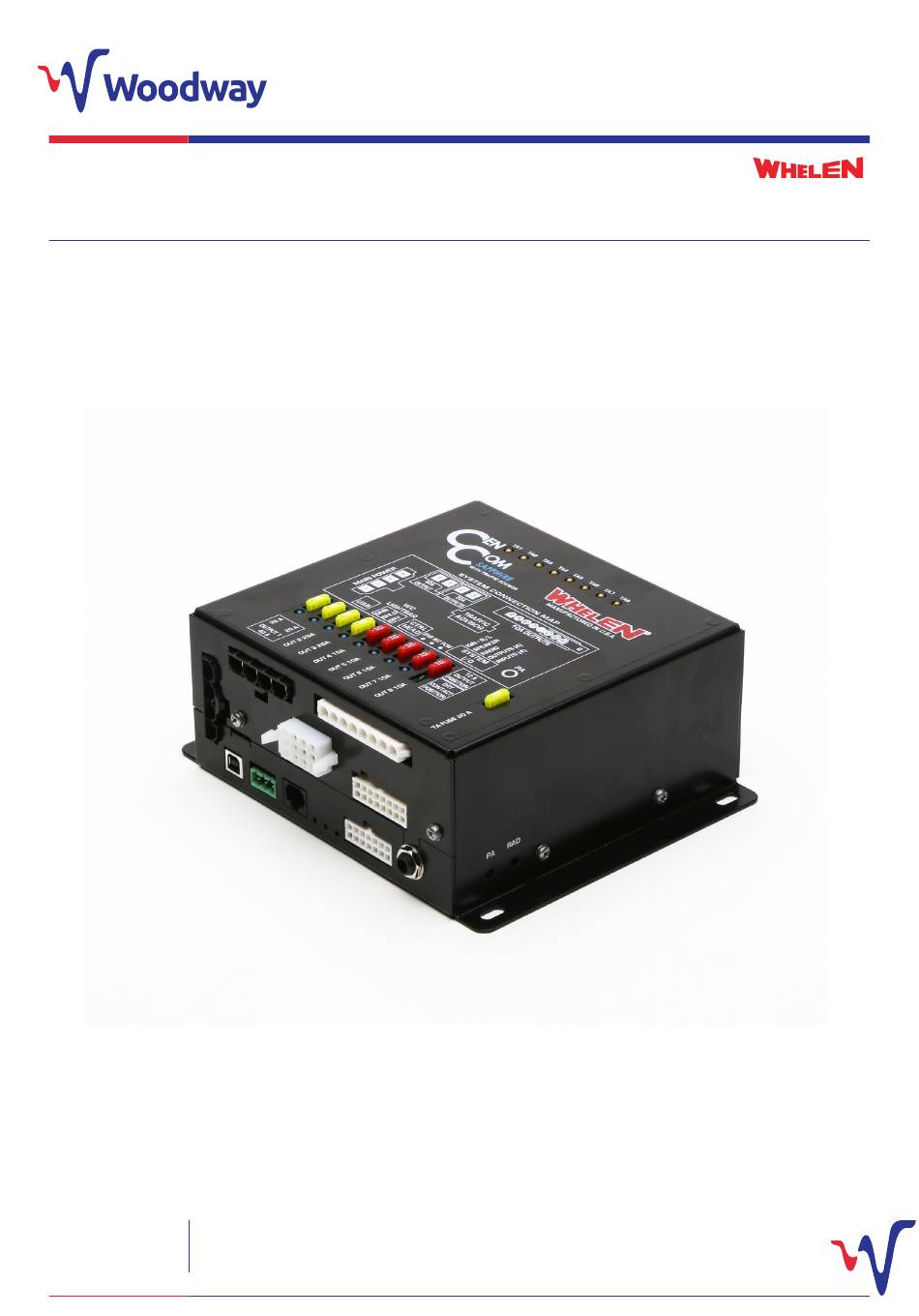

- Page 1 P R O G R A M M I N G G U I D E CenCom Sapphire™ Woodway Engineering Ltd Tel: +44 (0) 24 76 841750 Lower Road, Barnacle Fax: +44 (0) 24 76 621796 Coventry, CV7 9LD sales@woodwayengineering.com United Kingdom www.woodwayengineering.com...
-
Page 2: Pc System Requirements
PC System Requirements CenCom Sapphire™ UK is Whelen’s newest evolution of the Additional Prerequisites: • Windows Installer 3.1 CenCom family of software. It allows you to program your • .NET framework 3.5 (automatically checked during CenCom Sapphire™ hardware, including programming your installation). -
Page 3: Creating A New Program
Creating a New Program Select ‘create’ to start a new program. From here. you will need to select which switch panel you intend to use with your unit. Ensure ‘none’ is selected Once you have selected the switch panel you’re using, ensure the ‘lightbar’ option is set to ‘none’ (you can upload a lightbar configuration separately, later on). - Page 4 Creating a New Program (continued) Clicking on a switch (E.G SW1) on the control head or remote input (R1) will allow you to view and alter any of the outputs set to activate or deactivate. Select a switch (E.G SW1) or input (E.G R1), then simply select the outputs that you wish to turn on or off by selecting the tickbox.
-
Page 5: Pattern View
Pattern View The ‘Pattern View’ is used to set the flash patterns of the lightbar lightheads that will be used during the normal operation of the bar and vehicle. Each lighthead can be programmed to activate by a control head switch or remote input. -
Page 6: Default Settings
Transferring Program to CenCom Sapphire™ Unit Before transferring to the CenCom Sapphire™ UK unit, it’s recommended you save your completed program. To transfer your completed program to your CenCom Sapphire™ UK unit, it must be disconnected from any power source and connected to your computer using a USB type A- USB type B programming lead. - Page 7 CenCom Sapphire™ UK Opti-Din Configuration Default Settings SWITCH LEGEND FUNCTION OUTLETS All lightbar blues & tailgate blues WeCan® 4 & N4 Front blues All lightbar front blues WeCan® Low power Lightbar low power of all blues and reds WeCan® Rear blues All lightbar rear blues and tailgate blues WeCan®...
- Page 8 Additional Input Operations SWITCH/ POLARITY INPUTS OPERATIONS OUTPUT FUNCTION OF INPUT Handbrake Turns run lock off and turns siren Press on 8 On (if run lock active, Negative STRVU test volume reduction if wired in release off this turns off 6&7) Turning on and off of tailgate Press on Tailgate switch...
- Page 9 CenCom Sapphire™ Opti-Link configuration Default Settings SWITCH LEGEND FUNCTION OUTLETS WeCan® Siren arm & front blues Grille/fend, lightbar blues and siren arm including L-Bar Default hidden (IDR O/P) Rear blues All lightbar rear blues and tailgate blues WeCan® 4 &N4 Headlight flash Vehicle headlight flash (separate flasher) WeCan®...
- Page 10 CenCom Sapphire™ Micro-Link configuration Default Settings SWITCH LEGEND FUNCTION OUTLETS Siren arm and font blues Grille/fend, lightbar blues and siren arm including L-bar WeCan® Default hidden (IDR O/P) Rear blues All lightbar rear blues and tailgate blues WeCan® 4 &N4 Headlight flash Vehicle headlight flash (separate flasher) WeCan®...
- Page 11 Please note: The information contained within this brochure is subject to change without prior notice. Woodway Engineering Ltd Tel: +44 (0) 24 76 841750 Lower Road, Barnacle Fax: +44 (0) 24 76 621796 Coventry, CV7 9LD sales@woodwayengineering.com P R O G R A M M I N G G U I D E United Kingdom www.woodwayengineering.com...
