Summary of Contents for Smart Digital Smart Mix SDM200

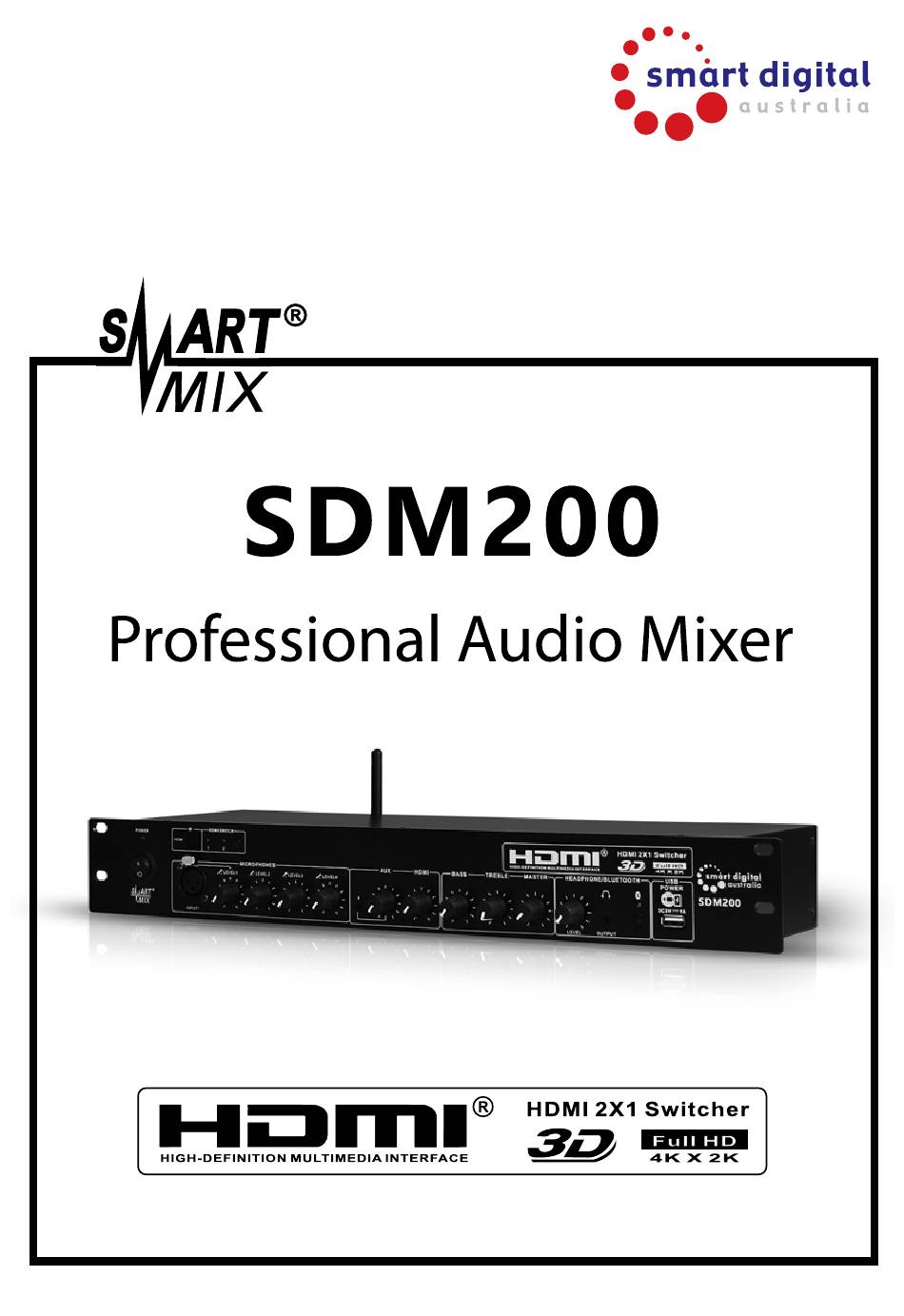

- Page 1 USER MANUAL...
- Page 2 Contents USER PRECAUTIONS PRODUCT FUNCTION DESCRIPTION FRONT PANEL FUNCTION DESCRIPTION PRODUCT CONNECTION DIAGRAM PRODUCT CONNECTION DIAGRAM PERFORMANCE SPECIFICATION PARAMETER...
- Page 3 User Precautions 1.1 This product has AC110V/AC240V transfer switch. Please confirm the supply voltage of the power grid before using, pull the switch out to match the supply voltage of the power grid. This product uses power plug and device appliance coupler as disconnecting device of power supply in power grid.
- Page 4 User Precautions 1.2.2 Before use of equipment, 1) Please check that the power cord should not be damaged, Matching use of power plug and power socket connecting power grid, If it does not match, please replace the appropriate power socket in time. No man-made destruc- tion, modification and use shall be allowed.
- Page 5 Product Function Description 2.1 Front panel diagram: 1) Installation Hole 2) Power Indicator Lamp 3) Remote Control Receiving Window 4) HDMI Selection Switch and Channel Indicator 5) Power Switch 6) Microphone Input 1 XLR Interface 7) Microphone Volume Adjustment Knob 8) AUX3.5 Input and Volume Adjustment Knob 9) HDMI Volume Adjustment Knob 10) Bass and Treble Adjustment knobs...
- Page 6 Product Function Description 2.2 Back panel diagram: 1) HDMI Input Interface 2) HDMI Output Interface 3) Microphone Input 2-4 XLR Interface 4) Left and Right Channel Output Interface 5) Bluetooth Antenna Interface 6) AC110V/AC240V Transfer Switch 7) Power Input Interface...
- Page 7 Product Connection Diagram...
- Page 8 Performance Specification Parameter Equipment Model SDM200 MIC Input Sensitivity(MIC1/MIC2/MIC/ 600 ohms(Ω) 5mV, Balanced MIC4) Line Input (AUX) 10k ohms(Ω) 300mV, Un-balanced Audio Signal Output (MAIN OUTPUTS) 10k ohms(Ω) 0.775V (0 dB), Balanced(L/R) Monitor Signal Output (HEADPHONE) 10k ohms(Ω) 0.775V (0 dB), Un-balanced Frequency Response 50Hz~18kHz(±3dB) Nonlinear Distortion THD...
