To ensure safety, please read this manual carefully before installation and
follow the instructions herein.
Store this manual in a secure place for future reference.
WARNING: CHOKING HAZARD - Accessories contain small parts.
This manual is printed by color ink; water will smudge.
Getting Started ................................... 2
Package Contents ............................... 2
Features at a Glance ........................... 2
Operating Instructions ........................ 2
LCD Display ......................................... 3
Trend Chart Zoom .............................. 4
www.iCeeO2.com
Instruction manual
Product may vary from picture.
Max/Min ............................................. 4
Outo Detect Day/Night ...................... 4
Output Control ................................... 4
LED Display ......................................... 5
Main Menu Functions ........................ 5
Specifications ..................................... 6
1
CO
Controller
2
models -C30
iCeeO2-C30_US_009.UserMan.docx
Advertisement
Table of Contents
Summary of Contents for iCeeO2 C30

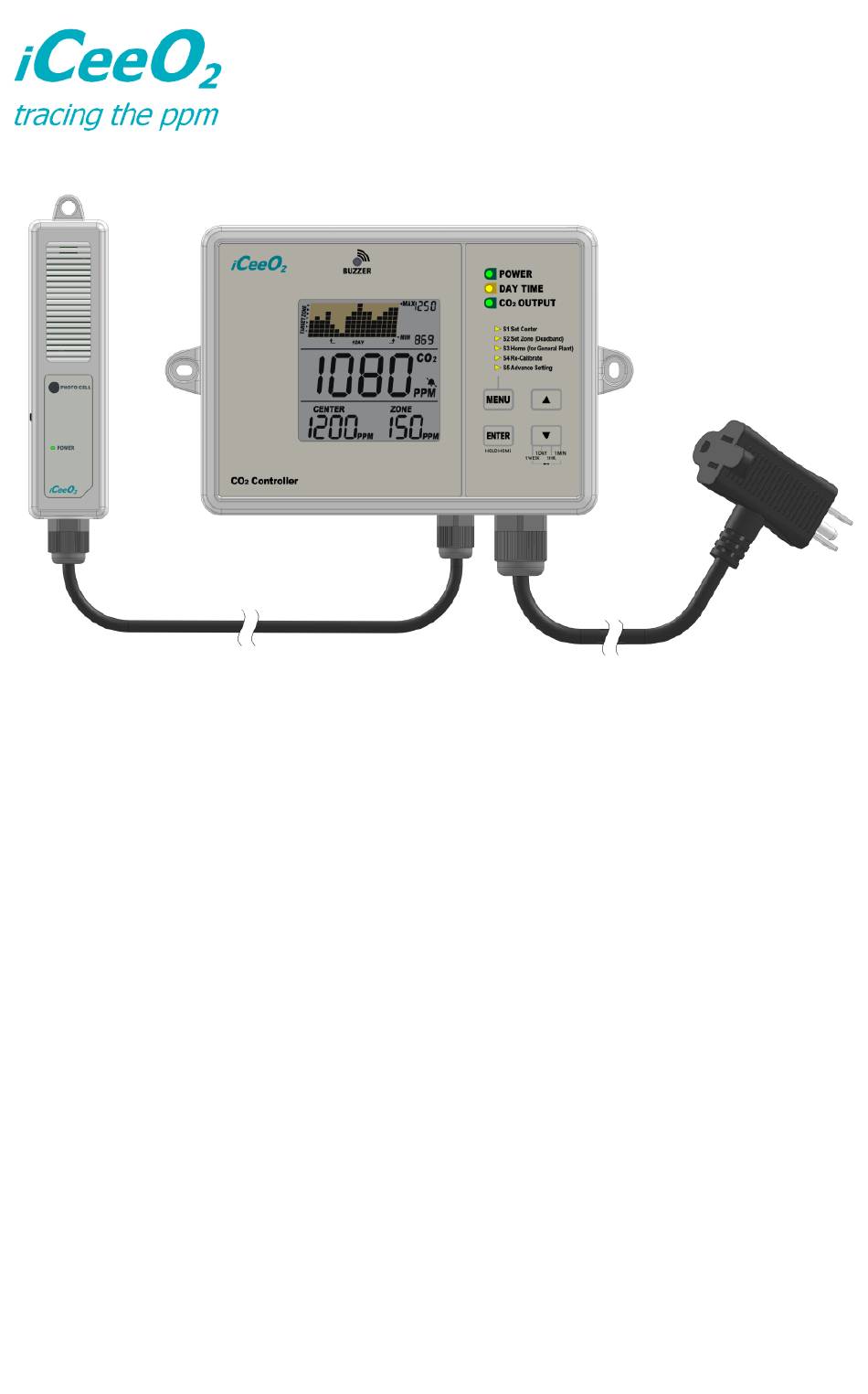

- Page 1 Instruction manual Controller models –C30 Product may vary from picture. To ensure safety, please read this manual carefully before installation and follow the instructions herein. Store this manual in a secure place for future reference. WARNING: CHOKING HAZARD - Accessories contain small parts.
- Page 2 Chart display shows the current software version & “Warm Up” Main display shows a countdown from 10 Once the countdown is complete, your product is ready to use. No initial setup or calibration is needed. 1. Controller working graphic www.iCeeO2.com iCeeO2-C30_US_009.UserMan.docx...
- Page 3 9. Target Zone Indicator 5. CO Zone value CO2 , Set center, Set zone Readings The device has three built-in main parameters: ambient carbon dioxide(7), Set Center value (6), and Set Zone value(5). They are constantly displayed on screen. www.iCeeO2.com iCeeO2-C30_US_009.UserMan.docx...
- Page 4 Set Center-(1/2) Set zone. For example, if the Set Center is 1200ppm, and the Set zone is 400ppm, the output power will shut off when over 1200+(1/2)*(400)=1400ppm, and power on when CO below 1200- (1/2)*(400)=1000ppm. www.iCeeO2.com iCeeO2-C30_US_009.UserMan.docx...
- Page 5 Zone(Deadband) ENTER to confirm. Note that the default value of set zone is 400ppm. This function for Home plant(General plant), Once selected, the Set S3 Home(For Center value is fixed 1200ppm, and Set Zone value is fixed 400ppm. www.iCeeO2.com iCeeO2-C30_US_009.UserMan.docx...
- Page 6 <2min for 63% of step change or <4.6min for 90% Response Time step change Warm-up Time <30 sec Power input AC 100 ~ 240 VAC Sensor Unit: 153*33*27mm (6.0*1.3*1.1inch) Dimension Control Unit: 195*145*44mm195 (7.7*5.7*1.7inch) Weight 700g ( 24.7oz) www.iCeeO2.com iCeeO2-C30_US_009.UserMan.docx...
- Page 7 iCeeO2-C30_US_009.UserMan.docx...
