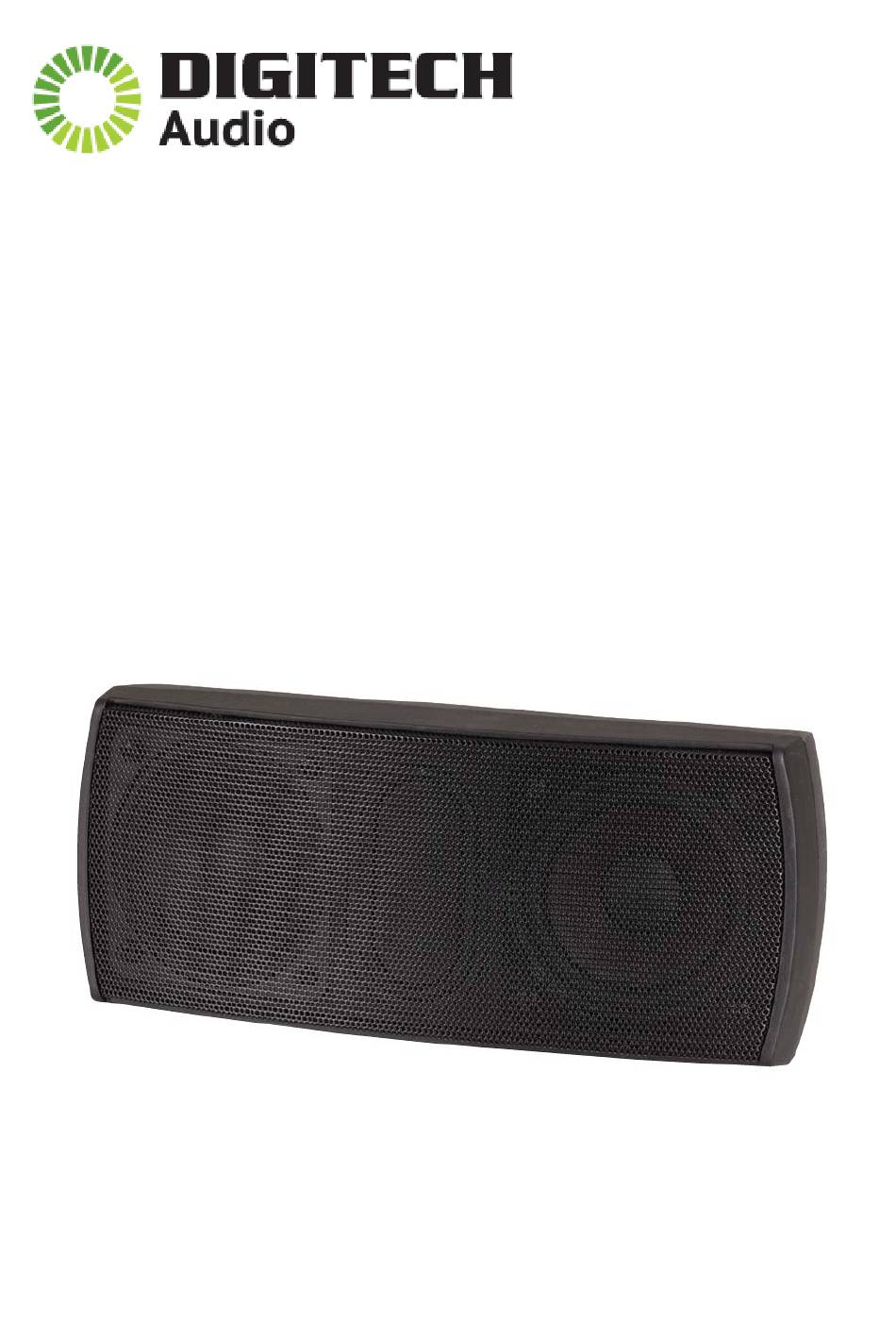

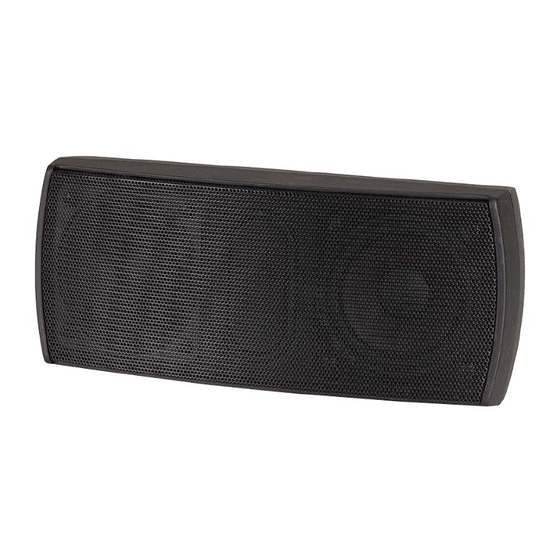

- Page 1 User Manual Surround Sound System Centre Speaker With Bracket CS‐2463 Distributed by: TechBrands by Electus Distribution Pty. Ltd. 320 Victoria Rd, Rydalmere NSW 2116 Australia Ph: 1300 738 555 Int’l: +61 2 8832 3200 Fax: 1300 738 500 www.techbrands.com ...
-
Page 2: Specifications
Specifications: Speaker: 2 x 2.5” Sensitivity: 88dB Power: 15WRMS Frequency Range: 60‐20kHz Impedance: 8 ohm Dimensions: 89(H) x 209(W) x 109(D) mm Installation: ‐ Connect the positive lead to the red terminal on the speaker. ‐ Connect the negative lead to the black terminal on the speaker. ‐ Connect the leads to your amplifier, ensuring that the polarity is correct – positive to positive (red to red), negative to negative (black to black). Notes: ‐ Do not attempt to open, modify or repair any part of the speakers. ‐ Do not get the speakers wet. ‐ When cleaning, use a soft lightly damp cloth free of chemicals. Mounting Diagram: ...
