LPDi LE384 LED Installation, Operation And Maintenance Instructions

Hazardous location led

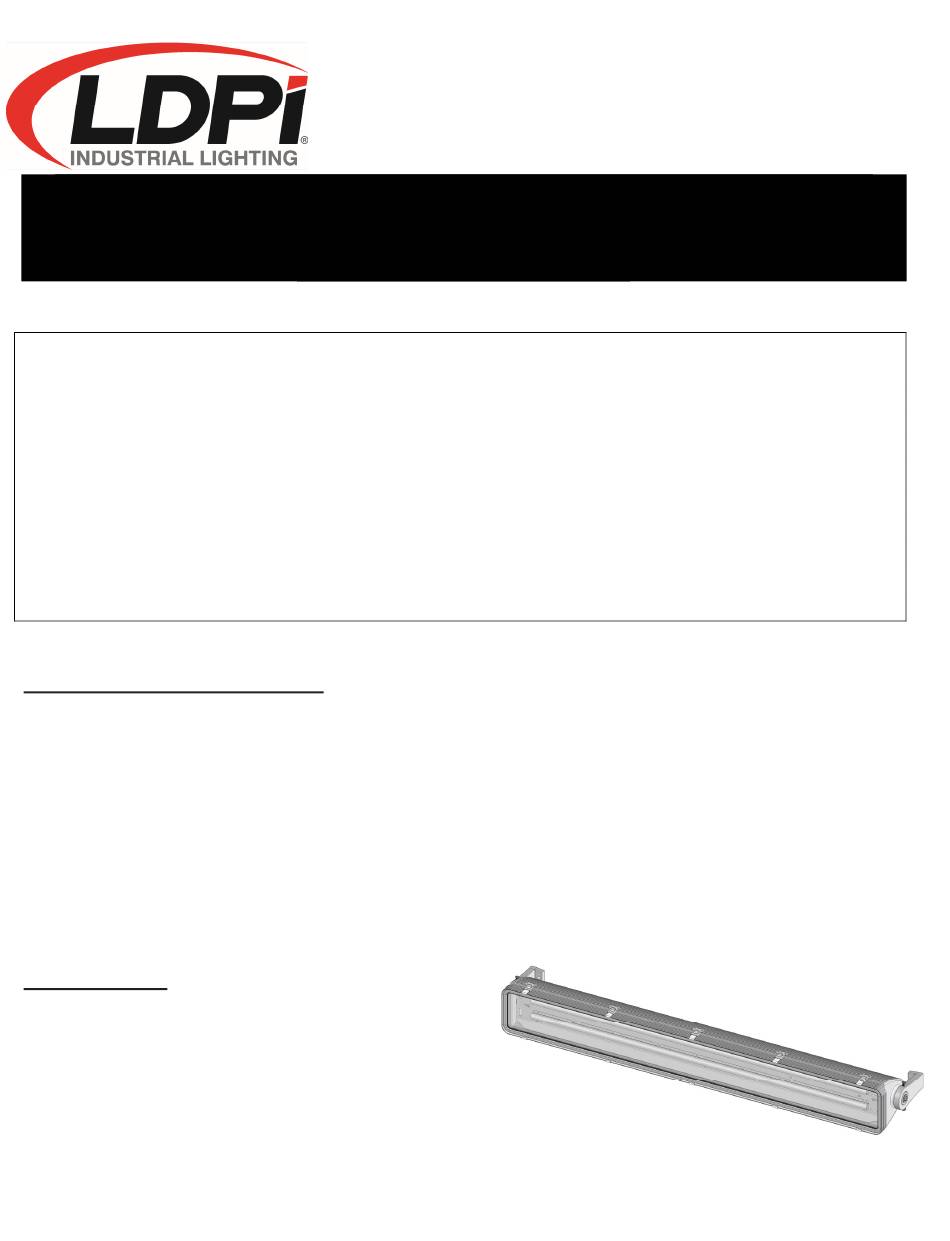

LE384 LED HAZARDOUS LOCATION

1. TO PREVENT THE RISK OF ELECTRICAL SHOCK DEACTIVATE/DISCONNECT

THE POWER SUPPLY BEFORE INSTALLING THE FIXTURE.

THE DRIVER IN THIS FIXTURE IS DESIGNED TO OPERATE ON GROUNDED

NEUTRAL SYSTEMS ONLY.

3. THIS FIXTURE SHOULD BE INSTALLED BY QUALIFIED TECHNICIANS IN

STRICT ACCORDANCE WITH THE NATIONAL ELECTRICAL CODE AND ANY

LOCAL REQUIREMENTS.

Operational Data

1. Operate this fixture at its rated voltage. Do not install where the marked operating temperature

exceeds the ignition temperature of the hazardous atmospheres. See fixture label for data.

2. This fixture is intended to be connected to a properly installed and grounded UL listed junction

box.

Housing

Corrosion resistant, low copper content aluminum

•

Zinc plated latches

•

Adjustable mounting brackets

•

3/4" NPT hub located on each end of fixture

•

Clear acrylic lens – heat and shatter resistant

•

LDPI, Inc. | (800)-854-0021 | www.ldpi-inc.com | sales@ldpi-inc.com

Installation, OPERATION AND

MAINTENANCE INSTRUCTIONS

LIGHTING FIXTURES

WARNING!

D-1341 v08.29.19

Table of Contents

Need help?

Do you have a question about the LE384 LED and is the answer not in the manual?

Page 1 INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS LE384 LED HAZARDOUS LOCATION LIGHTING FIXTURES WARNING! 1. TO PREVENT THE RISK OF ELECTRICAL SHOCK DEACTIVATE/DISCONNECT THE POWER SUPPLY BEFORE INSTALLING THE FIXTURE. THE DRIVER IN THIS FIXTURE IS DESIGNED TO OPERATE ON GROUNDED NEUTRAL SYSTEMS ONLY.
Page 2 Installation CAUTION: Before installing, make sure that the circuit is deactivated. ADJUSTABLE BRACKET STYLE MOUNTING 1. Install fixture to the surface using the 3/8” inch hole that is located on each adjustable bracket mount. (see below) 2. Position the fixture to desired angle, then tighten the two positioning bolts on each bracket to secure the angle.
Page 3 Servicing • To avoid personal injury, disconnect power to the fixture and allow it to cool down before performing maintenance. • Perform visual, electrical, and mechanical inspections on a regular basis. The environment and frequency of use should determine this. However, it is recommended that checks should be made at least once a year.
