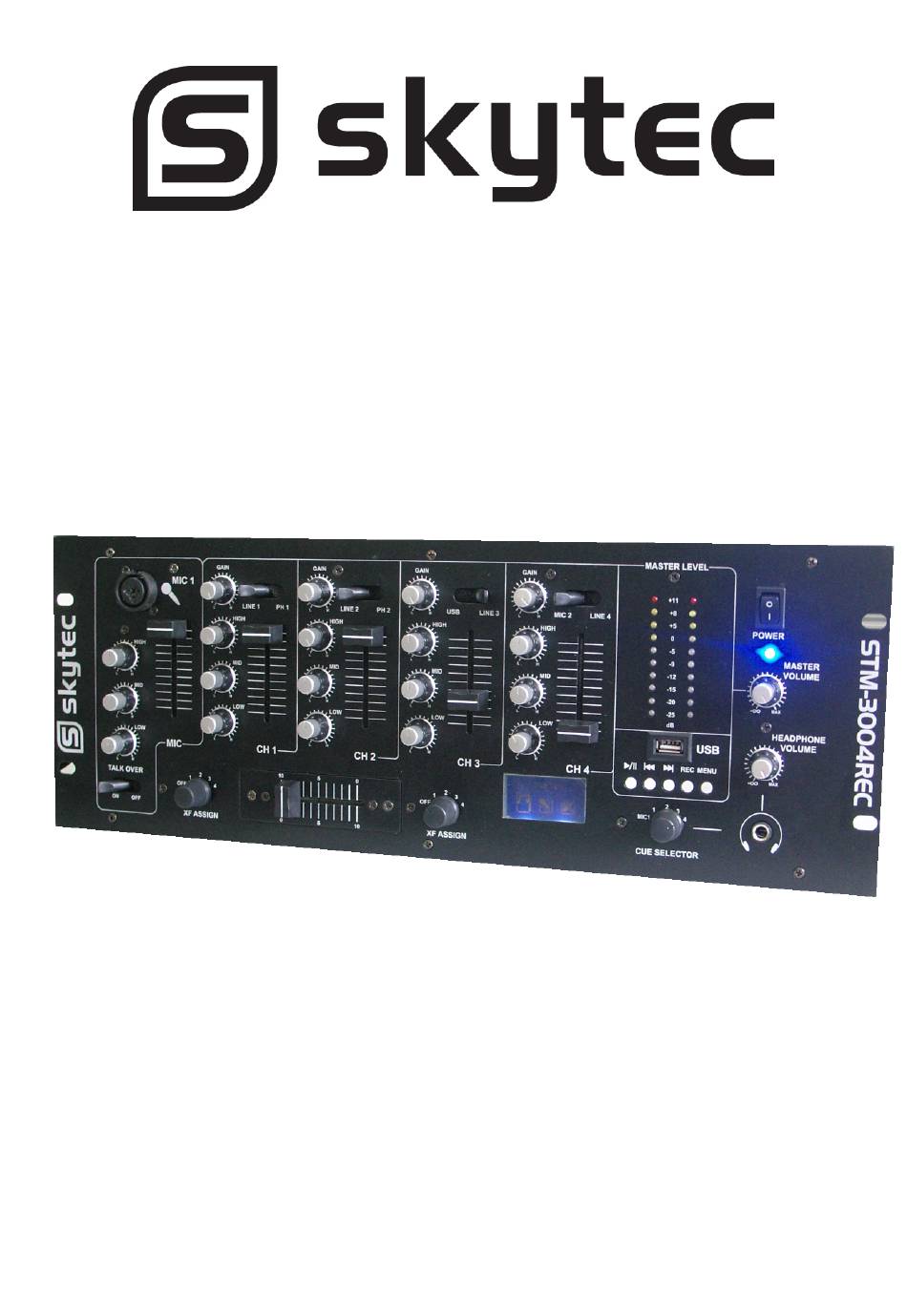

- Page 1 STM-3004REC, Mixer EQ 4 Ch, Record 172.910 USER’S MANUAL...
- Page 3 Key Features STM-3004REC Mixer EQ 4-channel USB/MP3 - Record A 19" 4-channel mixer with USB/MP3 player/recorder allowing you to record your mix on a USB stick. Featuring MP3 control panel, 3-Band equalizer per channel, replaceable and assignable crossfader, Cue monitor function, headphone volume control, two microphone inputs with talkover function and phono/line switches.
- Page 4 FEATURES： 1.MICPHONES: DJ/Mc have their own dedicated level control. microphones have individual 2 band eq section 2.TALKOVER This is a two position switch OFF/ON 3.TRIM CONTROLS Each of the music channels has a rotary trim control. The gain control adjusts the input level allowing the user to reduce or increase the sound level.
- Page 5 13.CUE SELECTOR Select each channel of the CUE signal 14.HEADPHONE 1/4' jack headphone out 15.MP3 MODE This mode can be loading or recording MP3 from the USB stick. 16.MP3 DISPLAYER 17.POWER INPUT Please ensure the correct voltage is selected for your country. Failure to set the correct voltage Will cause damage to the unit.
- Page 6 SPECIFICATIONS: INPUTS: DJ MIC……………………………………………………………………1.5mv/1K Ohm unbalanced Phono…………………………………………………………………………3mv/680 Ohm LINE…………………………………………………………………………….150mv/27K Ohm OUTPUTS: REC………………………………………………………………………………350mv/5K6 Ohm MASTER……………………………………………………………………….0 d B 1V/5K6 Ohm GENERAL: Frequency Response………………………………………………………….20Hz-20KHz THD………………………………………………………………………………………… 0.1% S/N Ratio………………………………………………………………………………….>80 d B Headphone Impedance…………………………………………………………………32 O...
-
Page 7: Ce Declaration Of Conformity
7602 KM - ALMELO Tel : 0031546589299 Fax : 0031546589298 The Netherlands 172.910 Product number: STM-3004REC, Mixer EQ 4 Ch, Record Product Description: Skytec, EN 61558 Regulatory Requirement: EN 55013 EN 55020 EN 61000-3-2/-3-3 The product meets the requirements stated in the above mentioned Standards. This certificate does not cover the aspects that may be relevant such as performance and fitness for purpose. - Page 8 www.tronios.com Copyright © 2013 by TRONIOS the Netherlands...
