Cautions
1.
Make sure power is removed or turned off before installing product.
2.
This product must be installed in accordance with the applicable
installation code by a person familiar with the construction and
operation of the product and hazards involved.
3.
The product must be installed in accordance with the National
Electrical Code and all applicable local codes. Proper grounding is
required for safety.
150W fixture &
Knuckle Slip Fitter

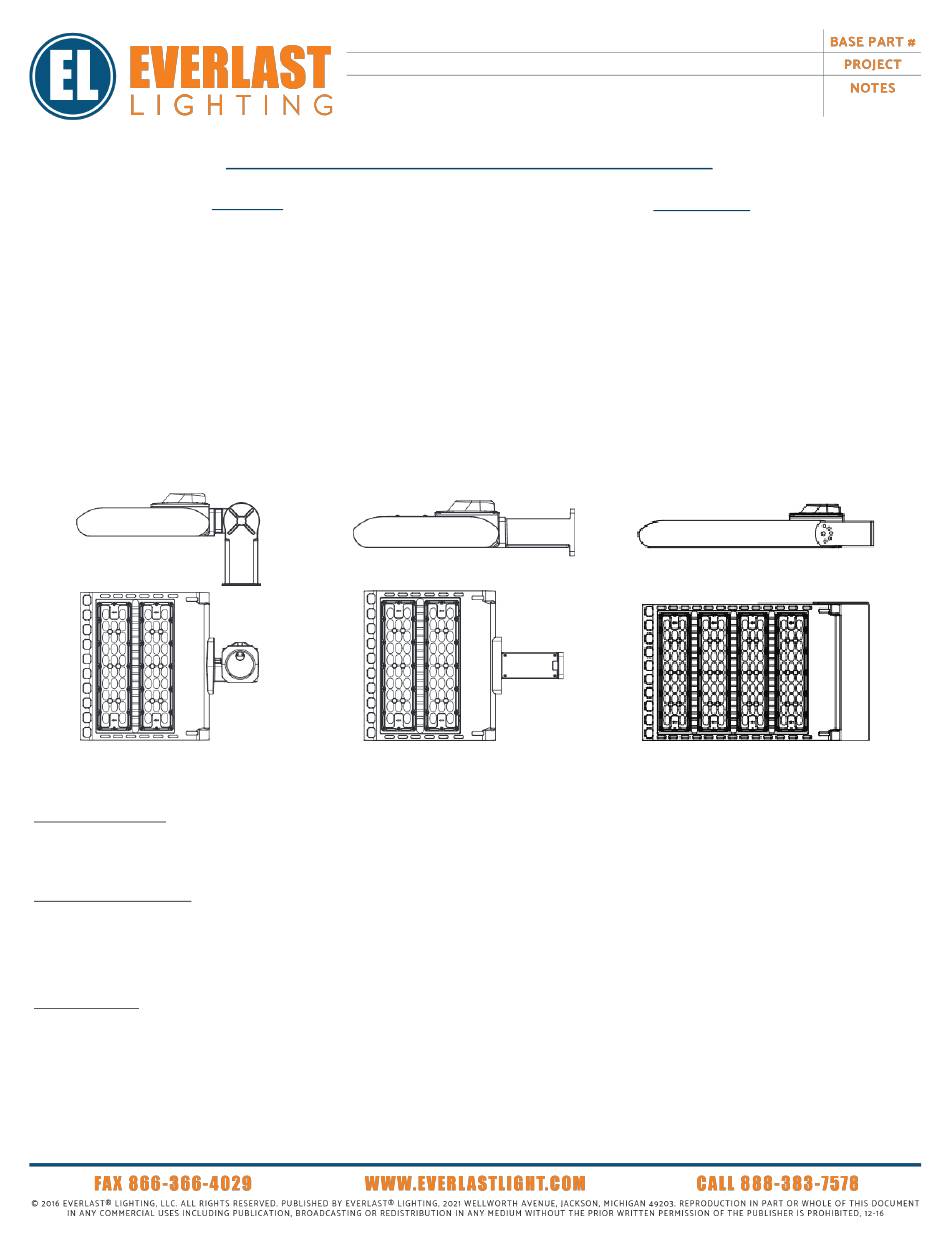

Mounting Instructions
Knuckle Slip Fitter (KSF):
•
Make sure pole is suitable for fixture mounting. Place fixture onto pole and secure using properly rated hardware. If applicable, move adjustable brackets to
desired angle and secure.
Surface Square Mount (SSM):
•
Use printable dimensions or square mount to mark position on mounting surface. Drill holes for mounting fixture and one for passing power cord through.
•
Place power cord through designated hole into mounting surface. Align mounting bracket with corresponding holes, secure bracket to surface using hard-
ware rated for weight of fixture.
Flood Mount (FLM):
•
Use printable dimensions or flood mount to mark position on mounting surface. Drill holes for mounting fixture and one for passing power cord through.
•
Place power cord through designated hole into mounting surface. Align mounting bracket with corresponding holes, secure bracket to surface using hard-
ware rated for weight of fixture.
•
If applicable, move adjustable brackets to desired angle and secure.
2017
Titan Series Installation Instructions
Square Surface Mount
1.
Veillez à ce que le pouvoir est supprimé ou désactivé avant
d'installer le produit.
2.
Ce produit doit être installé conformément au code d'installation
en vigueur par une personne familière avec la construction et
l'exploitation des produits et des risques impliqués.
3.
Le produit doit être conforme au Code électrique National et tous
les codes. Raccordée à la terre est nécessaire pour la sécurité.
200W fixture &
Précautions
300W fixture &
Flood Mount
1
Advertisement
Table of Contents
Summary of Contents for Everlast lighting Titan Series
- Page 1 Titan Series Installation Instructions Cautions Précautions Make sure power is removed or turned off before installing product. Veillez à ce que le pouvoir est supprimé ou désactivé avant This product must be installed in accordance with the applicable d’installer le produit.
- Page 2 Photocell Orientation Instructions Photocell After fixture installation, make sure eye of photocell is orientated properly. • If reorientation is needed, locate North position on photocell receptacle. • Loosen both screws securing receptacle to fixture, rotate receptacle 180 • tighten screws to secure receptacle to fixture. Place photocell into receptacle and turn to lock into position.
- Page 3 Wiring Diagrams Standard 120-277 V LINE Photocell 120-277V AC NEUTRAL (Factory Installed Leads) LOAD Blank Photocell L1-LINE L2-NEUTRAL LINE GROUND - NEUTRAL Driver GROUND LINE NEUTRAL Photocell LOAD On/Off 120-277V AC LINE NEUTRAL (Factory Installed Leads) L2-NEUTRAL LOAD Occupancy Sensor L1-LINE Violet (+) Gray (-)
- Page 4 RED/LINE - (Primary) 347-480 V BLACK/NEUTRAL (Primary) BLUE/LINE - (Secondary) 480v Transformer BLACK/NEUTRAL (Secondary) 120-277V AC (Factory Installed Leads) LINE L1-LINE Photocell NEUTRAL L2-NEUTRAL LOAD Blank Photocell GROUND - LINE NEUTRAL Driver GROUND LINE NEUTRAL Photocell LOAD Bi-Level 120-277V AC LINE NEUTRAL (Factory Installed Leads)
- Page 5 Note any damage (cracking, splitting, peeling, breaks). Contact local sales representative, distributor or EverLast Lighting Inc. if damage replacement is necessary. Hardware Fixture hardware shall be inspected before each cleaning.
- Page 6 Titan Series Bracket Diagrams...
