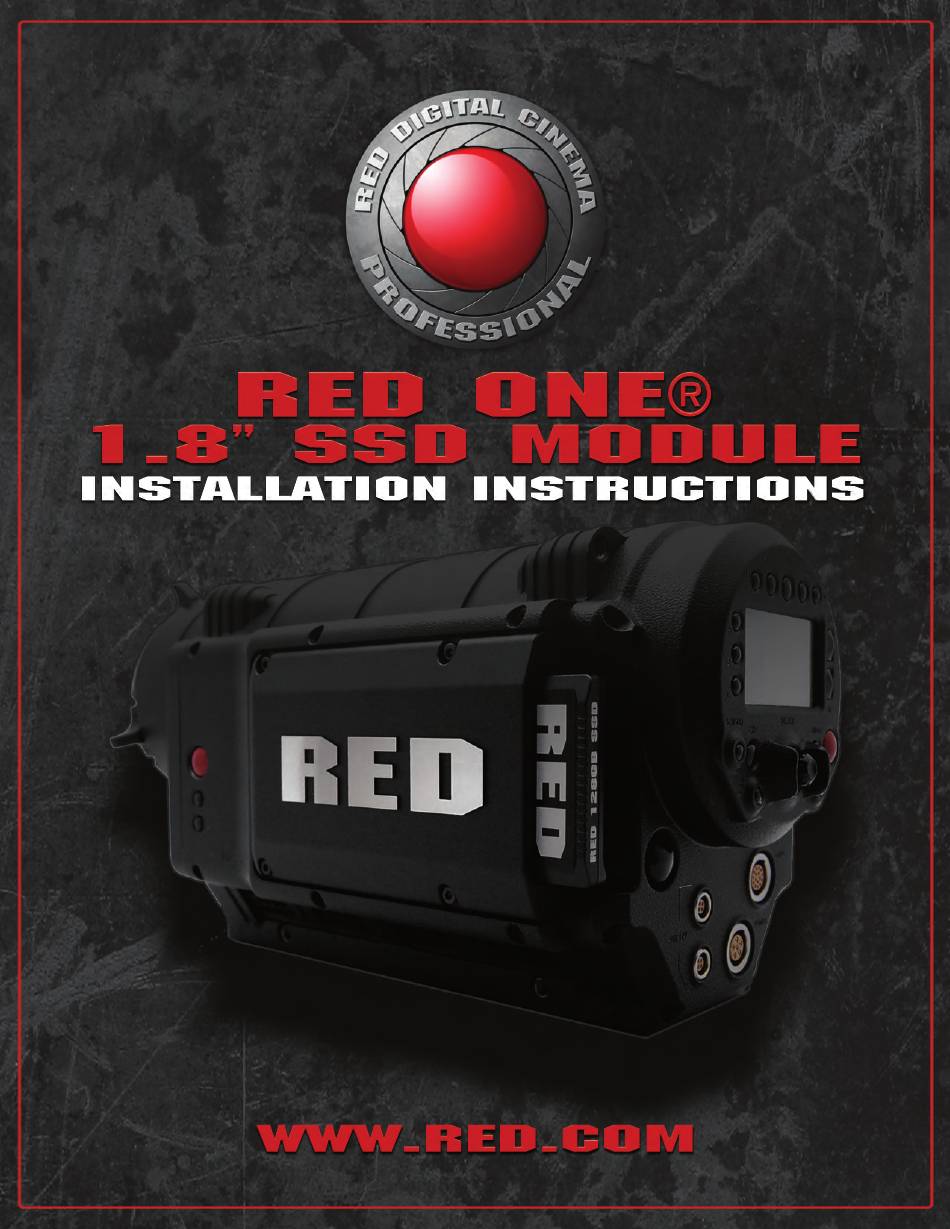

Summary of Contents for RED ONE 1.8 SSD Module
- Page 2 THIS PAGE INTENTIONALLY BLANK...
-
Page 3: Table Of Contents
Hardware ..............................4 New Hardware ..........................4 Existing Hardware ........................... 4 Tools Required ............................4 REMOVING CF MODULE ..........................5 INSTALLING RED ONE 1.8” SSD MODULE ....................7 INSTALLATION VERIFICATION PROCEDURE .................... 9 RED ONE® 1.8” SSD Module Installation Instructions Version 1.0... -
Page 4: Disclaimer
RED. All safety and general information is subject to change as a result of changes in local, federal or oth- er applicable laws. -
Page 5: Japan Statements
JAPAN STATEMENTS EUROPEAN UNION COMPLIANCE STATEMENTS Red declares that the equipment described in this document has been tested is in conformance with the requirements of the European Council EMC Directive 2004/108/EC, Low Voltage Directive 2006/95/EC, RoHS Directive 2002/95/EC and WEEE Directive 2002/96/EC. -
Page 6: Before You Start
RED ONE 1.8” SSD Module IS NOT covered under warranty. If you want RED to perform the installation of the RED ONE 1.8” SSD Module for you, RED will do so free of charge. Please contact your Bombsquad representative for complete details. -
Page 7: Removing Cf Module
REMOVING CF MODULE 1. Place the RED ONE camera body on its side (connector side down) on the protected surface so that the CF Module with the word RED facing you. CF Module 2. Using a 2.5mm Allen wrench, remove the four (4) CF Module Allen Screws. - Page 8 This may damage the harness, connectors, CF Module and/or compo- nents inside the RED ONE camera body. Damage that occurs to your camera, CF Module or SSD Module while installing your RED ONE 1.8” SSD Module IS NOT covered under warranty.
-
Page 9: Installing Red One 1.8" Ssd Module
CAUTION: Ensure the harnesses are not pinched or damaged during installation. 3. Install the existing Allen Screw Lock Washers (4) onto the NEW Allen Screws (4). 4. Install all four (4) Allen Screws and washers into the RED ONE 1.8” SSD Module finger-tight. Install Allen Screws... - Page 10 5. Tighten to specification in a diagonal order. Tighten Allen Screws to 4 in lbs (0.45 N.m) 6. The RED ONE 1.8” SSD Module installation is complete. ©2010 RED.COM, INC. DECEMBER 28, 2010...
-
Page 11: Installation Verification Procedure
LCD and “None Attached” in the lower left corner of the external display(s), ensure you are using an SSD approved by RED for use with the RED ONE. If the SSD is approved for use by RED, recheck the RED ONE 1.8” SSD Module connections.
