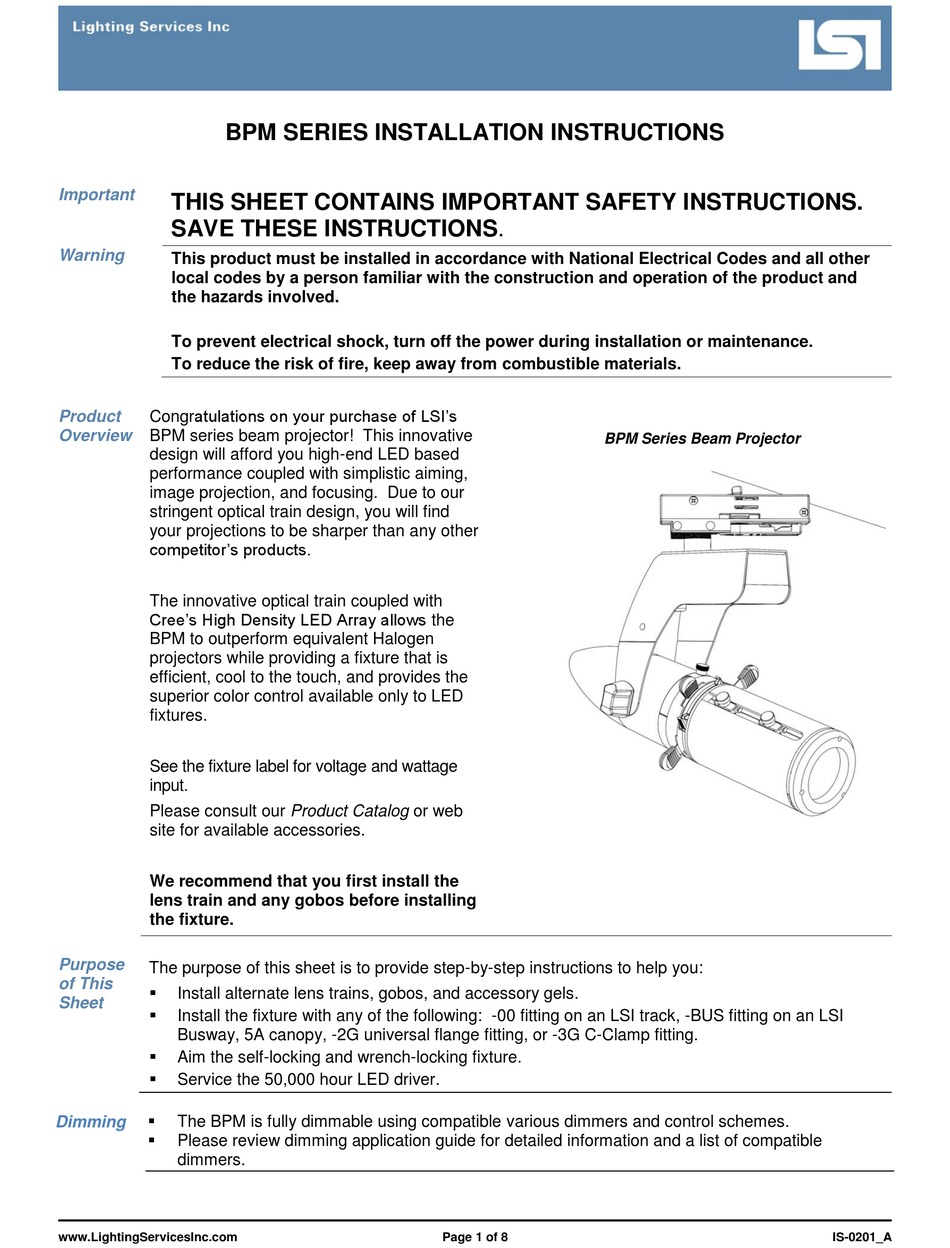

BPM SERIES INSTALLATION INSTRUCTIONS
Important
THIS SHEET CONTAINS IMPORTANT SAFETY INSTRUCTIONS.
SAVE THESE INSTRUCTIONS.
Warning
This product must be installed in accordance with National Electrical Codes and all other
local codes by a person familiar with the construction and operation of the product and
the hazards involved.
To prevent electrical shock, turn off the power during installation or maintenance.
To reduce the risk of fire, keep away from combustible materials.
Congratulations on your purchase of LSI's
Product
Overview
BPM series beam projector! This innovative
design will afford you high-end LED based
performance coupled with simplistic aiming,
image projection, and focusing. Due to our
stringent optical train design, you will find
your projections to be sharper than any other
competitor's products.
The innovative optical train coupled with
Cree's High Density LED Array allows the
BPM to outperform equivalent Halogen
projectors while providing a fixture that is
efficient, cool to the touch, and provides the
superior color control available only to LED
fixtures.
See the fixture label for voltage and wattage
input.
Please consult our Product Catalog or web
site for available accessories.
We recommend that you first install the
lens train and any gobos before installing
the fixture.
Purpose
The purpose of this sheet is to provide step-by-step instructions to help you:
of This
Install alternate lens trains, gobos, and accessory gels.
Sheet
Install the fixture with any of the following: -00 fitting on an LSI track, -BUS fitting on an LSI
Busway, 5A canopy, -2G universal flange fitting, or -3G C-Clamp fitting.
Aim the self-locking and wrench-locking fixture.
Service the 50,000 hour LED driver.
The BPM is fully dimmable using compatible various dimmers and control schemes.
Dimming
Please review dimming application guide for detailed information and a list of compatible
dimmers.
www.LightingServicesInc.com
BPM Series Beam Projector
Page 1 of 8
IS-0201_A
