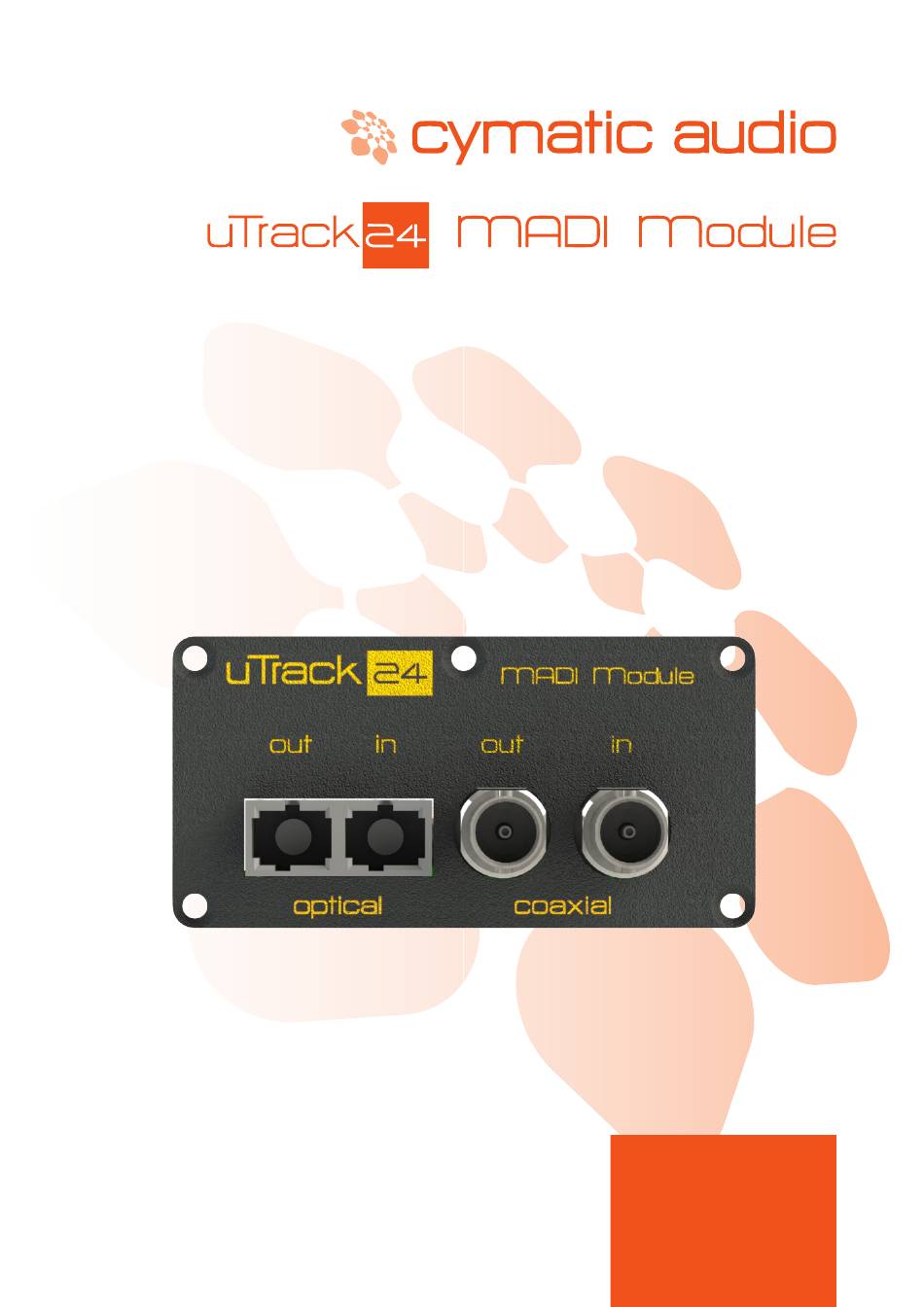

- Page 1 USER‘S MANUAL Version 1 July 2015...
- Page 2 TABLE OF CONTENT INTRODUCTION .....................3 1.1. Features ..........................3 1.2. uTrack24 Required Firmware ....................3 INSTALLATION OF THE UTRACK24 MADI MODULE ...........4 MADI MODULE CONNECTORS ................6 MADI MODULE CONNECTION DIAGRAM ............7 4.1. To Record Multitrack Audio from the Console to the uTrack24 ..........7 4.2.
- Page 3 INTRODUCTION Congratulations on your purchase of the uTrack24 MADI Module! This user-installable option card allows you to integrate your uTrack24’s multi-channel audio input and output with any standard MADI system. With the uTrack24 MADI Module, you can patch your uTrack24’s inputs and outputs into MADI equipped live sound consoles, stage boxes, installed sound systems and more.
- Page 4 INSTALLATION OF THE UTRACK24 MADI MODULE In order for the MADI Module to operate correctly, your uTrack24 must be updated to the latest firmware version. Unplug the power cable before installing the MADI Module. Open the 5 screws of the digital slot. Remove the digital blind panel.
- Page 5 Align the MADI Module with the module guides, then push it all the way into the internal connector socket. Tighten the 5 screws again. Do not use too much force, in order to prevent the screws from breaking. Power up the uTrack24. When the MADI Module is recognized, two new menus are now present: •...
- Page 6 MADI MODULE CONNECTORS The MADI Module contains two separate sets of inputs and outputs, one set in fiber-optic format and the other set in coaxial format. The optical connectors use a Duplex SC style fiber connector, and are best used with multimode fiber cables using either of the following properties: •...
- Page 7 MADI MODULE CONNECTION DIAGRAM 4.1. To Record Multitrack Audio from the Console to the uTrack24 • Connect a MADI cable from the MADI output of the mixing console to the MADI input of the uTrack24 MADI Module. • Set the uTrack24’s MADI input to use the physical port you are connecting to from the console (either coaxial or optical) •...
- Page 8 Cymatic Technologies B.V. P.O. Box 208 6590 AE Gennep The Netherlands www.cymaticaudio.com Support: For Europe: support-EMEA@ cymaticaudio.com Rest of the world: support@cymaticaudio.com USER‘S MANUAL © copyright 2015 Cymatic Audio B.V. Version 1 July 2015...
