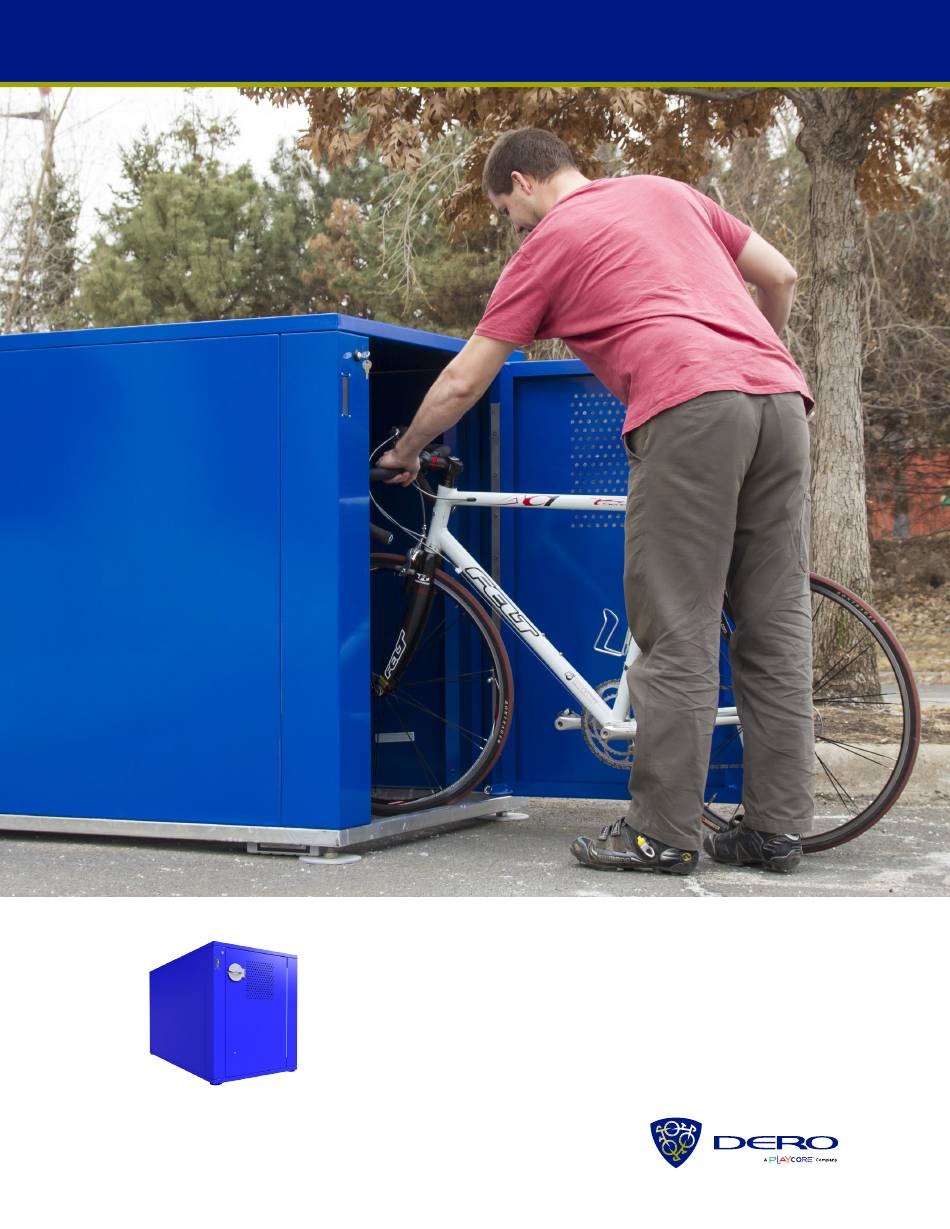

- Page 1 D E RO BI K E LO CK ER™ Maximum Security The Dero Bike Locker™ is bike security at its best. Ideal for long-term parking, its steel construction makes sure thieves stay out. Multiple locking options and all standard powder coat color options are available. Ships flat to save you money.
- Page 2 D E RO BI K E LO CK ER™ LOCKING OPTIONS U-lock/Padlock Handle Keyed Lock CONFIGURATIONS Single-Sided Double-Sided FINISH OPTIONS Galvanized Powder Coat White Black Light Gray Deep Red Yellow RAL 7042 RAL 3003 RAL 1023 CNH Bright Yellow Orange Blue Sky Blue Hunter Green...
- Page 3 DERO BIKE LOCKER™ Submittal Sheet CAPACITY 1-2 Bikes depending on configuration 40” MATERIALS Base: 1.5” x 14g square tube Corners: 14g plate Sides: 18g plate Doors: 16g plate Top: 18g plate 48” Optional Divider: 14g aluminum sheet FINISHES Galvanized An after fabrication hot dipped galvanized finish is our 76”...
- Page 4 DERO LOCKER Setbacks Allow 60” clearance from door face. 60” www.dero.com 1-888-337-6729 © 2017 Dero...
-
Page 5: Installation Instructions
DERO BIKE LOCKER™ Installation Instructions TOOLS NEEDED RECOMMENDED BASE MATERIAL Hammer drill with 3/8” x 6+ masonry bit Solid concrete is the best base material for installation. Hammer To ensure the proper anchors are shipped with your Bubble level rack, ask your Dero representative which anchor is Tape measure appropriate for your application. - Page 6 DERO BIKE LOCKER™ Installation Instructions Attach roof with (22) 3/8” x ¾” bolts and washers. For single lockers, attach the back piece with Check that all corners are coincident with the (8) ¼” x ½” button-head bolts and toothed nuts base corners and tighten the 3/8”...
- Page 7 DERO BIKE LOCKER™ Installation Instructions Strike Lock Lock Plate Shaft Collars Latch Bar 5/16” Nuts Check to see that the latch bar is holding the door Check to see that the latch strike is smoothly shut without the door being held shut too tight or engaging the lock.
