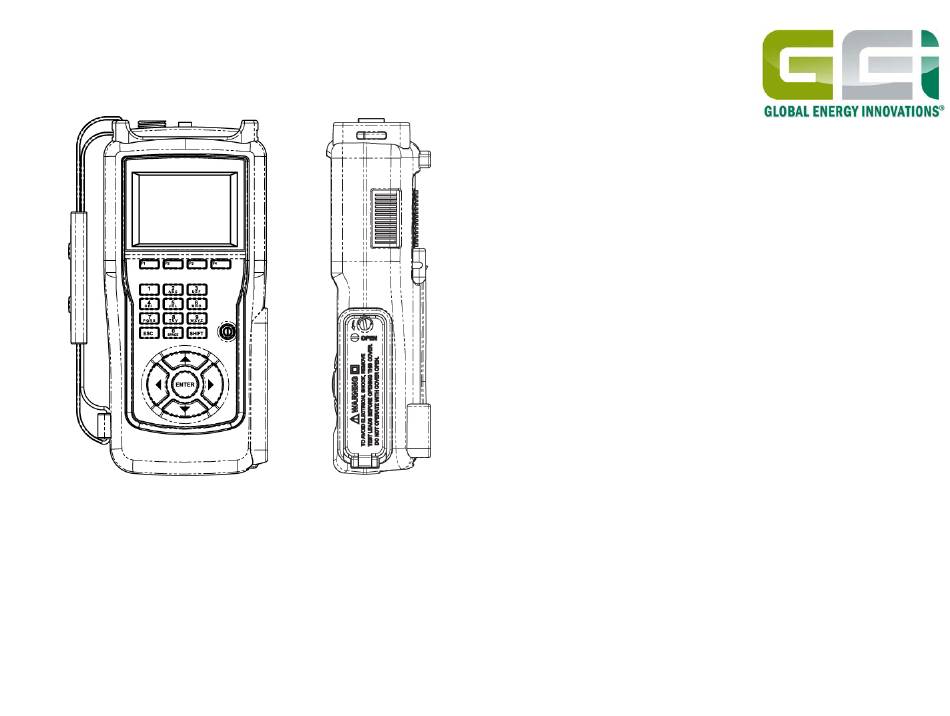

- Page 1 Global Energy Innovations EC1000 & EC2000 Handheld Battery Analyzers Getting Started / Quick Start Guide May 2010 Revision 1.0.0 © 2009-2010 Global Energy Innovations, All rights reserved. Printed in the USA. All product names are trademarks of the respective companies. Document: EN-1005-1003...
- Page 2 Unauthorized Service or Modification. Defects or damages resulting from service, testing, adjustment, installation, maintenance, alteration, including without limitation, software changes, or modification in any way by someone other than Global Energy Innovations, or its authorized service centers, are excluded from coverage.
- Page 3 Who is covered? This warranty extends only to the first consumer purchaser, and is not transferable. What will Global Energy Innovations Do? Global Energy Innovations, at its option, will at no charge repair, replace or refund the purchase price of any Products, Accessories or Software that does not conform to this warranty.
- Page 4 Laws in the United States and other countries preserve for Global Energy Innovations certain exclusive rights for copyrighted Global Energy Innovations software such as the exclusive rights to reproduce and distribute copies of the Global Energy Innovations software. Global Energy Innovations software may only be copied into, used in, and redistributed with, the Products associated with such Global Energy Innovations software.
-
Page 5: Table Of Contents
™ ™ Global Energy Innovations – EC1000 & EC2000 Handheld Battery Analyzers Getting Started / Quick Start Guide Table of Contents TABLE OF CONTENTS LIMITED WARRANTY & LIMITATION OF LIABILITY ....................................i TABLE OF CONTENTS ............................................1 SETTING STARTED / QUICK START GUIDE ......................................2 ANALYZER SETUP .............................................. -
Page 6: Setting Started / Quick Start Guide
Power Generation, Telecommunication, UPS, Transportation, Solar and other industries where accurate knowledge of battery health is critical. This Getting Started / Quick Start Guide is used to get a speedy understanding of how to use the basic features of the Analyzers. For a complete guide to the EC1000™ and EC2000™... -
Page 7: Test Configurations
™ ™ Global Energy Innovations – EC1000 & EC2000 Handheld Battery Analyzers Getting Started / Quick Start Guide Getting Started / Quick Start Guide 7. Select SYSTEM SETTINGS and press ENTER. 8. Set the Time and Date and Temperature Format. - Page 8 ™ ™ Global Energy Innovations – EC1000 & EC2000 Handheld Battery Analyzers Getting Started / Quick Start Guide Getting Started / Quick Start Guide TEST CONFIGURATION ANALYZER BRIEF DESCRIPTION OF TEMPLATE TEMPLATE SCREEN Quick Tests are the easiest test to set up on the Analyzer.
- Page 9 ™ ™ Global Energy Innovations – EC1000 & EC2000 Handheld Battery Analyzers Getting Started / Quick Start Guide Getting Started / Quick Start Guide This is not really a template, however, it has been included in the Test Configuration Template section because you can...
-
Page 10: Testing
™ ™ Global Energy Innovations – EC1000 & EC2000 Handheld Battery Analyzers Getting Started / Quick Start Guide Getting Started / Quick Start Guide This template is used for setting up different Test Settings that will later be used in Quick Test and Sting TEST SETTINGS Configurations. - Page 11 ™ ™ Global Energy Innovations – EC1000 & EC2000 Handheld Battery Analyzers Getting Started / Quick Start Guide Getting Started / Quick Start Guide Screen 1 – Select the Site to test. Screen 2 – Select the String to test.
-
Page 12: Test Results
™ ™ Global Energy Innovations – EC1000 & EC2000 Handheld Battery Analyzers Getting Started / Quick Start Guide Getting Started / Quick Start Guide Test Results After you have completed testing on a string regardless of if the string is locked (you have completed the test exit sequence), you can view your Test Results by selecting TEST RESULTS from the MAIN MENU. -
Page 13: Other Analyzer Featuers And Functions
™ ™ Global Energy Innovations – EC1000 & EC2000 Handheld Battery Analyzers Getting Started / Quick Start Guide Getting Started / Quick Start Guide After you have acquired data in the field you will want to connect your Analyzer to your Personal Computer (PC) to communicate with IBMS™. Follow the simple steps below to connect with IBMS™. - Page 14 ™ ™ Global Energy Innovations – EC1000 & EC2000 Handheld Battery Analyzers Getting Started / Quick Start Guide Getting Started / Quick Start Guide 3. Next, navigate to the TOOLS screen. Repeatability Testing and Master Reset are described below in detail and may be used during testing. These are presented here for completeness, however, they are not part of the setup of the Analyzer.
