- Page 1 WS09 WS09 Series Water Sensor Portable Measuring Device for Moisture Content in Oil W S 0 9 O p e r a t i n g I n s t r u c t i o n s IMSIWS09...
-
Page 2: Table Of Contents
WS09 WS09 Series W AT E R S E N S O R s erv ic e i n s t r u c t i o n s GENERAL - Warnings, cautions and notes - Safety instructions - Environmental aspects... -
Page 3: General
Features Safety instructions General Safety Instructions The Pall WS09 Series water sensor is a hand held, monitoring • Excessive mechanical loads and incorrect usage solution for measuring dissolved water content in hydraulic, should always be avoided. -
Page 4: Introduction

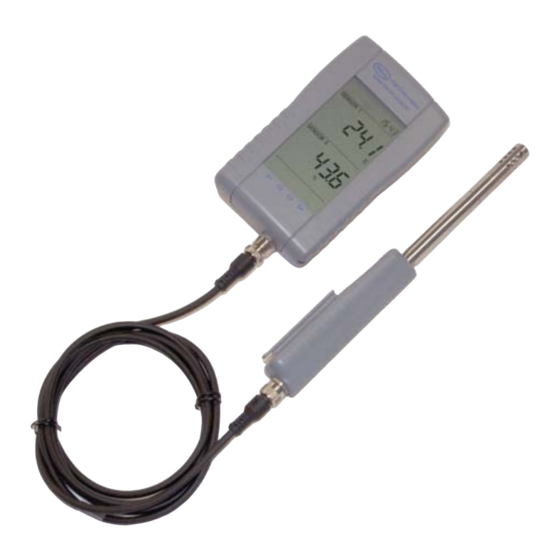

INTRODUCTION SPECIFICATION The Pall WS09 Hand Held Water sensor was designed for the Dimensions: 85 mm W X 145 mm L X 37 mm D measurement of water content in hydraulic, lubricating and (3.3"... -
Page 5: Probe Installation
PROBE INSTALLATION OPERATION The sensor probe connects to the WS09 box with a threaded In contrast to conventional hand-held connector. instruments, the WS09 does not have... -
Page 6: The Lower Menu
WS09 WS09 Series W AT E R S E N S O R s erv ic e i n s t r u c t i o n s The lower menu Calibration There are two methods of % saturation calibration. One... -
Page 7: Two Point Calibration
To display the water content in PPM for a specific fluid, four discs. parameters, C1 to C4 must be set. To obtain values for these parameters, contact Pall Corporation. The factory default settings for these parameters is C1=1; C2=1; C3=1; C4=1. CHANGING THE BATTERY The oil specific parameter C1 (-5000...500) can be set with... -
Page 8: Declaration Of Conformity
MEASURING DEVICE FOR MOISTURE IN OIL PRODUCT PART NUMBER: WS09 SERIAL NUMBER: SEE NAMEPLATE On behalf of Pall Europe Ltd, we hereby declare that the above product complies with the following transposed harmonised standards:- BSEN ISO 12100-2:2003 Safety of Machinery – Basic Concepts BSEN60204-1:2006 Safety of Machinery –... -
Page 9: Trademarks And Intellectual Property
12. TRADEMARKS AND INTELLECTUAL LIABILITY PROPERTY Pall does not accept warranty and liability claims either upon The design of this equipment, software and supporting this publication or in case of improper treatment of the documentation is the intellectual property of Pall Europe Ltd described products. - Page 10 WS09 WS09 Series W AT E R S E N S O R s erv ic e i n s t r u c t i o n s Notes...
- Page 11 WS09 WS09 Series W AT E R S E N S O R s erv ic e i n s t r u c t i o n s Notes...
- Page 12 +44 (0)23 9230 2507 Visit us on the Web at www.pall.com Pall Corporation has offices and plants throughout the world. For Pall representatives in your area, please go to www.pall.com/contact Because of technological developments related to the products, systems, and/or services described herein, the data and procedures are subject to change without notice.
