molex MFE LOCKING KIT Installation Instructions

Advertisement

1.0 SCOPE

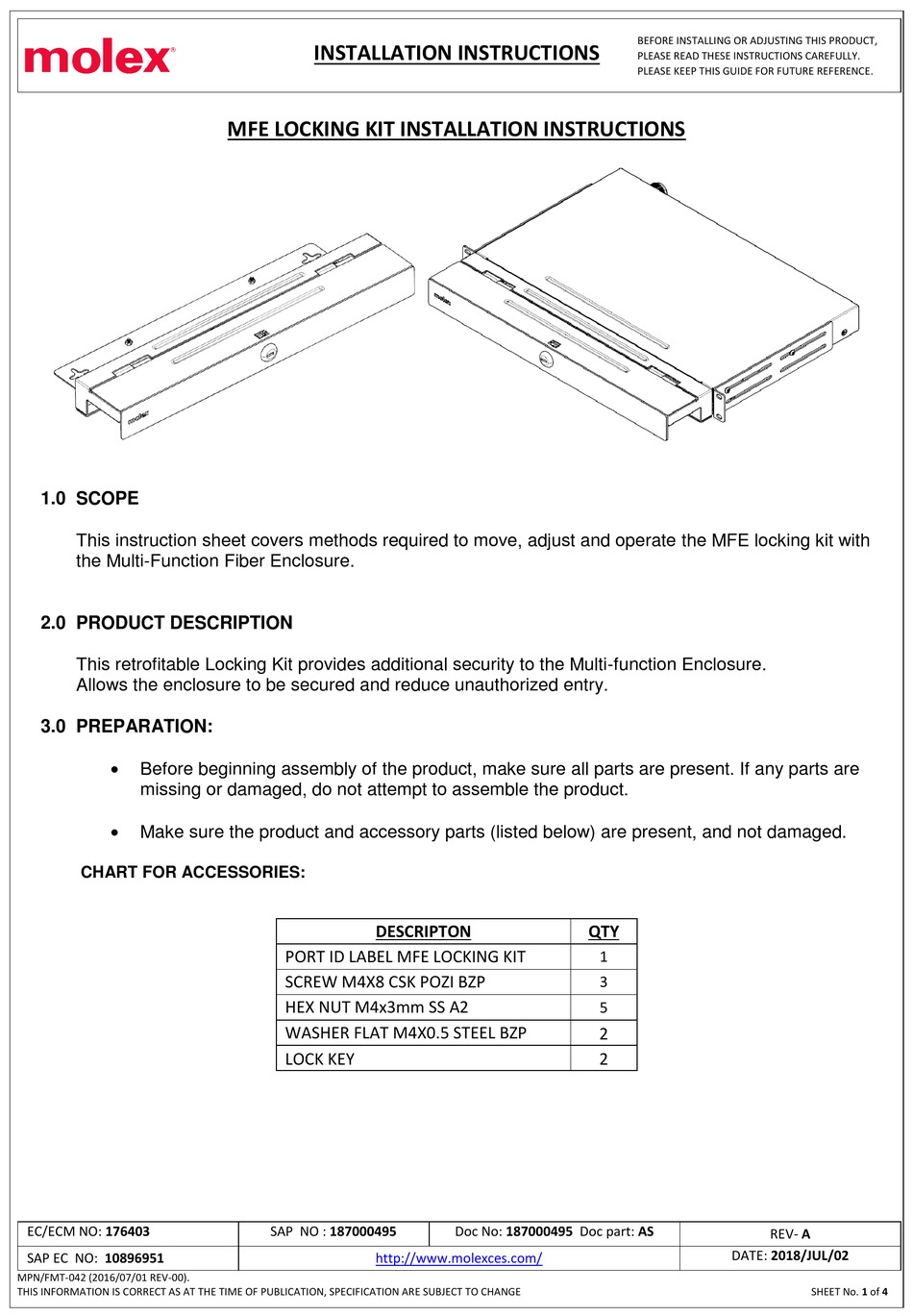

This instruction sheet covers methods required to move, adjust and operate the MFE locking kit with
the Multi-Function Fiber Enclosure.

2.0 PRODUCT DESCRIPTION

This retrofitable Locking Kit provides additional security to the Multi-function Enclosure.
Allows the enclosure to be secured and reduce unauthorized entry.

3.0 PREPARATION:

Before beginning assembly of the product, make sure all parts are present. If any parts are
missing or damaged, do not attempt to assemble the product.
Make sure the product and accessory parts (listed below) are present, and not damaged.
CHART FOR ACCESSORIES:
EC/ECM NO: 176403
SAP EC NO: 10896951
MPN/FMT-042 (2016/07/01 REV-00).
THIS INFORMATION IS CORRECT AS AT THE TIME OF PUBLICATION, SPECIFICATION ARE SUBJECT TO CHANGE
INSTALLATION INSTRUCTIONS
MFE LOCKING KIT INSTALLATION INSTRUCTIONS
DESCRIPTON
PORT ID LABEL MFE LOCKING KIT
SCREW M4X8 CSK POZI BZP
HEX NUT M4x3mm SS A2
WASHER FLAT M4X0.5 STEEL BZP
LOCK KEY
SAP NO : 187000495
http://www.molexces.com/
QTY
1
3
5
2
2
Doc No: 187000495 Doc part: AS
BEFORE INSTALLING OR ADJUSTING THIS PRODUCT,
PLEASE READ THESE INSTRUCTIONS CAREFULLY.
PLEASE KEEP THIS GUIDE FOR FUTURE REFERENCE.
REV- A
DATE: 2018/JUL/02
SHEET No. 1 of 4
