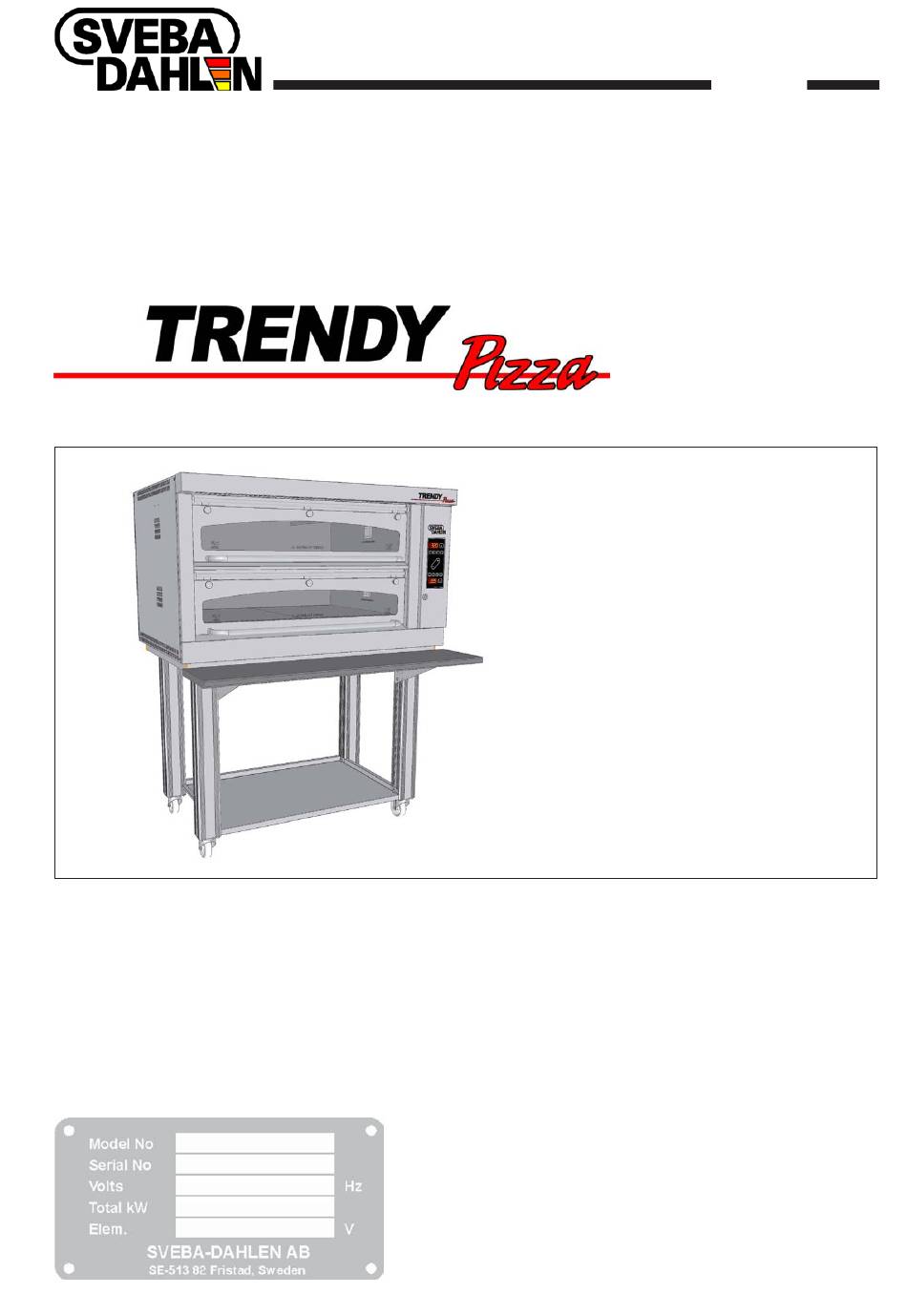

- Page 1 860045-02 Rev.4 Operating Maintenance Installation...
- Page 2 Please direct all your questions, comments or technical problems regarding this product to the SVEBA-DAHLEN dealer or directly to SVEBA-DAHLEN AB SE-513 82 Fristad Sweden Tel. +46 33 151500 Fax +46 33 151599 Web: www.sveba-dahlen.se Mail: info@sveba-dahlen.se Subject to changes without notice Operating Maintenance Installation Trendy Pizza 4:3543-2 --> 860045-02...
-
Page 3: Table Of Contents
Service ....... . . 23 Operating Maintenance Installation Trendy Pizza... -
Page 4: Introduction

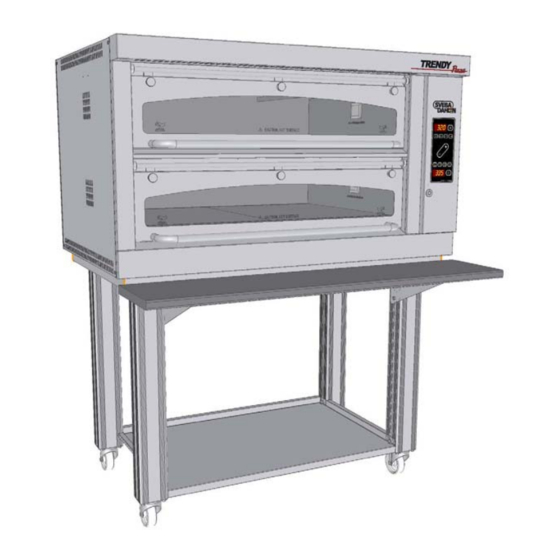

TRENDY PIZZA is a completely new developed pizza oven from Sveba-Dahlen. The oven design is compact, sturdy and excellent for the busy rush hours. Trendy Pizza has a big capacity on a small foot print and is provided with a unique, new developed computer panel especially designed for Sveba-Dahlen. -
Page 5: Important
The oven must be connected via an external main switch with min. 3mm gap. Exchange of the connection cable must be done by an authorized electrician. Operating Maintenance Installation Trendy Pizza 4:3543-2 --> 860045-02... -
Page 6: Dimensions
Dimensions Trendy Pizza Operating Maintenance Installation Trendy Pizza 4:3543-2 --> 860045-02... -
Page 7: First Start Of The Oven
Some power suppliers debit high penalty charges for subscribers exceeding the consumption agreed upon. For these customers the controlling of the Trendy Pizza is the perfect solution, as it is possible to programme the oven to consume only a certain amount of power. -
Page 8: Electrical Connection
50 mm. Circuit breakers Evacuation The Trendy Pizza oven is designed to be connected to an exhaust pipe with mechanical ventilation. The oven is prepared to be connected to a ø125 mm exhaust pipe. -
Page 9: P-Panel
Increase/decrease button (common) Push button for front heat Illuminated push button for temperature Push button for top heat On Off button for lower deck Push button for bottom heat Display for lower deck Operating Maintenance Installation Trendy Pizza 4:3543-2 --> 860045-02... -
Page 10: Initial Position
Initial position The panel is off, all functions are switched off, both displays indicates OFF. Operating Maintenance Installation Trendy Pizza 4:3543-2 --> 860045-02... -
Page 11: Start Of Oven
NOTE: When starting the first time or after power failure the text ”E4” is blinking in the display. This means that the clock in the panel must be adjusted, see section ”Setting of real time”. Operating Maintenance Installation Trendy Pizza 4:3543-2 --> 860045-02... -
Page 12: Built-In Current Delimiter
The oven is fitted with an automatic turbo function. If the difference between and pre-set and real temperature is larger than a value set in the service menu, all heating elements will be given full power to quickly regain the correct working temperature. Operating Maintenance Installation Trendy Pizza 4:3543-2 --> 860045-02... -
Page 13: Baking
During bake the temperature symbol lights up when controller calls for heat. If one oven chamber is disconnected by the current delimiter, the temperature symbol is flashing. The flashing stops when the current delimiter ceases. seven Operating Maintenance Installation Trendy Pizza 4:3543-2 --> 860045-02... -
Page 14: Setting Of Real Time
6. Change minute with the + + + + + and - - - - - keys. If no key is pressed for four seconds the display switches back to real temperature. Operating Maintenance Installation Trendy Pizza 4:3543-2 --> 860045-02... -
Page 15: Setting Of Week Timer
1 1 1 1 1 .22 If no key is pressed for four seconds the display switches back to temperature. Day 1 = Monday, Day 2 = Tuesday and so on... Operating Maintenance Installation Trendy Pizza 4:3543-2 --> 860045-02... -
Page 16: Entering Serviceparameter
Settings in the service menu can only be made by a qualified person, authorized by Sveba-Dahlen AB. Incorrect setting of the service parameters may cause bad baking results or non- function of the oven. Operating Maintenance Installation Trendy Pizza 4:3543-2 --> 860045-02... -
Page 17: Parameters
Temperatur probe error bottom oven room Check sensor and connection Error internal temp. comp. Replace P-panel Power failure Reset the clock Service timer alarm Contact an authorized service technician Error in parameter memory Replace P-panel Test not passed Replace P-panel Operating Maintenance Installation Trendy Pizza 4:3543-2 --> 860045-02... - Page 18 Operating Maintenance Installation Trendy Pizza 4:3543-2 --> 860045-02...
-
Page 19: Baking Tips
At rush hours the top- and bottom heat can be increased. The el load of the ovens is amply sufficient and consequently the oven quickly reaches full power again. Operating Maintenance Installation Trendy Pizza 4:3543-2 --> 860045-02... -
Page 20: Recipe
Trendy Pizzaoven at 320° C with upper heat 8, lower heat 2-4 and front heat 9 for 3,5-4,5 minutes. Put some olive oil at the edges and sprinkle with some oregano. This is an original pizza, but you can put anything you like on it. Enjoy your meal! Operating Maintenance Installation Trendy Pizza 4:3543-2 --> 860045-02... -
Page 21: Trouble Shooting
See the parameter P17 The oven bakes uneven front/rear One or two elements are broken Change broken elements The oven door gasket seals badly Change the oven door gasket See also "Trouble shooting" Operating Maintenance Installation Trendy Pizza 4:3543-2 --> 860045-02... -
Page 22: Maintenance
Bend the lamp glass with caution, use a knife or a screwdriver. The halogen lamp can now easily be changed. Do not touch with your fingers directly on the new lamp. Fat from the fingers may shorten the life of the lamp. Use clean gloves or hold the lamp with a paper. Operating Maintenance Installation Trendy Pizza 4:3543-2 --> 860045-02... -
Page 23: Service
EVERY 12 MONTH Checking and adjusting: Cleaning: Door gasket Oven chamber Door glass mount Doorglass Lightning, including cables Lamps Stone soles Tensioning of connections Element Door spring Function control Ambient temperature control Operating Maintenance Installation Trendy Pizza 4:3543-2 --> 860045-02... - Page 24 Company SE-513 82 FRISTAD 033-15 15 00 Address Phone no. Declare under sole responsibility that the Trendy Pizza Oven , are in conformity with following standards or other normative documents following the provisions in the COUNCIL’S DIRECTIVES: -of May 3 1989 ”relating to electromagnetic compatibility” 89/336/ EEC, and applicable supplements.
