Summary of Contents for Idrotech CNS AIR SYSTEM 3

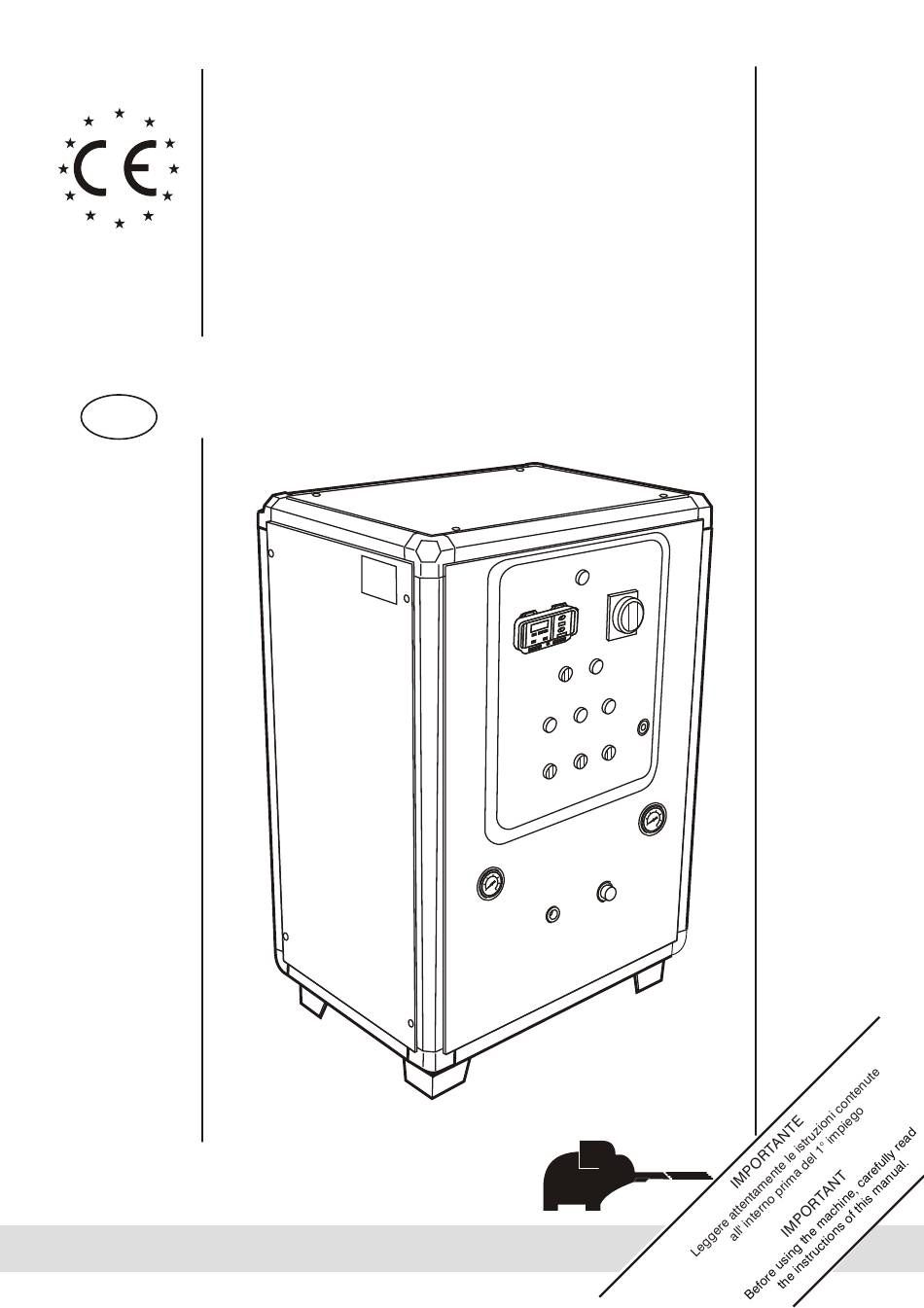

- Page 1 C.N.S. NEBULIZATION SYSTEM AIR SYSTEM USE AND MAINTENANCE MANUAL Ed. 01.2001 ® IDROTECH LIB.0005 TECNOLOGIE DEL PULITO CLEANING TECHNOLOGIES...
- Page 2 The best cleaning solutions for a healthy Company ® IDROTECH CLEANING TECHNOLOGIES A valuable choice!
- Page 3 The descriptions and illustrations contained in this manual are indicative. IDROTECH has the right to update the production at any time, or to modify the elements, details...
-
Page 5: Table Of Contents
® IDROTECH Ed. 01.97 Contents 1) General warnings............. pag. 2 2) Identification of the machine..........pag. 3 3) Warning plates..............pag. 3 4) The manufacturer is not liable in the following cases..pag. 5 5) Diagram of the system............. pag. 6 6) Technical data.............. -
Page 6: General Warnings
® IDROTECH Ed. 01.97 GENERAL WARNINGS This manual serves to guarantee the correct use and maintenance of the machine. We advise to follow thoroughly the instructions of this manual, because the manufacturer is not liable for the damages caused to people, things, or to the machine, if it has not been correctly used in compliance with the maintenance and safety prescriptions. -
Page 7: Identification Of The Machine
Ed. 01.97 34 35 Identification of the machine The machine is equipped with a manufacturer's plate indicating: LEGAL NAME SERIAL NUMBER IDROTECH S.r.l. MANUFACTURING YEAR Via dell’industria, 25 35010 Borgoricco (PD) ITALY Tel. (049) 9335136 - Fax (049) 9335645 MODELLO MATRICOLA... - Page 8 ® IDROTECH Ed. 01.97 3536 It is absolutely forbidden to perform checks or maintenance operations when the machine is on or under tension; ALWAYS DISCONNECT IT FROM THE MAINS!!! Avoid placing the machine where the temperature is rigorous: the ice could damage the high pressure pump and the pipings.
-
Page 9: The Manufacturer Is Not Liable In The Following Cases
® IDROTECH Ed. 01.97 36 37 THE MANUFACTURER IS NOT LIABLE IN THE FOLLOWING CASES The manufacturer is not liable in the following cases: - Improper use of the machine, or if the machine has been used by unskilled personnel;... - Page 10 ® IDROTECH Ed. 01.97 3738 SCHEMA IMPIANTO DI NEBULIZZAZIONE TIPO AIR INLET AIR SYSTEM UNIT AIR FEEDING LINE NEBULIZING PRODUCT FEEDING LINE POWER SUPPLY LINE The compressor (ONLY FOR ROTATING STATION) is not provided with the system SUCTION OF THE NEBULIZING...
-
Page 11: Technical Data
INSTALLED VOLTAGE TANK MAX. N° OF MODEL HORSEPOWER CAPACICTY 50Hz CAPACITY FED NOZZLES CNS AIR SYSTEM 3 200 W 15 bar 100 l/h 230 V~ CNS AIR SYSTEM 4 200 W 100 l/h 230 V~ 15 bar DIMENSIONS AND WEIGHT... -
Page 12: Legend
® IDROTECH Ed. 01.97 3839 9 10 11 12 Fig. 3 Legend WEEKLY TIMER + REST/WORK RELAY AIR SOLENOID VALVE UNIT LINE TENSION PILOT LAMP WATER PRESSURE SWITCH MAIN SWITCH WATER SOLENOID VALVE GROUP AIR/WATER MISSING PILOT LAMP FEEDING CABLE... - Page 13 ® IDROTECH Ed. 01.97 3940 PRECAUTIONS AND SAFETY DEVICES To obtain the best efficiency of the pump, it is absolutely forbidden to let circulate liquid with sand or other solid particles because they could damage the functioning of the machine.
- Page 14 ® IDROTECH Ed. 01.97 4041 PRECAUTIONS AND SAFETY DEVICES Chemical products must be used accurately to avoid polluting the environment. It is forbidden to install the machine near inflammable products (pay attention to the environments containing particles suspended in the air as plastic, resine, acids, inks, etc.)
- Page 15 ® IDROTECH Ed. 01.97 4142 PRECAUTIONS AND SAFETY DEVICES Do not use the machine where there are gaseous emanations. When it is functioning, the machine must not be covered. INSTALLATION The machine is packed in a protective covering that has to be removed with the relevant tools.
- Page 16 ® IDROTECH Ed. 01.97 4041 TANK FOR CHEMICAL PRODUCT CONNECTION AND INSTALLATION Fig. 4 FIXED NOZZLE (Y) ROTATING NOZZLE FITTING Y1 FOR ROTATING STATION CONNECTION FITTING Y2 (SEE ENCLOSED A) Fig. 5 Fig. 6...
-
Page 17: Installation Of The Unit
® IDROTECH Ed. 01.97 42 43 INSTALLATION OF THE UNIT POWER NOZZLES SUPPLY COMPRESSED AIR N°3 STATIONS AIR INLET PIPE (A) PRODUCT INLET PIPE ( C) TANK FOR PRODUCT AIR OUTLET AIR INLET PRODUCT TAPS CONNECTION OUTLET PRODUCT TAPS SUCTION CONNECTION Fig. -
Page 18: Setting At Work
® IDROTECH Ed. 01.97 4344 SETTING AT WORK DAILY/WEEKLY TIMER WHITE PILOT LAMP (P) MAIN WITH REST/WORK MODE (N) CONTROL PANEL FED SWITCH (O) GREEN PILOT COMPRESSED AIR LAMP GREEN PILOT (R3) LAMP STATION 2 (R2) GREEN PILOT LAMP STATION 1... - Page 19 ® IDROTECH Ed. 01.97 44 45 8) Adjust the air pressure at 3 bar (with the adjuster (Z) checking the pressure gauge (T). 9) If the nebulization that is going out from the nozzles of the stations is not the one required, operate on the air adjuster (Z) and water adjuster (V).
-
Page 20: Maintenance
® IDROTECH Ed. 01.97 4546 MAINTENANCE To perform the maintenance operations, call the Service Centre. Before any maintenance operation or check: DISCONNECT THE MACHINE FROM THE MAINS!!!!! Do not perform any cobbling or unsafe repair; Use only original spare parts and/or accessories, or spare parts approved by the manufacturer, to avoid damaging the machine.. -
Page 21: Diagnosis
® IDROTECH Ed. 01.97 4647 DIAGNOSIS CAUSE PROBLEM REMEDY (probable cause of the problem) (perform the intervention in compliance with the safety standards indicated before) 1) The pump sucks air 1) Check the water feeding line and Vibration on the... -
Page 22: Compliance Statement
IDROTECH Ed. 01.97 4748 COMPLIANCE STATEMENT The undersigned, representative of the following manufacture IDROTECH SRL headquarter in Borgoricco (PD) - Via dell'industria 25 DECLARES that the product: MODEL: I.C.N. Air_System Is in accordance with the following Directives: 89/336 EEC Directive (EMC directive) and subsequent amendament... -
Page 23: Warranty
- The warranty does not include the eventual cleaning of the elements and the substitution of the worn elements as: pump oil, monitor nozzle, etc. - Idrotech is not liable for eventual damages caused to people or things, due to a wrong installation or incorrect use of the appliance. - Page 24 ® IDROTECH S.r.l. TECNOLOGIE DEL PULITO CLEANING TECHNOLOGIES 35010 BORGORICCO (PD) - Via dell’Industria, 25 Tel. (049) 9335136 - Fax (049) 9335645 www.idrotech.com E-mail: idrotech@idrobase.com...
