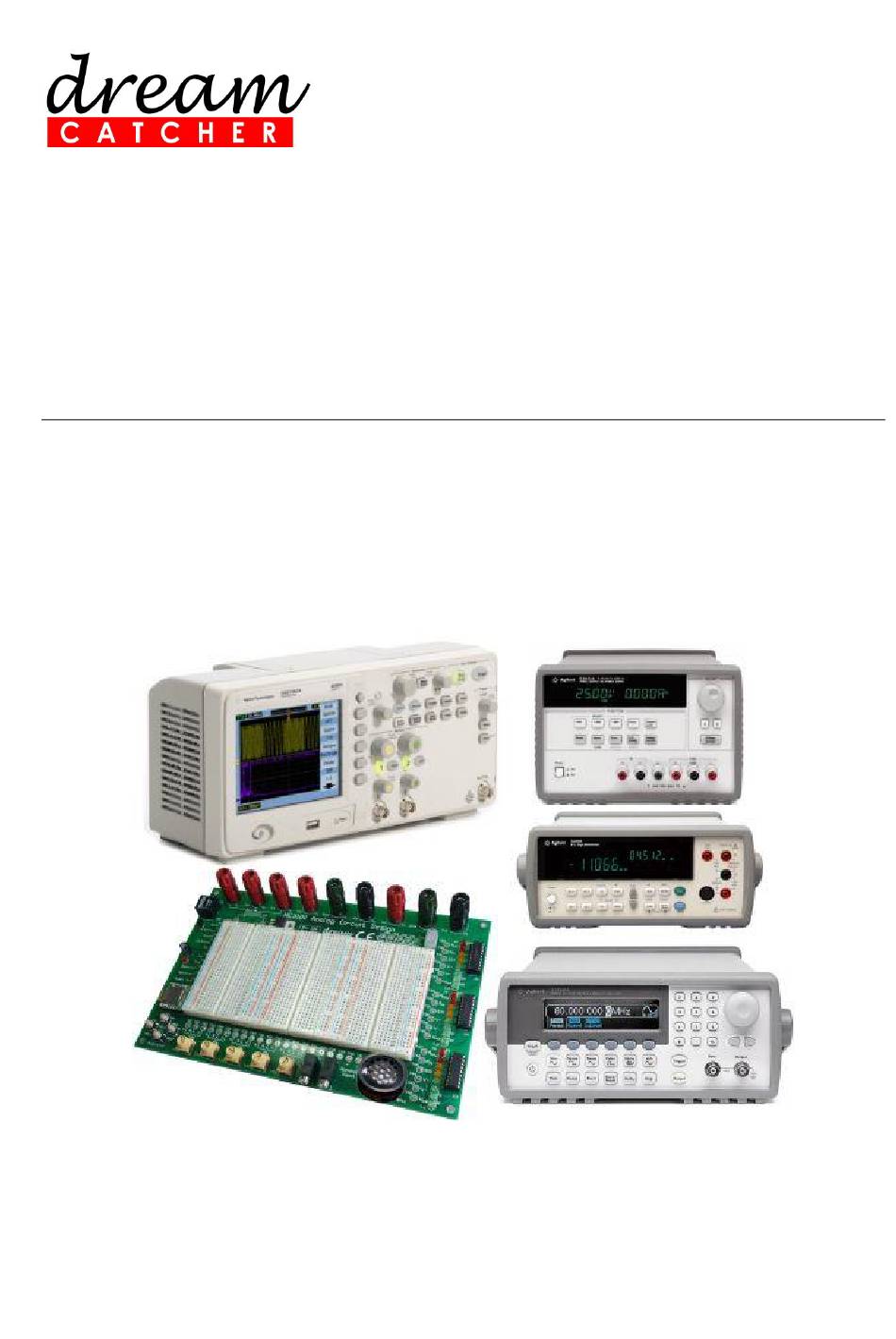

- Page 1 ME3100 Analog Circuit Design Ready-to-Teach Package for Electronic Instrumentation and Measurement Quick Start Guide revision 2.00 Printed on 29 June 2016...
- Page 2 EN100015-1 standard. Do not connect or disconnect the device while it is being energized. WARNING: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE WITH THE EMC RULES COULD VOID THE USER’S AUTHORITY TO OPERATE THE PRODUCT. ME3100 Analog Circuit Design Quick Start Guide - 2/25...
-
Page 3: Table Of Contents
Table of Contents ............................3 1. Quick Setup and Verification ........................4 2. Support and Warranty ..........................9 Appendix A: ME3100 Analog Circuit Design Kit ..................10 Appendix B: Specifications.......................... 11 Appendix C: Pin Layout of LM158 ......................12 Appendix D: Using Modular Instruments ....................13... -
Page 4: Quick Setup And Verification
1. Quick Setup and Verification The following steps demonstrate the basic setup and lab test of the ME3100 Analog Circuit Design kit: — Embedded Audio Player Test and Verification — LED Audio VU Meter Test and Verification — Equalizer and LED Audio VU Meter Test and Verification Embedded Audio Player Test and Verification 1. - Page 5 13. Press the NEXT or PREV button to play the next or previous audio file. 14. Press the RESET button to reset the audio module. The LED D1 will blink for a moment. 15. Turn off the ME3100 Analog Circuit Design kit by pressing the Output On/Off button on the power supply.
- Page 6 1. Build a single band equalizer by following the schematic connections as shown in Figure 4 on the breadboard of the ME3100 Analog Circuit Design kit. This single band equalizer will be used to test the functionality of the Audio VU Meter. Refer to the appendix for the pin layout of the op-amp LM158.
- Page 7 6. With all the connections properly connected as shown in Figure 5, configure the power supply as described in Section 4.1 and turn it on. The red LED D1 on the ME3100 Analog Circuit Design kit will blink for a moment.
- Page 8 9. Adjust the potentiometer VR1, VR2, or VR3 to control the equalizer. 10. You would be able to hear the change in the music quality as you adjust the equalizer controls. ME3100 Analog Circuit Design Quick Start Guide - 8/25...
-
Page 9: Support And Warranty
This warranty extends to Buyer only and not to Buyer's customers or users of Buyer's products and is in lieu of all other warranties whether expressed, implied, or statutory including implied warranties of merchantability of fitness. For technical support and warranty, e-mail cw.support@dreamcatcher.asia ME3100 Analog Circuit Design Quick Start Guide - 9/25... -
Page 10: Appendix A: Me3100 Analog Circuit Design Kit
Appendix A: ME3100 Analog Circuit Design Kit As shown in Figure A-1, the ME3100 Analog Circuit Design kit consists of the following: Audio Speaker — — Embedded Audio Player — LED Audio UV Meter — Analog Potentiometer —... -
Page 11: Appendix B: Specifications
230 mm x 65 mm x 180 mm WEIGHT 0.6 kg WARRANTY 12 months OTHERS ME3100 – Analog Circuit Design Kit Typical Input voltage supply (variable, 0 – 15 Vdc) 15.5 V Input current supply 1.0 A Embedded Audio Player... -
Page 12: Appendix C: Pin Layout Of Lm158
Appendix C: Pin Layout of LM158 Figure C-1 – Pin Layout of LM158 ME3100 Analog Circuit Design Quick Start Guide - 12/25... -
Page 13: Appendix D: Using Modular Instruments
100 mV, 1 V, 10 V, 100 V, and 300 V; or auto range input impedance is 10 MΩ for all ranges (typical) input protection is 300 V on all ranges (HI terminal) ME3100 Analog Circuit Design Quick Start Guide - 13/25... - Page 14 Range section. A suitable range should be selected to give the best measurement resolution. The reading is displayed and updated continuously. 4. If you are using SCPI commands, enter MEASure:CURRent[:DC]? in order to make a DC current measurement. ME3100 Analog Circuit Design Quick Start Guide - 14/25...
- Page 15 √ AM, FM, PM, FSK, PSK, ASK Carrier √ √ √ √ √ AM, FM, PM Internal Modulation √ FSK, PSK, ASK Internal Modulation √ √ √ √ √ Sweep Mode ME3100 Analog Circuit Design Quick Start Guide - 15/25...
- Page 16 Status Display Display the parameters and status of the configured output waveform Enable/disable the Trigger and Output buttons (they are highlighted when Trigger & Output Enable/Disable enabled and grey when disabled) ME3100 Analog Circuit Design Quick Start Guide - 16/25...
- Page 17 (no error will be generated). For example, if you set the amplitude to 5 V and then change the output termination from 50 Ω high impedance, the amplitude value will ME3100 Analog Circuit Design Quick Start Guide - 17/25...
- Page 18 Output Setup tab; input the desired load impedance value on the Impedance Load panel, and select the unit from the drop down list; or select High Z for high impedance load. ME3100 Analog Circuit Design Quick Start Guide - 18/25...
- Page 19 5. Figure D-7 shows the general graphical user interface of the Keysight Modular Oscilloscope on the Keysight Measurement Manager. Figure D-7 – Graphical User Interface of the Keysight Measurement Manager (Oscilloscope) ME3100 Analog Circuit Design Quick Start Guide - 19/25...
- Page 20 The analog control panel of the interface consists of a vertical control and a horizontal control that are used to control and set the waveform of the graph display. The vertical control is used to change the ME3100 Analog Circuit Design Quick Start Guide - 20/25...
- Page 21 6. You can also configure the offset of the oscilloscope by using the offset control as shown in Figure . The offset is used to configure the position of the ground relative to the center of the display. ME3100 Analog Circuit Design Quick Start Guide - 21/25...
- Page 22 When the delay time knob is turned, the trigger point will move to the left or right of the waveform graph display. You may adjust the delay time to change the trigger point. This is shown in Figure 5. ME3100 Analog Circuit Design Quick Start Guide - 22/25...
- Page 23 This will enable the Cursors panel. 6. Off will disable the graph markers from the graph display. 7. If the Manual marker is selected, the Cursors control will be enabled. This is shown in Figure 7. ME3100 Analog Circuit Design Quick Start Guide - 23/25...
- Page 24 4. Once the auto scaling has completed, you will see a best fit waveform displayed on your graph. 5. Use the Run/Stop button to manually start or stop the oscilloscope acquisition system for acquiring waveform data. 6. You may click to start or stop acquiring the waveform. ME3100 Analog Circuit Design Quick Start Guide - 24/25...
- Page 25 Microsoft and Windows are trademarks of Microsoft Corporation in the United States and/or other countries. All other copyrights and trademarks belong to their respective owners. © 2014 Acehub Vista Sdn. Bhd. ME3100 Analog Circuit Design Quick Start Guide - 25/25...
