NexSens SP-Series Solar Power Pack
The SP-Series Solar Power Packs feature a solar panel, regulator, and battery
housed in a weather tight enclosure. Solar Power Packs are used to provide
continuous power for X2 and V2 systems.
Installation

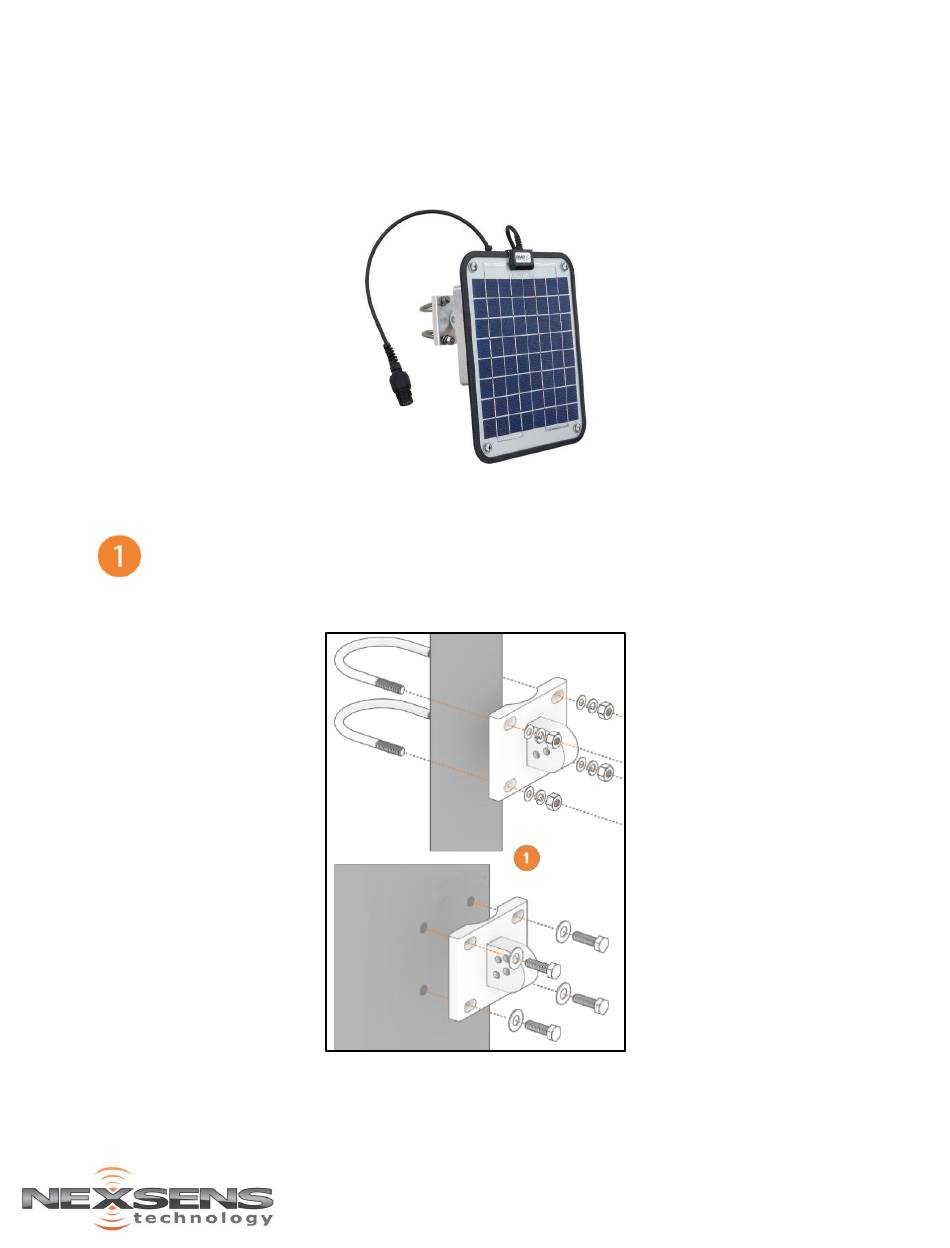

1. Install the mounting bracket onto a 1-½" to 2" pole using the included U-Bolt
hardware or attach the bracket to a panel as shown.
a. Ensure the arrow on the back of the bracket is pointing up.
Quick Start Guide
1
2091 Exchange Court
Fairborn, Ohio 45324
937-426-2703
www.NexSens.com
Advertisement
Table of Contents
Summary of Contents for NexSens SP Series
- Page 1 NexSens SP-Series Solar Power Pack Quick Start Guide The SP-Series Solar Power Packs feature a solar panel, regulator, and battery housed in a weather tight enclosure. Solar Power Packs are used to provide continuous power for X2 and V2 systems.
- Page 2 NexSens SP-Series Solar Power Pack Quick Start Guide 2. Install the solar panel onto the mounting bracket by inserting one of the included ¼-20 x 1-½” screws through the center hole of both pieces and tightening with a 3/16 hex driver.
