Important: Retain these instructions
UnpackIng

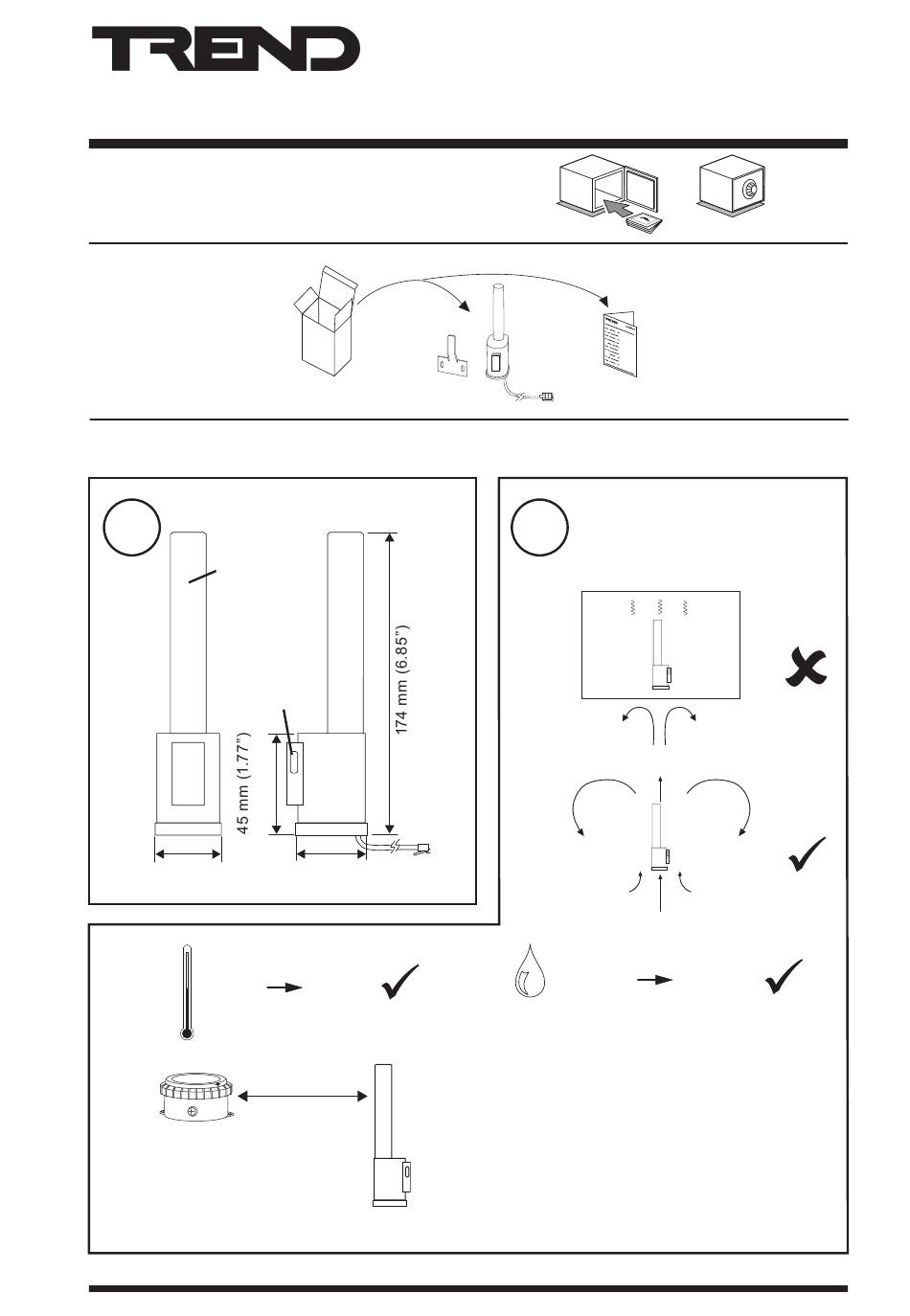

InStallatIon
Dimensions
1
Ø 20 mm
(0.78")
mounting slot
37 mm
(1.46")
b
-35 °C
(-31 °F)
c
75 m, 80 yds
(maximum)
Note that range may be affected
by environmental characteristics,
e.g. partitions, walls, building
structure etc.
XW/R/IQ Wireless Sensor Receiver Installation Instructions TG200783 Issue 3, 06-Mar-2013
Wireless Sensor Receiver
R J 11
plug
40 mm
4 m
(1.57")
(4 yds 1')
+70 °C
(+158°F)
d
XW/R/IQ
Installation Instructions
XW/R/IQ
Instructions TG200783
Requirements
2
a
0 %RH
100 %RH
H O
2
protection Ip68+
• Avoid using many other devices on
frequency range 433.05 to 434.79 MHz
• Keep away from sources of interference
(e.g. computer >1 m, 1 yd, microwave
ovens, switch mode power supplies).
• Mount above partition height if possible.
XW/R/IQ
Installation
1
Advertisement
Summary of Contents for TREND XW/R/IQ
-
Page 1: Installation Instructions
(e.g. computer >1 m, 1 yd, microwave Note that range may be affected ovens, switch mode power supplies). by environmental characteristics, • Mount above partition height if possible. e.g. partitions, walls, building structure etc. XW/R/IQ XW/R/IQ Wireless Sensor Receiver Installation Instructions TG200783 Issue 3, 06-Mar-2013... - Page 2 (b) Check the following settings in XW/R/IQ Configuration Tool: b1: Port is set to appropriate port number b2: Protocol is set to Trend Protocol b3: Read Channels 1-16 (if some channels already set up) XW/R/IQ Wireless Sensor Receiver Installation Instructions TG200783 Issue 3, 06-Mar-2013...
- Page 3 Ensure that the menu item Configuration/Output Mode is set back to ‘5 - Programmed Transmitters Trend Protocol (ASCII)’ or the receiver will not operate. (f) Unplug XW/R/IQ receiver from adaptor cable XW/R/IQ Wireless Sensor Receiver Installation Instructions TG200783 Issue 3, 06-Mar-2013...
-
Page 4: Weee Directive
Honeywell Technologies Sàrl, Ecublens, Z.A. La Pièce, 16, 1180 Rolle, Switzerland by its Authorized Representative, Trend Control Systems Limited. Trend Control Systems Limited reserves the right to revise this publication from time to time and make changes to the content hereof without obligation to notify any person of such revisions or changes.
