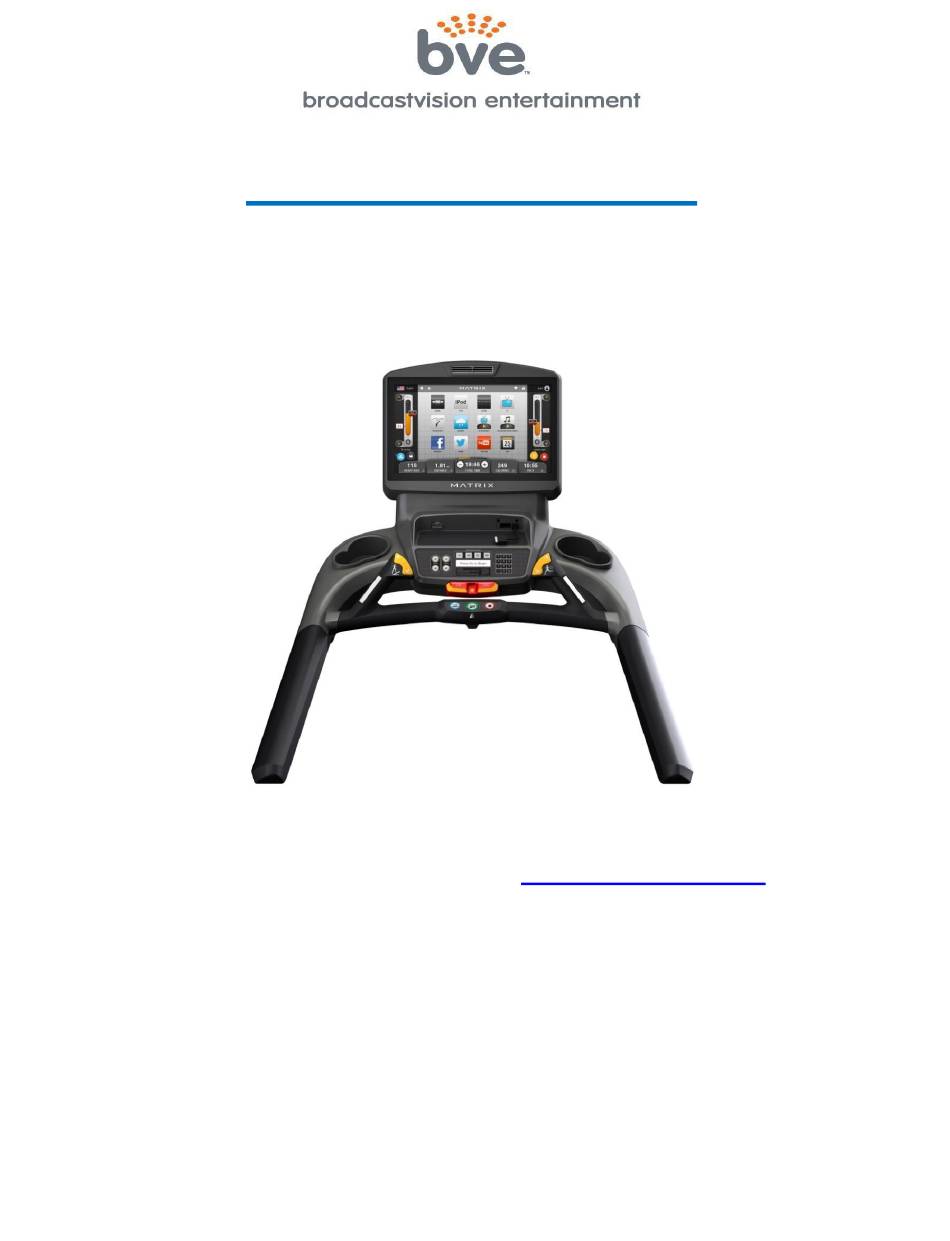

CAB – MATRIX 7xe/7xi
The Matrix 7xe and 7xi consoles can now control ANY cable, satellite
or IPTV set top box using the CAB from Broadcastvision
Online Service Manuals available at:
Benefits:
•
Eliminates the hand-held battery operated remote control.
•
Members can control the TV using cardio equipment console controls.
•
An expensive head-end system is not required.
•
Club operators can choose ANY cable, satellite or IPTV provider.
•
TV channels are not restricted.
•
Members can access all the channels available per your subscription.
•
No troublesome wireless devices to manage.
•
Proven Technology - Broadcastvision first offered a solution for set top box
control in 2011 and is the clear-cut market leader in this technology.
BroadcastVision Entertainment Technical Support
Telephone: 1(888) 330-4283 ext.3
Entertainment.
www.broadcastvision.com
Email: support@broadcastvision.com
Page 1
Advertisement
Summary of Contents for BVE MATRIX 7xe
- Page 1 CAB – MATRIX 7xe/7xi The Matrix 7xe and 7xi consoles can now control ANY cable, satellite or IPTV set top box using the CAB from Broadcastvision Entertainment. Online Service Manuals available at: www.broadcastvision.com Benefits: • Eliminates the hand-held battery operated remote control.
- Page 2 1(888)330-4283 ext.3 for instructions on how to reprogram the CAB onsite. CAB CONFIGURATION The CAB ships pre-configured by BVE for the target STB at customer facility. Normally no additional configuration steps are required. If the CAB does not work for any reason please call technical support at 1(888)330-4283 ext.3 before leaving the...
- Page 3 Installation Instructions Before attempting to install the CAB start by making sure that the cable/satellite box is properly hooked up to the screen and you have a picture on the screen. If you do not have picture make sure that you are on the appropriate input or channel (usually 3 or 4) before proceeding to the next step.
- Page 4 Once the CAB is hooked up you will need to run the IR emitter cable down the machine to the base of the cardio. There it will connect to either the set top box or a cat5/6 cable for sending the signal to an AV closet. Tip: since the IR wire is very thin and easily damaged it is better to run the emitter wire through the machine (see page 5 for a wire management example).
- Page 5 If the set top boxes are located in another room, the supplied cat5 adapters will allow you to use a standard cat5/6 wire from each cardio machine to pass the IR signal back to the AV closet. IR emitter shields are included with each CAB in order to help protect the emitter and keep it in place.
- Page 6 Instructions – Enabling CAB Features on new 7xe and 7xi Consoles 1. Install the 7xi and Cable box as though you won’t have a CAB. a. Connect all cables as normal c. Set the source to Coaxial ATSC / DVB –T 2.
- Page 7 3. You should see a channel 3 on your Channel list on the right. a. Set Channel 3 as the default channel in the TV menu 4. Reboot the console, start a workout, and turn on the TV to confirm that the TV will show content from the Set Top Box.
- Page 8 Troubleshooting Guide: 1. Double button presses – Some set top boxes respond to more than one of the IR codes that we send out. If you notice that pressing a channel button on the console results in multiple presses, simply remove the 2 screws that hold the lid on the CAB and turn on dip switch 2 and 4.
- Page 9 e. No Continuity between CAB and IR emitter – In some circumstances utilizing the “Far” set top box scenario, the CAT5/6 cable between the set top box and the CAB may not provide full continuity through wall plates etc. It may be helpful to re-locate the STB at the base of the cardio and re-test.
- Page 10 BVE manufactured products may only be returned for credit with written authorization from BVE within 30 days of the original invoice date. A 25% restocking fee will be charged for all returns. All products being returned to BVE require a Return Authorization number. Products must be returned in original condition with the original packaging, components and support material.
