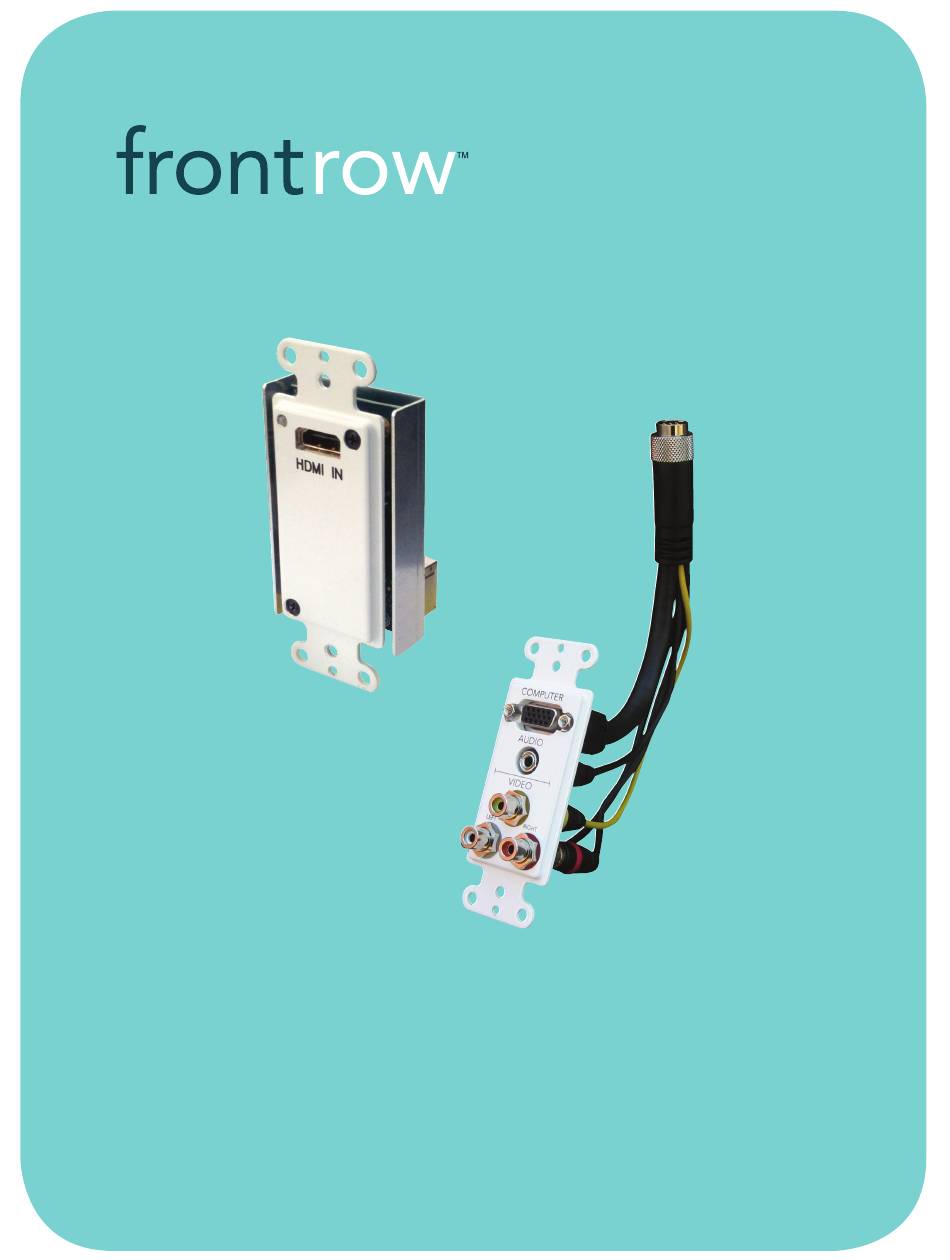

AV Wall Plates Installation This guide provides additional information regarding the installation of FrontRow AV wall plates, including WP-PC, WP-PCAV, and WP-HD. Be sure to review the ezRoom Installation Guide for more information on installing and configur- ing a FrontRow classroom system. -
Page 4: Before You Begin
Consider where you will place your wall plates. You will want the wall plates to be no more than 10FT/3M from the source computer or video player so that longer cables are not required. FrontRow AV wall plates do not include cables to connect the source device to the wall plate, so be sure to use high quality VGA, High-Speed HDMI, and audio cables of 3m/10ft or less to maintain signal integrity. - Page 5 NOTE: For information on setting audio levels with Teacher Edition and the CA1000 or CM3000, see the Teacher Edition User Guide. NOTE: Some computers do not have a line input, or use a combination headphone/mic jack. FrontRow offers a cable (300-6332-139 Headphone/mic Y cable) if required. USB Headphone/mic adapters are widely available on the internet.
-
Page 6: Physical Installation Prep
3. Pull the AV cable down through conduit or wall space to the location where the AV wall plates will be mounted. 4. Secure the 13-pin connector on the AV cable to the locking connector on the WP-PC or WP-PCAV Decora wall plate. - Page 7 2. Run the AV cable from the display source (projector or HDTV) to the location where the wall plates will be installed. 3. Secure the 13-pin connector on the AV cable to the locking connector on the WP-PC or WP-PCAV Decora wall plate.
-
Page 8: Test
Test Your installation is not complete without testing your audio and video setup! Confirm that the VGA input passes video properly on the projector or HDTV. Make sure the projector is set to the correct input. Adjust the resolution on the computer for optimal viewing and reading in the classroom. Confirm that audio from the computer plays back successfully in the amplified system. -
Page 9: Appendix 1: Troubleshooting
Problem: Ghosting is seen on the video from WP-PC or WP-PCAV Solution: Try switching to a different resolution or refresh rate in the computer display settings. WP-PC and WP-PCAV support up to UXGA but some older computers may have poor VGA drivers. - Page 10 © 2014 FrontRow Calypso LLC Phonic Ear, FrontRow, Calypso and the names of Phonic Ear, Calypso, and FrontRow products are trademarks or registered trademarks of FrontRow Calypso LLC in the U.S. and other countries. 821-2002-002/Rev. B...
