INSTALLATION INSTRUCTIONS
Model:
VT4806
Model Series: Agriculture/Horticulture/Food Service
!
When using electrical equipment, basic safety precautions should always be followed, including the following:
•
Read all instructions carefully before installing and save for future use.
•
Make sure all connections are in accordance with the National Electrical Code and local regulations.
•
To avoid possible electric shock, be sure the power supply is turned off before servicing or installing the fixture
•
Service should be performed by qualified personnel.
•
These instructions may not cover all details or variations. If additional information is needed, please contact 414.410.3600.
VT4806 VAPORTIGHT
PAGE 2
PAGE 3
PAGE 4
PAGE 5
CLEANING INSTRUCTIONS
Design Modification Rights Reserved
© 2018
Advertisement
Table of Contents
Summary of Contents for Arden VT4806

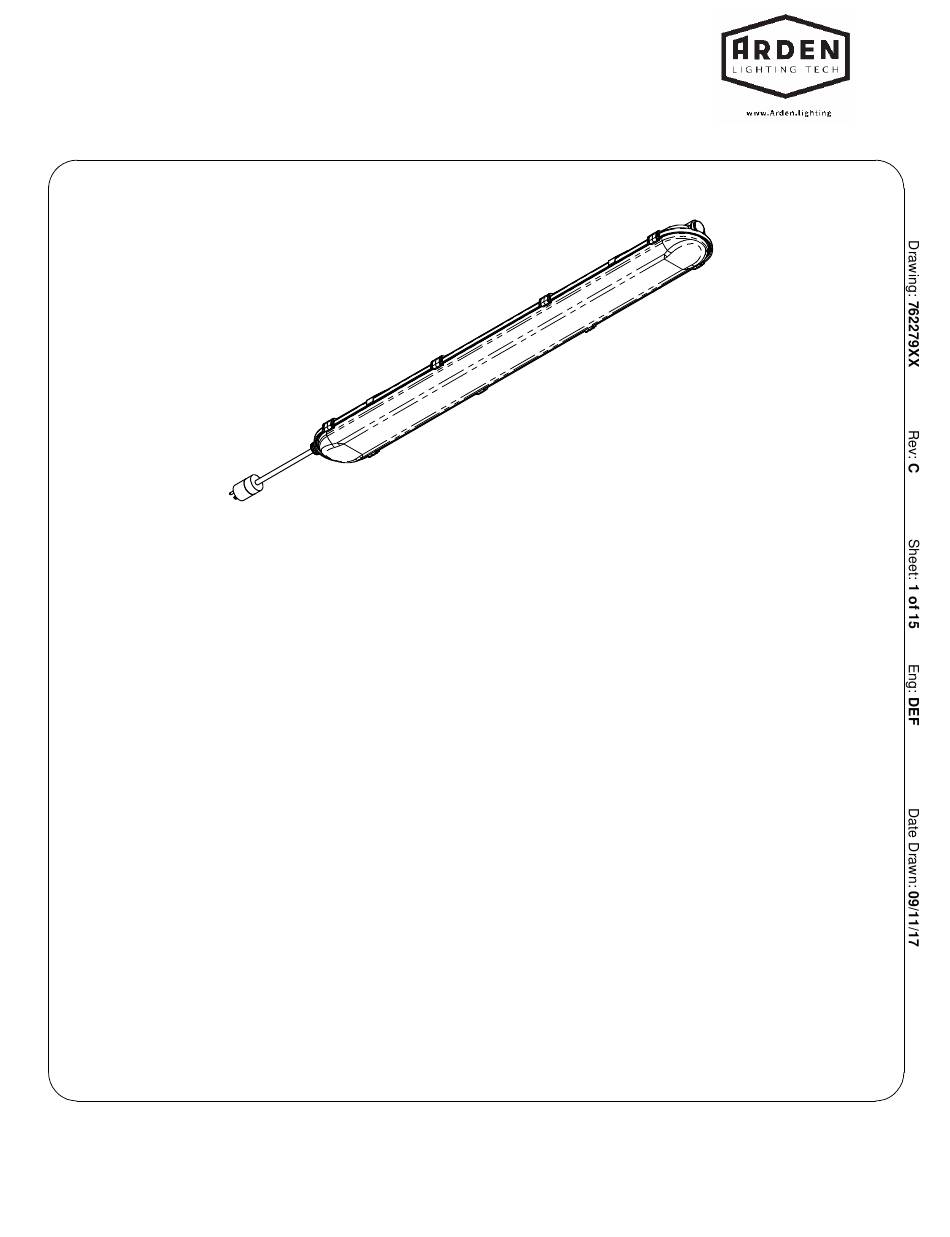

- Page 1 INSTALLATION INSTRUCTIONS Model: VT4806 Model Series: Agriculture/Horticulture/Food Service Design Modification Rights Reserved © 2018 VT4806 VAPORTIGHT PAGE 2 INSTALLATION AND OPERATING INSTRUCTIONS PAGE 3 CLIP MOUNTING PAGE 4 HOOK MOUNTING PAGE 5 CLEANING INSTRUCTIONS When using electrical equipment, basic safety precautions should always be followed, including the following: •...
- Page 2 INSTALLATION INSTRUCTIONS Model: VT4806 Model Series: Agriculture/Horticulture/Food Service Design Modification Rights Reserved © 2018 INSTALLATION AND OPERATING INSTRUCTIONS THIS FIXTURE IS INTENDED FOR USE IN WET LOCATIONS AND IS IP66 RATED, BUT IT CAN ALSO BE INSTALLED IN DAMP LOCATIONS.
- Page 3 INSTALLATION INSTRUCTIONS Model: VT4806 Model Series: Agriculture/Horticulture/Food Service Design Modification Rights Reserved © 2018 GENERAL PURPOSE MOUNTING STRAP 32-36 INCHES DISTANCE BETWEEN MOUNTING STRAPS CLIP HOOK LIP WHERE THE CLIP SHOULD HOOK ON FIXTURE Measure 32" to 36" between mounting straps on mounting surface before installation.
- Page 4 INSTALLATION INSTRUCTIONS Model: VT4806 Model Series: Agriculture/Horticulture/Food Service Design Modification Rights Reserved © 2018 MOUNTING HOOK SUSPENSION HOOK (2) 1/4-20 NUT (2) MOUNTING BRACKET (2) MOUNTING STUD Secure housing bracket to fixture by placing bracket over housing studs and tighten 1/4-20 locknut.
- Page 5 INSTALLATION INSTRUCTIONS Model: VT4806 Model Series: Agriculture/Horticulture/Food Service Design Modification Rights Reserved © 2018 CLEANING AND CARE INSTRUCTIONS Use care when cleaning this LED Luminaire. The housing is made of reinforced polyester and the lens is made of clear or frosted Acrylc.
