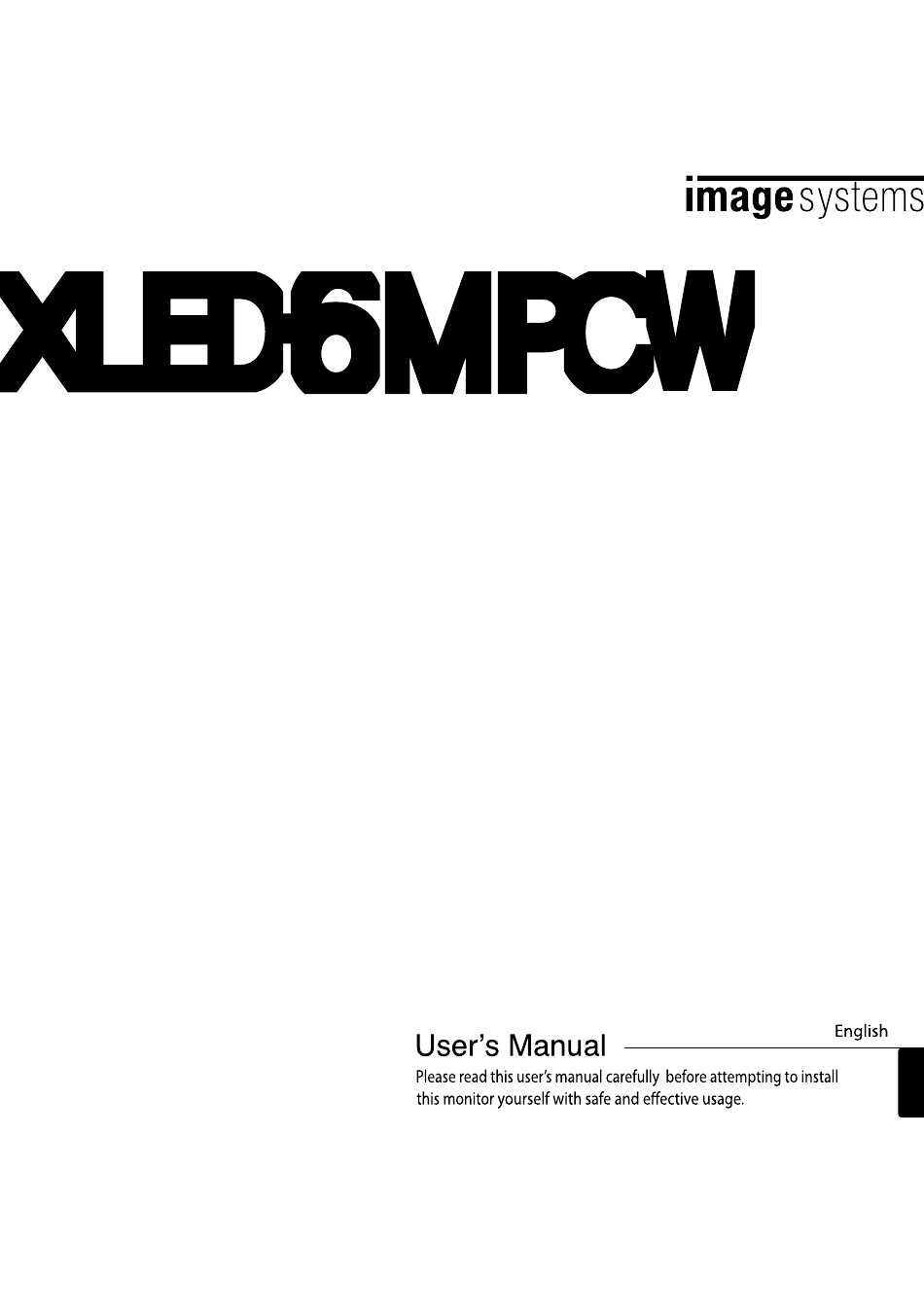

IMAGE SYSTEMS XLED-6MPCW User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XLED-6MPCW and is the answer not in the manual?

Questions and answers

Related Manuals for IMAGE SYSTEMS XLED-6MPCW

Summary of Contents for IMAGE SYSTEMS XLED-6MPCW

  • Page 2 Specifications and features are subject to change without notice. Images shown are for illustrative purpose only. All names of the products are trademarks or registered trademarks of their respective companies. 2013.12. Ver 1.0...

  • Page 4: Safety Symbol

    Safety Symbol This manual uses the safety symbols below. They denote critical information. Please read them carefully. WARNING Failure to abide by the information in WARNING may result in serious injury or life threatening. CAUTION Failure to abide by information in CAUTION may result in moderate injury and/ or property or product damage.
  • Page 5 Install the equipment in the controlled environment, where such effects are avoided. y Product specification may vary depending on region. Please confirm the specifications within the user’s manual of your region. XLED-6MPCW USER’S MANUAL...

  • Page 6: Table Of Contents

    Table of Contents Safety Symbol -------------------------------------- 1 Environmental Information -------------------------------------- 4 Safety Introductions -------------------------------------- 5 FCC Information -------------------------------------- 7 VCCI Class B ITE -------------------------------------- 8 PRECAUTIONS -------------------------------------- 9 CAUTION -------------------------------------- 13 Notice -------------------------------------- 15 Introduction -------------------------------------- 16 Installation -------------------------------------- 20 Making use of USB (Universal Series Bus) -------------------------------------- 30 Monitor Specifications...

  • Page 7: Environmental Information

    Do not throw away the carton and packing materials. We encourage you to keep them for future use in the case of returning the product for replacement or repair. This ideal package is specially designed and is not easy to find. XLED-6MPCW USER’S MANUAL...

  • Page 8: Safety Introductions

    Safety Introductions General Recommendations Read the safety and operating instructions before operating the display. Retain safety and operations for future reference. Adhere to all warnings of this display and in the operating instructions manual. Follow all instructions for operation and use. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN...
  • Page 9 Increase the separation between the equipment. y Connect the equipment into an outlet on a circuit different from that to which the other device(s) are connected. y Consult the manufacturer or field service technician for help. XLED-6MPCW USER’S MANUAL...

  • Page 10: Fcc Information

    FCC Information 1. User Instructions The Federal Communications Commission Radio Frequency Interference Statement includes the following warning : NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 11: Vcci Class B Ite

    NEMA configuration 6-15P type (tandem blades) plug cap. IC Compliance Notice This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations of ICES-003. VCCI Class B ITE この装置は、情報処理装置等電波障害自主規制協議会（ＶＣＣＩ）の基準に基 づくクラスB情報技術装置です。この装置は、家庭環境で使用することを目的と していますが、この装置がラジオやテレビジョン受信機に近接して使用される と、受信障害を引き起こすことがあります。取扱説明書に従って正しい取り扱 いをして下さい。 XLED-6MPCW USER’S MANUAL...

  • Page 12: Precautions

    PRECAUTIONS 1. INSTALLING WARNING If you see smoke emitting from the monitor, if you smell burning or if you hear strange noise out of the monitor, you should disconnect all power connections immediately and contact your dealer for the technical advice. Attempting to use a faulty monitor may cause fire, electric shock, or equipment damage.
  • Page 13 Make sure to plug the power cord in until it is firmly inserted. When disconnecting the power cord, make sure to hold the power plug when pulling the plug from the outlet. Tugging on the cord may damage and result in fire or electric shock. XLED-6MPCW USER’S MANUAL...
  • Page 14 The monitor must be connected to a grounded main outlet. Not doing so may result in fire or electric shock. Use the correct voltage. This monitor is designed for use with a specific voltage only. Connection to another voltage different than specified in this user manual may cause fire, electric shock, or equipment damage.
  • Page 15 Never touch the plug and power cord if it begins to thunder outsides. Doing so may result in electric shock. XLED-6MPCW USER’S MANUAL...

  • Page 16: Caution

    CAUTION Handle with care when carrying or moving the unit. Disconnect the power cord and cables when moving the monitor. Moving the monitor with the cord connected is dangerous, and it may cause harmful injury to you. More than two people will be required to move the monitor. When handling the monitor, grip the bottom of the monitor firmly with both hands ensuring the panel faces outward before lifting.
  • Page 17 ISO 3864, NO. 5036, the fuse symbol IEC-60417-5016 (DB:2002-10), and an indication that the fuse is in the neutral N, is permitted. However in this case, the statement shall also be provided in the servicing instructions. Label Statement XLED-6MPCW USER’S MANUAL...

  • Page 18: Notice

    Notice y This monitor has been adjusted specifically for use in the region to which it was originally shipped. If the product is used outside the region, it may not operate in the specifications. y Please wait 20 - 40 minutes after powering on the monitor before adjusting, as it takes roughly this same amount of time for the optimum performance of the electrical parts.

  • Page 19: Introduction

    Environmentally Friendly LED Backlights y Quick Warm-up : Reduced waiting time for the monitor to be DICOM complied. y Dual View Mode: Both left and right side of the displays are calibrated with an advanced dual built-in IQ sensor®. XLED-6MPCW USER’S MANUAL...

  • Page 20: Package Contents

    2. Package Contents Please contact your local dealer for assistance if any of the listed items is missing or damaged. Monitor DVI Signal Cable (2EA) DisplayPort Cable (2EA) USB Cable Power Cord Panel Cleaner USB Driver Warranty Card Manual & (Not Available In All USB Driver Installation CD Locations)

  • Page 21: Controls And Connectors

    - OSD on : the LED is orange. ⑥ - Otherwise, the LED is off. - Warm-up function enable : the LED is orange. Soft power on/off button ⑦ Luminance sensor. Measuring luminance(Y) on DICOM calibration. ⑧ XLED-6MPCW USER’S MANUAL...
  • Page 22 Ambient light Sensor. Measuring room light on DICOM calibration. ⑨ USB Down-stream ⑩ 2) Rear USB Down-stream ① USB Up-stream ② DisplayPort input connector ③, ⑥ DVI input connector ④, ⑤ Service port ⑦ AC power switch ⑧ AC Power connector ⑨...

  • Page 23: Installation

    Installation 1. Removing the covers Remove the connector compartment cover and stand cover shown in the following pictures. Press lock button to open the compartment cover. XLED-6MPCW USER’S MANUAL...

  • Page 24: Connecting The Cables

    2. Connecting the cables Input dedicated to right Input dedicated to left side side of the screen of the screen 1) Connect the power cord to the AC input bay ⑨ on the back of the monitor. 2) Connect a preferred input source of the DVI and DisplayPort cable from PC to ③ or ④...

  • Page 25: Routing The Signal Cables

    3) Connect the USB cable to ②. 4) Turn on the monitor and computer. 5) Recommended resolution of XLED-6MPCW is DQXGA (3280 x 2048). 6) DVI and DisplayPort input is available for DDC/CI communication. * This monitor offers a specific DDC/CI for Canvys. Contact Canvys to get related documents if needed.
  • Page 26 4. Monitor Positioning Adjust the monitor orientation to your preference with following functions. 1) Height The patented gas-spring stand allows you to adjust the heights easily just by pushing the top of monitor head down and lifting the bottom of monitor head up with hands. 2) Swivel and Tilt <Swivel>...

  • Page 27: Monitor Setting

    3) LED Lamp brightness Adjustment a. To activate menu LED Lamp Brightness Press “ ” button for about 5 seconds in OSD off. 50 % b. Adjusting Press “◀” or “▶” button to decrease or Down increase value. XLED-6MPCW USER’S MANUAL...
  • Page 28 4) DICOM Mode USER DICOM White DICOM Blue Ultrasound CT / MRI a. To activate menu Press “ ” button in OSD off, the DICOM Mode OSD will appear. b. Adjusting On the DICOM Mode OSD, Pressing “ ” button will set the next DICOM mode. *The default luminance is subject to be changed without notice.
  • Page 29 Input Source Setting Uniformity Enhancement Power Save Enable LUT Enable Enable Cooling Fan Speed Self-Diagnosis Factory Reset OSD Setting Language English Position Horizontal Vertical Transparency Opaque Turn off 10 sec. Lock out Locked Force key feedback enable XLED-6MPCW USER’S MANUAL...
  • Page 30 Information Information Luminance Measurement Ambient Measurement A. DICOM Mode Refer to 4) DICOM Mode for more detail. B. Display Setting y DVI : Input is set to DVI. Input Source y DisplayPort : Input is set to DisplayPort. y 250-550 : Automatically adjusts the overall light intensity targeting to the SBC (Stable selected luminance.
  • Page 31 Backlight Runtime : Indicates the total operating time of the display excluding the time in DPMS. Luminance The luminance measured by the IQ Sensor , expressed in nit (cd/m ) unit. ® Measurement Ambient The ambient light measured by the built-in ambient sensor, expressed in Lux Measurement unit. XLED-6MPCW USER’S MANUAL...

  • Page 32: Making Use Of Usb (Universal Series Bus)

    Making use of USB (Universal Series Bus) This monitor provides a hub which supports the USB standard 2.0. When connecting to a USB compliant PC or another hub, the monitor functions as a hub to which the USB compliant peripherals can be easily connected. Environment Conditions of usage y PC equipped with USB ports or another USB hub connected to the USB compliant PC y Windows 2000/XP/Vista, and Windows 7...
  • Page 33 4. After setting up, the monitor’s USB hub is available for connecting USB compliant peripherals to the downstream ports of the monitor. Downstream Port : Connect the cable from USB compliant peripherals such as a mouse, keyboard, etc. XLED-6MPCW USER’S MANUAL...

  • Page 34: Monitor Specifications

    Monitor Specifications Panel Specification LCD Panel 723.65mm (28.49") LCM Mode : Dual domain IPS Response Time : 25ms (Black>White>Black) Viewable Image Size 613.8mm(H) X 383.2mm(V) Display Resolution 3280 X 2048 Pixel pitch 0.187mm X 0.187mm Brightness 800cd/m Contrast Ratio 800 : 1 Viewing angle 85°/ 85°/ 85°/ 85°...

  • Page 35: Mechanical Specification And Regulatory

    Temperature : –20°C to 60°C / –4°F to 140°F Humidity : 30% to 80% Maximum Height : 5,000mm Atmospheric pressure Range : 500hPa to 1060hPa Regulatory Approvals UL60601-1 / EN60601-1 / IEC601-1s B CE, VCCI, KC, C-Tick XLED-6MPCW USER’S MANUAL...

  • Page 36: Power Management

    Power Management This Power Management System helps you to save energy by switching your monitor into a low-power consumption mode when it has not been used for a certain period of time. Power Management System operates with VESA DPMS compliant video card installed in your computer.

  • Page 37: Trouble Shooting

    Canvys a division of Richardson Electronics © 2013 Canvys a division of Richardson Electronics. All rights reserved. XLED-6MPCW USER’S MANUAL...
