Summary of Contents for SOUTHWESTSOLUTIONSGROUP Library Shelving

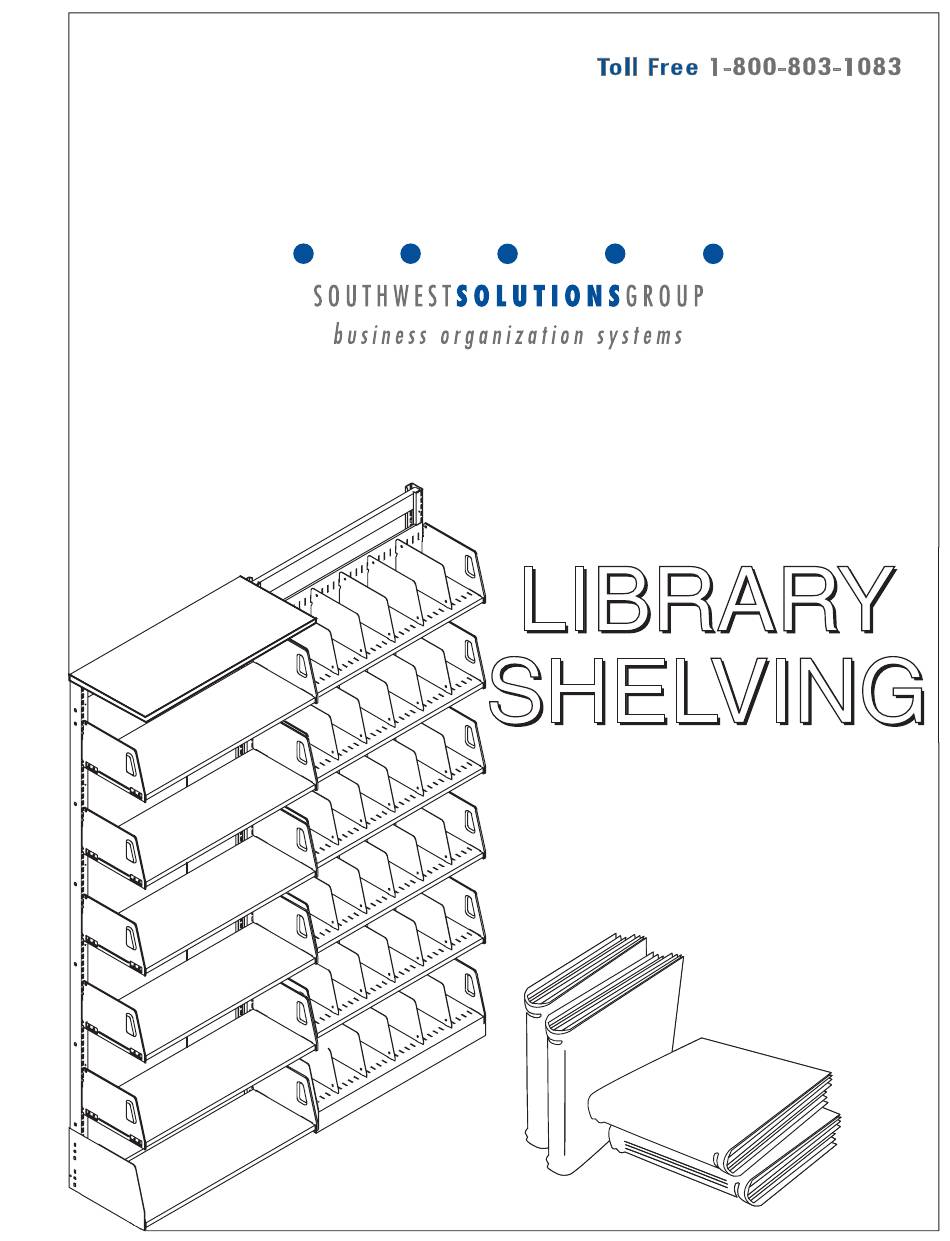

Page 1: Installation Instructions
www.southwestsolutions.com INSTALLATION INSTRUCTIONS LIBRARY SHELVING...
Page 2: Table Of Contents
Contents www.southwestsolutions.com Major Components Identification Mobile ........2 Static .
Page 3: Mobile
Major Components Identification / Mobile NOTE: • Variable catalog number designators h = frame height, w = frame width, d = shelf depth • Catalog number designators L = left, R = Right DESCRIPTION CATALOG NO. A—WELDED FRAME CWF-hw B—SLOTTED BACKSTOP CSBS-w C—SLOTTED ADJUSTABLE SHELF (Includes backstop) CSSB-wd...
Page 4 Major Components Identification / Static NOTE: • Variable catalog number designators h = frame height, w = frame width, d = shelf depth • Catalog number designators L = left, R = Right DESCRIPTION CATALOG NO. A—WELDED FRAME CWF-hw B—SLOTTED BACKSTOP CSBS-w C—SLOTTED ADJUSTABLE SHELF (Includes backstop) CSSB-wd...
Page 5: Static
www.southwestsolutions.com Hardware Identification 3/8 - 16 X 3/4 Gr. 5 Hex 3/8 - 16 Keps Nut (Part No. 95021.08) (Part No. 93015.08) 3/8 - 16 Self Retaining Nut (Part No. 93048.01) 3/8 - 16 Appliance Leveler STATIC UNIT CANTILEVER FRAME (Part No.
Page 6: Pre-Installation
www.southwestsolutions.com Pre-Installation Caution Caution Assembled shelving units must be Special applications may require level for proper stability. Leveler shelving unit be floor-anchored or kits are optional and can be wall-mounted for adequate stability. ordered. Anchors are not provided as require- ments vary.
Page 7: Single Face Mobile Units
Installation / Single Face Mobile Units Caution Anchoring the shelving unit to the mobile carriage is mandatory! 9/16" I.D. X 2" O.D. Spacer Washer 3/8 - 16 X 3/4 Gr. 5 Hex 3/8 - 16 Keps Nut www.southwestsolutions.com...
Page 8 Installation / Single Face Mobile Units NOTE: If your shelving system will have multiple frame sections, begin assembly at one of the end sections. Stand frame end section (A) in upright position. Attach RIGHT side base support (B) to frame as shown using five hex bolts and keps nuts.
Page 9: Double Face Mobile Units
Installation / Double Face Mobile Units Caution Anchoring the shelving unit to the mobile carriage is mandatory! 3/8 - 16 Keps Nut 9/16" I.D. X 2" O.D. Spacer Washer 3/8 - 16 X 3/4 Gr. 5 Hex www.southwestsolutions.com...
Page 10 Installation / Double Face Mobile Units NOTE: If your shelving system will have multiple frame sections, begin assembly at one of the end sections. Stand frame end section (A) in upright position. Attach base support (B) to frame as shown using five hex bolts and keps nuts. Stand next frame section (C) upright beside first section.
Page 11: Single Face Static Units
Installation / Single Face Static Units 3/8 - 16 X 3/4 Gr. 5 Hex 3/8 - 16 Keps Nut 9/16" I.D. X 2" O.D. Spacer Washer Caution This unit must be anchored to the floor or secured to a wall for ade- quate stability.
Page 12 Installation / Single Face Static Units NOTE: If optional leveler kit is used, it is recommended the levelers be installed prior to Step 1. NOTE: If your shelving system will have multiple frame sections, begin assembly at one of the end sections. Stand frame end section (A) in upright position.
Page 13: Double Face Static Units
Installation / Double Face Static Units 3/8 - 16 X 3/4 Gr. 5 Hex 3/8 - 16 Keps Nut 9/16" I.D. X 2" O.D. Spacer Washer www.southwestsolutions.com...
Page 14: Adjustable Shelves
Installation / Double Face Static Units NOTE: If optional leveler kit is used, it is recommended the levelers be installed prior to Step 1. NOTE: If your shelving system will have multiple frame sections, begin assembly at one of the end sections. Stand frame end section (A) in upright position.
Page 15 Installation / Adjustable Shelves Plain Adjustable Shelves Hang LEFT end bracket (A) and RIGHT end bracket (B) onto frame upright at equal elevations as shown. NOTE: End brackets are distinguished by a stamped “R” (RIGHT) or “L ” (LEFT) on their surface.
Page 16 Installation / Adjustable Shelves Slotted Adjustable Shelves with Dividers Hook one end bracket (A) over tab on matching side of backstop (B). NOTE: End brackets are distinguished by a stamped “R” (RIGHT) or “L ” (LEFT) on their surface. Hook the two pieces (A and B) into the frame upright at desired elevation so one side of backstop is secure.
Page 17: Base Shelves
Installation / Base Shelves Plain Base Shelves Hang LEFT end bracket (A) and RIGHT end bracket (B) onto frame upright, leaving open the bottom two slots in the frame channel. NOTE: End brackets are distinguished by a stamped “R” (RIGHT) or “L ”...
