Masterpro MPSOUSVIDEX7 Manual

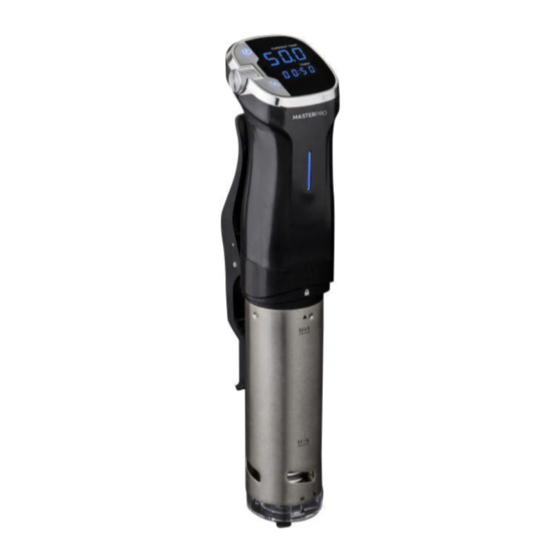

SOUS VIDE
PRECISION COOKER
DISPLAY
SCREEN
POWER
LIGHT
CLAMP
STAINLESS
STEEL BODY
MAX/MIN
WATER LEVEL
INDICATORS
WATER PUMP
CAP
FEATURES
• Digital display screen
• Easy-to-use dial
• Countdown timer
• Heats to 90°C
• Temperature stability ±0.1°C
• Times up to 99 hours
• 220-240V ~50/60Hz
• 800W
IMPORTANT SAFETY INSTRUCTIONS
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure they do not play
with the appliance.
• Read all the instructions before operating appliance and
retain for future use.
• Do not immerse appliance, plug or cord in water or any
other liquid above the max water indicator.
• Do not allow cord to hang over the edge of table or benchtop.
• Do not allow cord to touch hot surfaces.
• Unplug appliance when not in use or when being cleaned.
• Allow to cool before cleaning and storing.
• Switch off appliance before unplugging.
• Pull out from power outlet by grasping the plug - do not pull
the cord.
• Always check the integrity of cord before use. If cord or plug
is damaged, do not use.
• Do not use an extension cord.
• The appliance should always be used on a hard and stable
surface, such as a table or benchtop. Place pot on a board
to avoid heat damage to benchtops. Ensure clamp is firmly
in place.
ON/OFF
BUTTON
DIAL
TEMPERATURE/
TIME SELECTION
• Operate in a room temperature environment.
• Appliance is only designed to heat water. Do not use with any
other substance.
• Do not use deionized water.
• Do not place appliance near a hot stovetop or in oven.
• Do not use appliance for anything other than its
intended use.
• Appliance is intended for household use only.
• The heating element surface is subject to residual heat
after use.
• Stainless steel body of appliance will become hot during
use. Use oven mitts or tongs if handling is required.
Allow water to cool before emptying water bath.
• Do not disassemble other than as specified by cleaning
instructions.
• Do not use a damaged appliance.
• Warning: Avoid spillage on the connector.
• Caution: To prevent damage to the appliance do not use
alkaline cleaning agents when cleaning, use a soft cloth and
a mild detergent.
• Keep these instructions for future reference.
OPERATING INSTRUCTIONS
Note: Appliance should be turned on only when attached to pot
of water as per below instructions. If appliance is turned on
before being placed in the water, the screen will display
meaning error and will not work.
• A 6-15L pot/saucepan is required.
• Caution: Pot will heat during use. Ensure it is on a heat-safe
trivet/board to protect benchtop.
• Place appliance vertically in pot, attaching it to the pot wall
with clamp. Ensure clamp is firmly in place. Stainless steel
body of appliance should sit inside your pot.
• Fill pot with water until water level is between the Min and
Max indicators visible on appliance. Important: As this is
an electrical appliance never fill pot with water above max
water level indicator on appliance.
• Plug appliance into outlet. A 'beep' will indicate that power
is on, and icon and power light will show. Appliance will
enter standby mode.
• Touch icon to begin setting time and temperature
selection.
• Touch the icon (which will be flashing) to switch between
temperature and time modes.
• In temperature mode, use dial to set required temperature
for the recipe you are using.
• In time mode, touch the
and minutes, and use the dial to set required cooking time.
In hour mode, use the dial to set required hours. In minute
mode, use the dial to set required minutes.
• Touch icon to confirm selected temperature and time.
Appliance will begin heating and circulating water.
will turn blue.
• To change temperature or time during cooking, press
and hold the icon for three seconds. Select required
temperature and time as above. Touch
selected temperature and time.
• To stop appliance, press and hold the
seconds.
• Heating times will vary depending on pot size, amount of
water, and required temperature.
• Timer will begin counting down once set water temperature
has been reached. Keep an eye on temp so you know when
icon to switch between hours
icon
icon to re-confirm
icon for three
-
