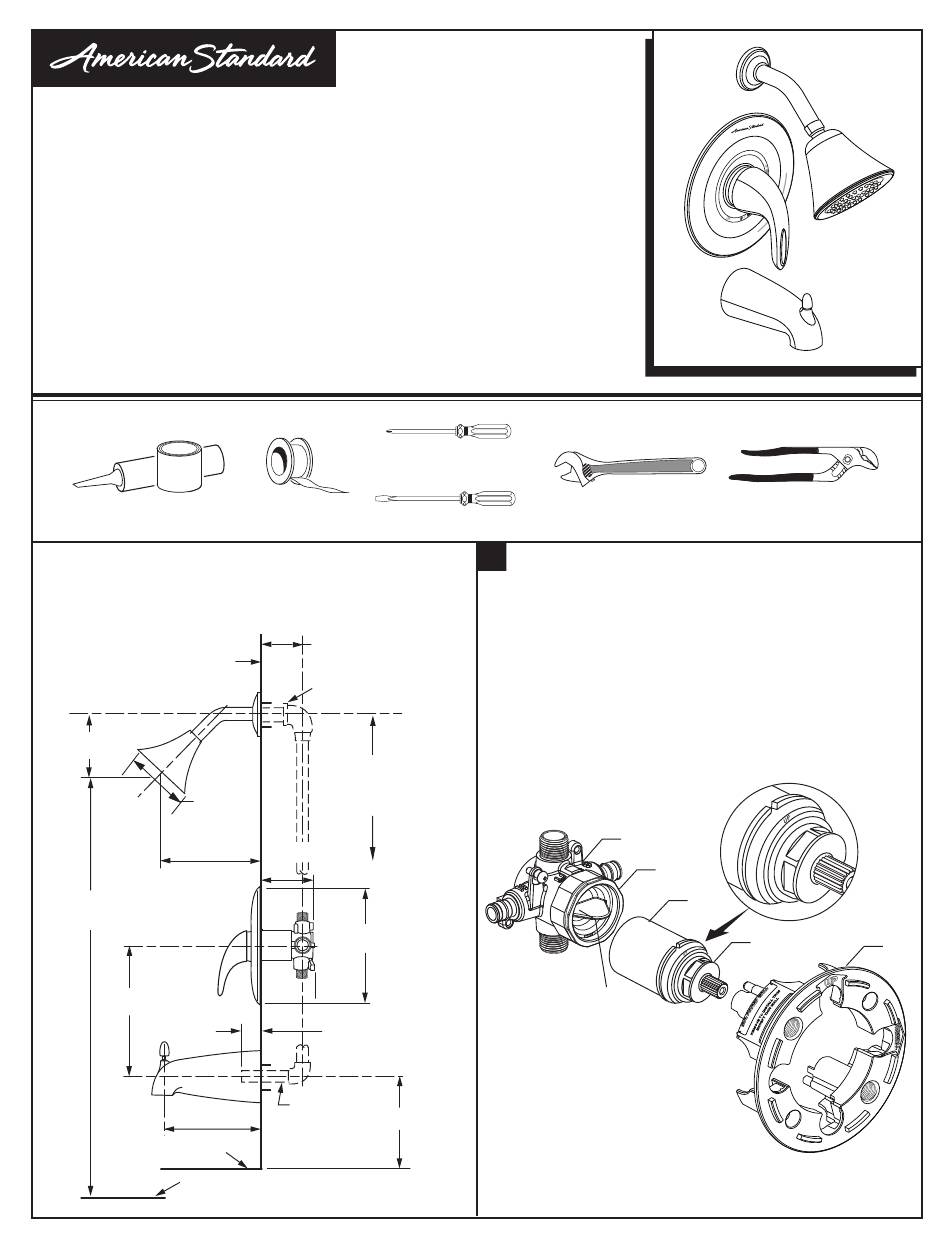

American Standart Reliant 3 TU385500 Installation Instructions

Reliant 3
®
Pressure Balancing Bath
and Shower Trim Kit
Thank you for selecting American Standard...
the benchmark of fine quality for over 140 years.
To ensure that your installation proceeds
smoothly-please read these instructions
carefully before you begin.
For use with shower heads rated at 4.9 L/min (1.3 gpm) or higher.

RECOMMENDED TOOLS

Plumbers' Putty
or Caulking

ROUGHING-IN DIMENSIONS

• To assure proper positioning in relation to wall.
Note roughing-in dimensions.
FINISHED WALL
4-1/4" REF.
(108 mm)
4-1/2"
(115 mm)
6" REF.
(152 mm)
74" FOR HEAD
CLEARANCE
18" OPTIONAL
(457 mm)
5-1/2" REF.
(140 mm)
TOP OF TUB RIM
BOTTOM OF TUB
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2018
INSTALLATION
INSTRUCTIONS
Phillips Screwdriver
Teflon Tape Flat Blade Screwdriver
3/4"" TO 2-3/8"
(19 TO 60 mm)
1/2" (13 mm) NPT
OPTIONAL TO FINISHED
FLOOR USUALLY
BETWEEN 65'' AND 80''
(1651 and 2032 mm)
2-3/4" MAX. (69 mm)
1-3/4" MIN. (45 mm)
7-1/2" DIA.
(191 mm)
1-1/2" REF.
(38 mm)
1/2" COPPER
4"
TU385500
TU385500WD
TU385501
TU385501XH
TU385501WDXH
TU385502
TU385502WD
TU385502WDXH
Adjustable Wrench
1 1

CARTRIDGE INSTALLATION

• Remove PLASTER GUARD (6)
(Keep it installed for thin wall Installation).
• Remove BONNET NUT (1) by unthreading it
Counter clockwise. Remove test CAP (2).
• Remove PROTECTIVE HOUSING (3) from
CARTRIDGE (4). Install with "UP" text on top.
• Reinstall BONNET NUT (1) onto VALVE BODY (5)
and tighten firmly with 12 Nm or 9 lbs/ft.
2
NOTE: Specified tightening torque
of BONNET NUT (1) is critical to
assure sealing function.
- 1 -
H
C
O ff
Channel Locks
5
1
3
4
M965937 Rev. 1.0 (12/18)
6
