Summary of Contents for WAXIE VERSA ll

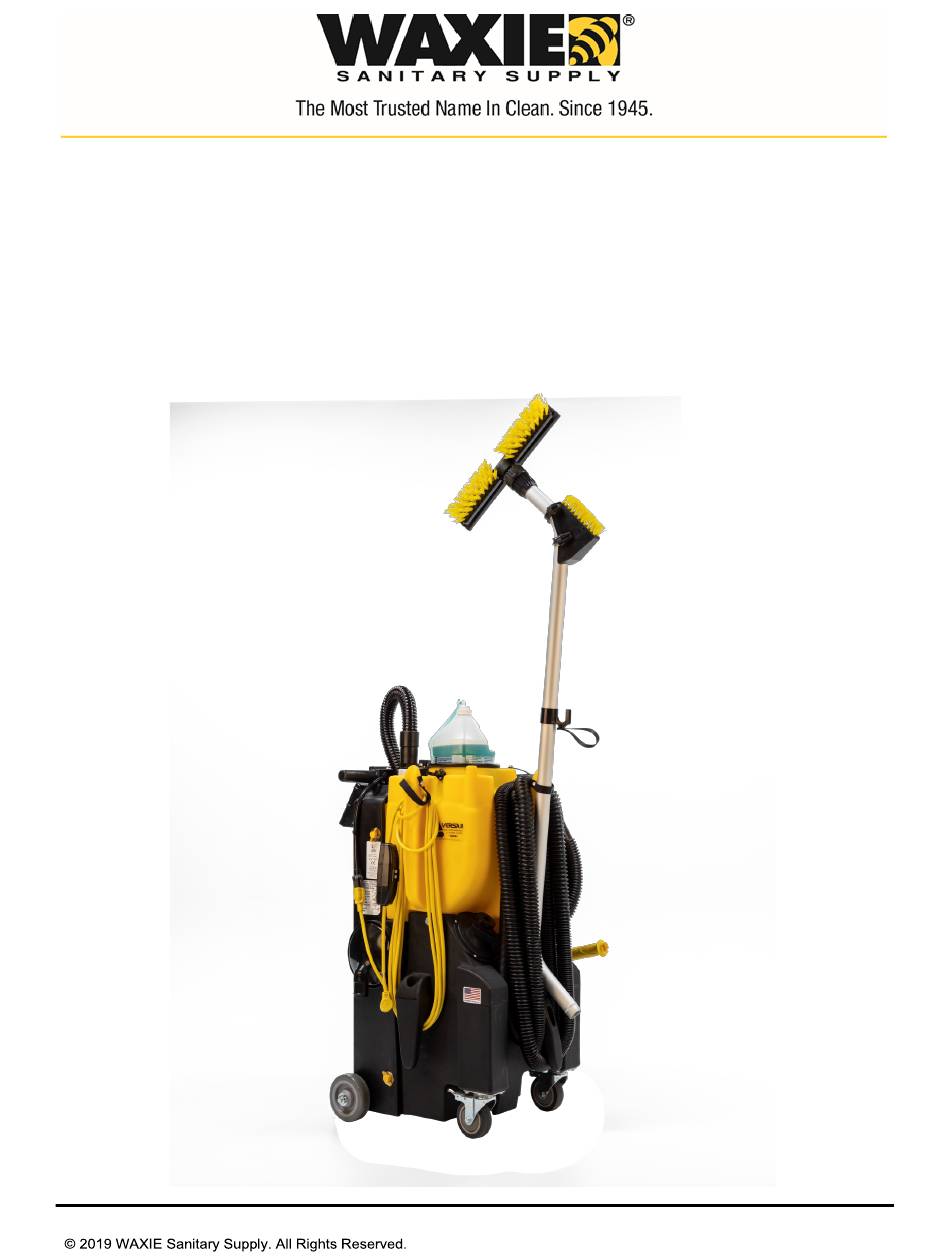

- Page 1 WAXIE VERSA ll Operator and Parts Manual Corporate Headquarters | 9353 Waxie Way | San Diego, CA 92123 | (800) 995-4466 | www.waxie.com...
- Page 2 Modified Rotomold Warranty to 5 years. NOTE: Specifications and parts are subject to change without notice Kaivac, Inc. 401 S. Third Street Hamilton, OH 45011 Page i Corporate Headquarters | 9353 Waxie Way | San Diego, CA 92123 | (800) 995-4466 | www.waxie.com...
-
Page 3: Table Of Contents
Squeegee Head Maintenance ................3-2 Black Box Removal Instructions ................3-3 Troubleshooting ...................... 3-4 Machine Diagrams ....................3-7 Parts List ......................3-19 Page ii Corporate Headquarters | 9353 Waxie Way | San Diego, CA 92123 | (800) 995-4466 | www.waxie.com... -
Page 4: Getting Started
GETTING STARTED Limited Warranty Protection Plan The WAXIE VERSA II has been engineered and tested to provide long lasting performance. This warranty covers defects in workmanship or materials under normal use and service from the date of purchase. Kaivac, Inc. warrants the following components to be free from defects in materials and workmanship for these time periods: 1.) Extended Warranty for end users who use only Kaivac chemicals for the life of the machine. -
Page 5: Warranty Registration Form
Thank you for registering for our warranty program. Please return completed forms to: Kaivac, Inc. 401 S. Third Street Hamilton, OH 45011 Or Fax to: (513) 887-4601 Page 1-2 Corporate Headquarters | 9353 Waxie Way | San Diego, CA 92123 | (800) 995-4466 | www.waxie.com... -
Page 6: Safety Precautions
Personal Protective Equipment (PPE): It is recommended to wear proper personal protective equipment as required by the chemical product label instructions used in conjunction with the Kaivac. FOR INDOOR USE ONLY Page 1-3 Corporate Headquarters | 9353 Waxie Way | San Diego, CA 92123 | (800) 995-4466 | www.waxie.com... -
Page 7: Out-Of-Box Setup Instructions
Place extra tools in tote bag and hang bag over nose of machine. Remove the Vacuum Hoses from the Accessory Box. Assemble as shown. Attach to Vac Tank Page 2-1 Corporate Headquarters | 9353 Waxie Way | San Diego, CA 92123 | (800) 995-4466 | www.waxie.com... -
Page 8: Waxie Versa Ii Tool Arrangement
DryVac Complete (DRYVACRK) Front 58KAIDRYVACRK Bottom Cover Plate (BPLATE1200) Vac Hose (VHST45) 58KAIBPLATE1200 58KAIVHST45 Left Right Placards (PLCRD) 58KAIPLCRD Overhead View Bottom View Page 2-2 Corporate Headquarters | 9353 Waxie Way | San Diego, CA 92123 | (800) 995-4466 | www.waxie.com... - Page 9 6. Plug in machine and test GFCI (Ground Fault Circuit Interrupter) to ensure it is work- ing properly. You are now ready. Page 2-3 Corporate Headquarters | 9353 Waxie Way | San Diego, CA 92123 | (800) 995-4466 | www.waxie.com...
-
Page 10: 1200 Series Vac Tank Horn Operation
Once hose is off and on floor turn on vac motor and proceed extracting. Place hand behind vac hose and slide forward off of horn onto floor. Page 2-4 Corporate Headquarters | 9353 Waxie Way | San Diego, CA 92123 | (800) 995-4466 | www.waxie.com... - Page 11 Fan Spray LOW Pressure Mode Manually brush anual heavily soiled areas Brush Fresh Water ressure wash and rinse HIGH Pressure Mode xtract Page 2-5 Corporate Headquarters | 9353 Waxie Way | San Diego, CA 92123 | (800) 995-4466 | www.waxie.com...
-
Page 12: Maintenance
Apply grease when done. HEPA Filter Replace every 3-6 months depending on use Page 3-1 Corporate Headquarters | 9353 Waxie Way | San Diego, CA 92123 | (800) 995-4466 | www.waxie.com... -
Page 13: Black Box Removal Instructions
Locate and disconnect the water line and return the yellow tanks upward until standing upright line behind the black box on the machine Page 3-2 Corporate Headquarters | 9353 Waxie Way | San Diego, CA 92123 | (800) 995-4466 | www.waxie.com... -
Page 14: Troubleshooting
Dry blow line Blow Dry System Suction, not blow action Vacuum hose connected Reconnect to vac motor exhaust hose to vac tank Page 3-3 Corporate Headquarters | 9353 Waxie Way | San Diego, CA 92123 | (800) 995-4466 | www.waxie.com... - Page 15 Remove and rein- stall Kink in Chemical line Replace Chemical line Page 3-4 Corporate Headquarters | 9353 Waxie Way | San Diego, CA 92123 | (800) 995-4466 | www.waxie.com...
- Page 16 Squeegee wheels worn Check wheels for wear / replace Sucks to the floor too Squeegee wheels worn Check wheels for wear / tightly replace Page 3-5 Corporate Headquarters | 9353 Waxie Way | San Diego, CA 92123 | (800) 995-4466 | www.waxie.com...
- Page 17 VACUUM DIAGRAM Page 3-6 Corporate Headquarters | 9353 Waxie Way | San Diego, CA 92123 | (800) 995-4466 | www.waxie.com...
- Page 18 3.4 PUMP DIAGRAM Page 3-7 Corporate Headquarters | 9353 Waxie Way | San Diego, CA 92123 | (800) 995-4466 | www.waxie.com...
- Page 19 3.4 ELECTRICAL DIAGRAM Page 3-8 Corporate Headquarters | 9353 Waxie Way | San Diego, CA 92123 | (800) 995-4466 | www.waxie.com...
-
Page 20: Machine Diagrams
MACHINE DIAGRAMS Page 3-9 Corporate Headquarters | 9353 Waxie Way | San Diego, CA 92123 | (800) 995-4466 | www.waxie.com... - Page 21 MACHINE DIAGRAMS Page 3-10 Corporate Headquarters | 9353 Waxie Way | San Diego, CA 92123 | (800) 995-4466 | www.waxie.com...
- Page 22 MACHINE DIAGRAMS Page 3-11 Corporate Headquarters | 9353 Waxie Way | San Diego, CA 92123 | (800) 995-4466 | www.waxie.com...
- Page 23 MACHINE DIAGRAMS Page 3-12 Corporate Headquarters | 9353 Waxie Way | San Diego, CA 92123 | (800) 995-4466 | www.waxie.com...
- Page 24 MACHINE DIAGRAMS Page 3-13 Corporate Headquarters | 9353 Waxie Way | San Diego, CA 92123 | (800) 995-4466 | www.waxie.com...
- Page 25 PART NO. PART DESCRIPTION 58KAIHCOVER HCOVER HEPA COVER 58KAIFKEEP2 FKEEP2 HEPA FILTER KEEPER 58KAIHEPA HEPA HEPA FILTER 58KAIHEPAH2 HEPAH2 HEPA FILTER HOUSING Page 3-14 Corporate Headquarters | 9353 Waxie Way | San Diego, CA 92123 | (800) 995-4466 | www.waxie.com...
- Page 26 MACHINE DIAGRAMS Page 3-15 Corporate Headquarters | 9353 Waxie Way | San Diego, CA 92123 | (800) 995-4466 | www.waxie.com...
- Page 27 MACHINE DIAGRAMS Page 3-16 Corporate Headquarters | 9353 Waxie Way | San Diego, CA 92123 | (800) 995-4466 | www.waxie.com...
- Page 28 MACHINE DIAGRAMS Page 3-17 Corporate Headquarters | 9353 Waxie Way | San Diego, CA 92123 | (800) 995-4466 | www.waxie.com...
-
Page 29: Parts List
CSS48 - 3/8 SST LARGE OD WASHER FIG8LABEL - FIGURE 8 LABEL 1-1/4 X 3-1/4 WXLAB2 - WAXIE NAME LABEL VERSA 2 Page 3-18 Corporate Headquarters | 9353 Waxie Way | San Diego, CA 92123 | (800) 995-4466 | www.waxie.com... - Page 30 58KAIVLJHA VAC LID JUG HOLDER ASSEM (VLJHA) 58KAIVLJH VLJH - VAC LID , JUG HOLDER 58KAIHGAS HGAS - HEPA BLOW COVER GASKET Page 3-19 Corporate Headquarters | 9353 Waxie Way | San Diego, CA 92123 | (800) 995-4466 | www.waxie.com...
- Page 31 CSS21F - SNAP GRIP HOSE CLAMP SIZE C 58KAICSS21F 58KAISPH18 SPH18 - 2 WAY VALVE HOSE FOR KV1250 SPH24 - ELEC BOX CHEMICAL HOSE 24 IN 580042 Page 3-20 Corporate Headquarters | 9353 Waxie Way | San Diego, CA 92123 | (800) 995-4466 | www.waxie.com...
