INDICE GENERAL
INDICE DE MONTAJE

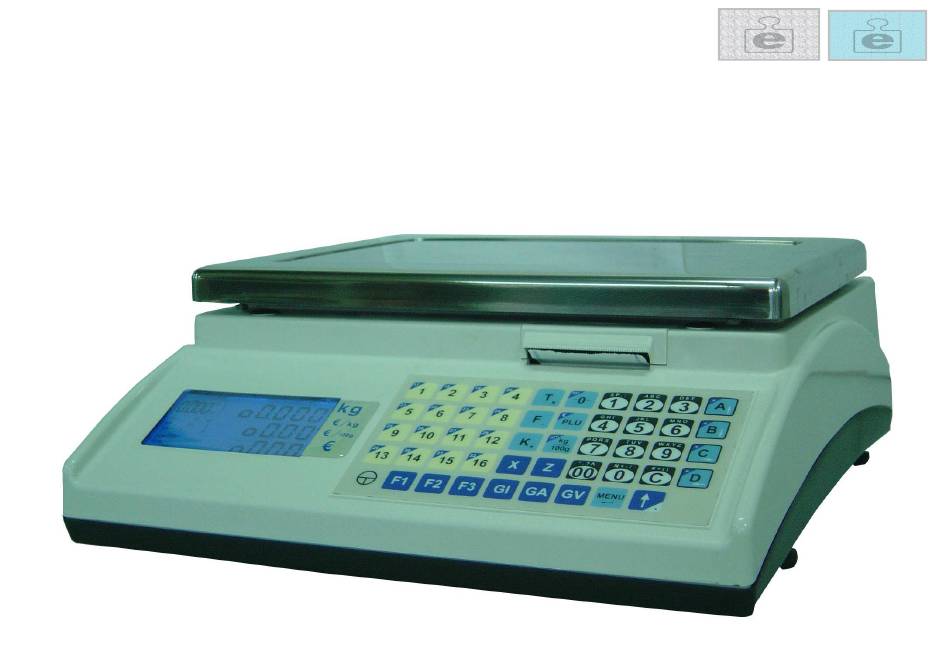

ASSEMBLING SCALE MARTE V4 ILC 49 KEYS

Advertisement

loading
Need help?

Need help?

Do you have a question about the MARTE V4 ILC and is the answer not in the manual?

Questions and answers

Related Manuals for Epelsa MARTE V4 ILC

Summary of Contents for Epelsa MARTE V4 ILC

  • Page 1 INDICE GENERAL INDICE DE MONTAJE ASSEMBLING SCALE MARTE V4 ILC 49 KEYS...
  • Page 2 INDICE GENERAL INDICE DE MONTAJE ASSEMBLING SCALE MARTE V4 ILC 49 KEYS 1. ASSEMBLY THE UP CROSS 2. ASSEMBLY THE CROSS LOWER 3. ASSEMBLY BACK DISPLAY 4. ASSEMBLY THE PACKAGE FOR PRINTER 5. ASSEMBLY SET MOTOR 6. ASSEMBLY UP FRAME 6.1.- ASSEMBLY PRINTER AND MOTOR...
  • Page 3 1.- ASSEMBLY THE UP CROSS The P/N and numbers between brackets are in the Anexo Nº 1 INDICE DE MONTAJE INDICE GENERAL 4 by P/N 72012006 (34) 71002269 (21) 4 by P/N 71000097 (16) 4 by P/N 72101008 (42)
  • Page 4 INDICE GENERAL INDICE DE MONTAJE FOUR SCREW FOUR RUBBER STOP...
  • Page 5 INDICE GENERAL INDICE DE MONTAJE DETAIL SCREW, NUT AND RUBBER STOP...
  • Page 6 2.- ASSEMBLY CROSS LOWER INDICE GENERAL INDICE DE MONTAJE 2 by P/N 72062032 (37) 71002269 2 by P/N 73003001 (44) P/N 97003175 (59)
  • Page 7 INDICE GENERAL INDICE DE MONTAJE ASSEMBLY LOAD CELL TO CROSS LOWER TIGHTEN WITH A REGULATED TOOL TO A P/N 71002279 SCREW (37) TIGHTENING TORQUE 11 WASHERS (44) P/N 97003175...
  • Page 8 INDICE GENERAL INDICE DE MONTAJE CROSS LOWER ASSEMBLY...
  • Page 9 ASSEMBLY BACK DISPLAY INDICE GENERAL INDICE DE MONTAJE P/N 70004934 (12) P/N 71004299 P/N 19138263 (27) (66) To remove the sticker protector glass. 2 by 72090054 (39)
  • Page 10 Embedded in the INDICE GENERAL INDICE DE MONTAJE display tabs To hold whith two screws...
  • Page 11 INDICE DE MONTAJE TO STICK IN THIS PLACE INDICE GENERAL...
  • Page 12 4.- ASSEMBLY THE PACKAGE FOR PRINTER INDICE DE MONTAJE P/N 71004311 (38) P/N 98001045 (8) INDICE GENERAL 2 by P/N 72056006 (61) P/N 72090054 (52) P/N 90113847 (74) P/N 19185820 (78) 4 by P/N P/N 98002304 (77) 72056002 (80)
  • Page 13 PREPARING THE PRINTER INDICE GENERAL INDICE DE MONTAJE We must remove the opto from this position and should be put as follows.
  • Page 14 INDICE GENERAL INDICE DE MONTAJE Put it like you see here.
  • Page 15 INDICE GENERAL INDICE DE MONTAJE To cut the ground wire here.
  • Page 16 INDICE GENERAL TO PUT PCB CONNECTORS IN SUPPORT PRINTER INDICE DE MONTAJE TO FIT THE CONNECTORS PCB WITH 4 SCREWS P/N 72056002 AT SUPPORT CABLE CONNECTION PRINTER (57) AT CONNECTORS PCB (60)
  • Page 17 INDICE GENERAL INDICE DE MONTAJE TO PUT OPTOCOUPLER AT THIS POSITION CHAMFER C0NNECTING THE PRINTER CABLES ON CONNECTORS PCB...
  • Page 18 INDICE GENERAL INDICE DE MONTAJE TO FIT PRINTER WITH SCREW P/ N 72090054...
  • Page 19 INDICE GENERAL INDICE DE MONTAJE To hold the printer cable with a bridle.
  • Page 20 INDICE GENERAL INDICE DE MONTAJE TO FIT PRINTER WITH TWO SCREWS P/N 72056006...
  • Page 21 5.- ASSEMBLY SET MOTOR P/N 71004306 (42) INDICE GENERAL INDICE DE MONTAJE 2 BY P/N 72059007 (49) P/N 71004305 (41) P/N 90102041 (72) P/N 72056007 (47) P/N 92001037 (5) P/N 71000099 (21) P/N 98001041 (7) P/N 71004240 (33) P/N 72091043 (56) P/N 72190004 (59) 2 BY P/N 72091037 (54)
  • Page 22 INDICE GENERAL INDICE DE MONTAJE 2 BY P/N 72091037 P/N 71004305 (41) P/N 98001041 (7) P/N 71004241 (34) P/N 72091043 (56) P/N 71000099 (21) P/N 71004240 (33)
  • Page 23 INDICE GENERAL INDICE DE MONTAJE P/N 72190004 (59)
  • Page 24 INDICE GENERAL INDICE DE MONTAJE...
  • Page 25 6.- ASSEMBLY UP INDICE GENERAL INDICE DE MONTAJE FRAME UP FRAME P/N 71004372 (39)

  • Page 26: Table Of Contents

    6.- ASSEMBLY UP INDICE GENERAL INDICE DE MONTAJE FRAME P/N 70004934 (13) 2 BY P/N P/N 72090053 (51) 72059007 (49) SET MOTOR P/N 71004304 (40) P/N 90113892 (75) P/N 71004306 (42) P/N 72056007 (47) 2 by P/N 73114004 (63) SET PRINTER P/N 70000949 (11) P/N 71004310 (32)

  • Page 27: Assembly Up

    6.- ASSEMBLY UP INDICE GENERAL INDICE DE MONTAJE FRAME P/N.- 71004422...

  • Page 28: Frame P/N 70004934

    6.1.- ASSEMBLY INDICE GENERAL INDICE DE MONTAJE PRINTER AND MOTOR FRAME P/N 71004372 (39) SET PRINTER P/N.- 71004422 SCREW P/N SCREWS 72090053 72059007 (49) MOTOR 72056007 (47) 71004306 (42)
  • Page 29 6.1.- ASSEMBLY PRINTER AND INDICE GENERAL MOTOR (DETAIL ) INDICE DE MONTAJE SET PRINTER P/N.- 71004422 FRAME P/N 71004372 (39) SCREW P/N 72090053...

  • Page 30: P/N 71004304

    INDICE GENERAL INDICE DE MONTAJE P/N 71004310 P/N 71004304 P/N 70004934...

  • Page 31: P/N 90113892

    6.2 ASSEMBLY POWER SUPPLY CABLE INDICE GENERAL INDICE DE MONTAJE P/N 90113892 (EACH END IS ABOUT 4 CM) 70000949 P/N 73114004...
  • Page 32 6.3.- ASSEMBLY PRINTER COMAND BOARD INDICE GENERAL INDICE DE MONTAJE P/N 71004375 (18) AND KEYBOARD 3 by P/N 72090054 P/N 19173800 (4) P/N 19061026 (46) (39) 4 BY P/N 73100005 6 by P/N 72056002 (62) 2 by P/N 73100002...
  • Page 33 INDICE GENERAL INDICE DE MONTAJE...
  • Page 34 INDICE GENERAL INDICE DE MONTAJE 73100005...
  • Page 35 INDICE GENERAL INDICE DE MONTAJE CONNECTING THE POWER CORD AT PRINTER COMAND BOARD CONNECTING MOTOR CONNECTING OPTOCOUPLER...
  • Page 36 INDICE GENERAL INDICE DE MONTAJE CONNECTION DETAIL...
  • Page 37 INDICE GENERAL INDICE DE MONTAJE TO FIX PRINTER CONMAND BOARD WITH 3 SCREW P/N 72090054 TO CONNECT PRINTER CABLE P/N 71004375 6 BY P/N 72056002 KEYBOARD 19061026...
  • Page 38 INDICE GENERAL INDICE DE MONTAJE 6.4.- ASSEMBLY MAIN BOARD P/N 19113400 To remove the sticker protector glass. 3 by P/N P/N 90113894 72090054 P/N 90113807 93002031 and Double-sided adhesive P/N 90101133...
  • Page 39 INDICE GENERAL INDICE DE MONTAJE P/N 93002031 (5) Double-sided adhesive 79900062...
  • Page 40 INDICE GENERAL INDICE DE MONTAJE Cut the glue and paste it into the casing of ferrite...
  • Page 41 CONECTION CABLE P/N INDICE DE MONTAJE CONECTION TO FIX MAIN BOARD WITH 3 90113894 BETWEEN POWER CORD TO SCREW P/N 72090054 KEYBOARD AND MAIN MAIN BOARD INDICE GENERAL BOARD...
  • Page 42 INDICE GENERAL INDICE DE MONTAJE Ferrite placement on the wire...
  • Page 43 Connector where INDICE GENERAL INDICE DE MONTAJE it connects the cable place where to stick ferrite and placement wiring...
  • Page 44 INDICE GENERAL INDICE DE MONTAJE CONECTION CABLE P/N 90101133 TO BACK DISPLAY...
  • Page 45 INDICE GENERAL INDICE DE MONTAJE 6.5.- ASSEMBLE CROSS LOWER 4 by 72031030 (35) 4 by 72102007 (43)
  • Page 46 INDICE GENERAL INDICE DE MONTAJE To cut the ground wire here.
  • Page 47 INDICE GENERAL INDICE DE MONTAJE Solder wires into the connector CN7 and protected with termoretractil BLACK GREEN WHITE...
  • Page 48 INDICE GENERAL INDICE DE MONTAJE 4 by 72102007 Passe cable through the hole...
  • Page 49 INDICE GENERAL INDICE DE MONTAJE Tool to center the lower cross.
  • Page 50 INDICE GENERAL INDICE DE MONTAJE SCREWS P/N 72031030 Screwdriver, tightening the screws Utensils to focus cross lower...
  • Page 51 INDICE GENERAL 6.6.- ASSEMBLE BACK DISPLAY INDICE DE MONTAJE SET BACK DISPLAY 73100002 P/N 71000106 (17) by P/N 71004209 (25)
  • Page 52 INDICE GENERAL INDICE DE MONTAJE 6 by P/N 71004209...
  • Page 53 INDICE GENERAL INDICE DE MONTAJE TO STICK P/N 71000106 (WIDTH INWARDS) Collect the cable and subjects with a TO CONNECT flange CABLE TO SET BACK DISPLAY...
  • Page 54 INDICE GENERAL INDICE DE MONTAJE TO PUT BACK DISPLAY AT YOUR PLACE...
  • Page 55 6.7.- ASSEMBLY BATTERY, LABEL LABEL PAPER P/N INDICE DE MONTAJE 70010068A (15) PAPER, AND KEYBOARD MASK. TAPE EXTRACTION BATTERY P/N INDICE GENERAL 79500140 P/N 99009019 (9) P/N 71601241 (23) P/N 71001710 (24) P/N 71004250 (36) P/N 71004016 (27)
  • Page 56 INDICE GENERAL INDICE DE MONTAJE To pass the tape To connect the extraction P/N fastons to the 79500140 by the battery battery and put in its place P/N 71004016 70010068A To pass the axle p/n 71004250 by printer paper and put it at place . To pass the TO PUT THE AXEL P/ paper by the hollow of the printer until the N 71001710 (24) AT...
  • Page 57 LOCATE THE LABEL ROLL INDICE GENERAL INDICE DE MONTAJE AS INDICATED IN THE APPENDIX 1...
  • Page 58 6.8.- ASSEMBLY UP COVERS P/N 71004185 (29) INDICE GENERAL INDICE DE MONTAJE P/N 71004249 (35) P/N 71000075 (19) P/N 70010069 (16)
  • Page 59 INDICE GENERAL INDICE DE MONTAJE To stick the label that say to load the P/N 71004249 To stick the esponge in paper load the position shown in P/N 71004185 the photo.
  • Page 60 6.9.- ASSEMBLY UP CROSS INDICE GENERAL INDICE DE MONTAJE 2 by 72062032 (37) SET UP CROSS 2 BY 73003001 (44)
  • Page 61 INDICE GENERAL INDICE DE MONTAJE Wrench to adjust to 11 Nw...
  • Page 62 Tighten the two screws INDICE GENERAL INDICE DE MONTAJE with the wrench adjusted to 11 Nw To put the cover To put the cover p/n p/n 71004185 71004249 2 by 2 by 73003001 72062032...
  • Page 63 ADJUST THE LIMITS OF LOAD CELL AND 6.10.- INDICE GENERAL INDICE DE MONTAJE PUT PAN SCALE Screwdriver, hex 7 ADJUST THE FOUR CORNERS OF THE CROSS OF LOAD CELL Placing a gauge of 1.8 mm between the case and the screw. Move the screw until they touch with the gauge.
  • Page 64 INDICE GENERAL INDICE DE MONTAJE 4 LOAD CELL CORNERS ADJUSTED...
  • Page 65 INDICE GENERAL INDICE DE MONTAJE 71210312 70010039...
  • Page 66 INDICE GENERAL INDICE DE MONTAJE TO PASTE WARNING LABEL BELOW PLATE SCALE...
  • Page 67 INDICE GENERAL INDICE DE MONTAJE TO PUT THE PLATE SCALE P/N 71210312 IN THIS POINT YOU MUST CHECK THE FUNCTIONALITY OF THE SCALE. IT IS ADVISABLE BEFORE CONTINUING IN ORDER TO DETECT ANY PROBLEM. THE NEXT PAGES EXPLAIN HOW TO CHEK THE DISPLAY, KEYBOARD AND THE WEIGHT.
  • Page 68 INDICE GENERAL INDICE DE MONTAJE 7.- VERIFICATION 7.1.-VERIFICATIÓN OF DISPLAYS AND KEYBOARD 1. MAKE SURE TO CHECK BOTH DISPLAYS, THE BACK AND THE FRONT ONE. YOU CAN, FOR INSTANCE, TO USE A MIRROR IN THE REAR TO GET IT EASILY. 2.
  • Page 69 INDICE GENERAL INDICE DE MONTAJE TO PUT THE SCALE AT ILC MODE 1.- DURING UP COUNT PRESS THE KEYS AND THE SCALE GO RESET-DOWN AND START THE COUNT CICLE. AT THE DISPLAY YOU MUST SEE THE FOUR NUMBER AT THE RIGHT “0”...
  • Page 70 INDICE GENERAL INDICE DE MONTAJE THE SCALE MAKES THE CALIBRATION OF “ZERO”. THIS PROCESS CAN BE INSTANTANEOUS OR TAKE A FEW SECONDS, IF THE WEIGHT IS NOT STABLE. FOR AS LONG AS THIS IS MAKING THE CALIBRATION OF ZERO, ARE DISPLAYED ON THE DISPLAY POINTS OF ZERO.
  • Page 71 7.2.- WEIGHT VERIFICATION INDICE GENERAL INDICE DE MONTAJE (ADJUST) ADJUSTMENT OF THE SCALE TO VERIFY THE WEIGHT (TO SEE APPENDIX 2) . VERIFY THAT ILLUMINATES THE BACK DISPLAY CORRECTLY...
  • Page 72 INDICE GENERAL INDICE DE MONTAJE 7.3 OPTOCOUPLER ADJUSTMENT 1. TAKE LABEL ROLL AND PUT LIKE SHOW NEXT PICTURE. PRESS THE KEYS TILL OUT 2 LABEL. 2. PRESS THE KEY , PRESS 5 TIMES THE KEY , PRESS THE KEYS AND MAKES A TIKET. VERIFY THE CORRECT PRINT QUALITY.
  • Page 73 INDICE GENERAL INDICE DE MONTAJE 3. PRESS THE KEYS AND THE DISPLAY SHOW NEXT PICTURE. MAKE SURE THAT IN THE DISPLAY IS LIGHT THE LABEL MARK. 4. PRESS THE KEYS AT THE DISPLAY SHOW: 5. TAKE 2 LABELS OF LABEL ROLL FROM BACK PRINTER LIKE SHOW AT PICTURE.
  • Page 74 INDICE GENERAL INDICE DE MONTAJE 6. PRESS THE KEY TILL ONLY THE TRANSPARENT PAPER, THIS IS WHITOUT LABEL, IS ON THE PRINTER. PRESS THE KEYS 7. PRESS THE KEY TILL IN PRINTER IS TRANSPARENT PAPER WHITH LABEL, 8. PRESS THE KEY AND THE KEY .
  • Page 75 7.4.- IDENTITY LABELS INDICE GENERAL INDICE DE MONTAJE TO PUT IDENTIFICATION LABELS P/N 70000456 ON: -COMAND BOARD -CABLE COMAND BOARD -CABLE KEYBOARD -MAIN BOARD -LOAD CELL - BATTERY -BACK DISPLAY...
  • Page 76 8.- ASSEMBLY DOWN FRAME INDICE GENERAL INDICE GENERAL INDICE DE MONTAJE INDICE DE MONTAJE P/N 71004179 Remove the (22) plastic tab...
  • Page 77 INDICE GENERAL INDICE DE MONTAJE HOLE AFTER REMOVING THE...
  • Page 78 INDICE GENERAL INDICE DE MONTAJE P/N 71004185 (23) 4 by 72091039 (41) P/N 71000052 4 by P/N 72090053 (14) (38)
  • Page 79 INDICE GENERAL INDICE DE MONTAJE BOTTOM BEFORE PUTTING THE DOWN FRAME...
  • Page 80 INDICE GENERAL INDICE DE MONTAJE 4 SCREWING SCREWS P/N 72090053 4 by P/N 72091039 71000052...
  • Page 81 INDICE GENERAL INDICE DE MONTAJE 9.- ASSEMBLY LEVEL P/N 79000015 P/N 70004308 (48) (11)
  • Page 82 INDICE GENERAL INDICE DE MONTAJE HOT GLUE GUN THROW A LITTLE GLUE INTO THE HOLE TO STICK THE LEVEL.
  • Page 83 INDICE GENERAL INDICE DE MONTAJE P/N 79000015 and P/N 70004308...
  • Page 84 INDICE GENERAL INDICE DE MONTAJE SCALE MARTE V4 IC 49 KEYS FINISHED...
  • Page 85 APPENDIX 1 INDICE GENERAL INDICE DE MONTAJE...
  • Page 86 INDICE GENERAL INDICE DE MONTAJE...
  • Page 87 INDICE GENERAL INDICE DE MONTAJE G R U P O E P E L S A S . L . ( M A D R I D ) H o r a 8 : 5 4 : 4 3 F e c h a 8 .
  • Page 88 INDICE GENERAL INDICE DE MONTAJE G R U P O E P E L S A S . L . ( M A D R I D ) H o r a 8 : 5 4 : 4 3 F e c h a 8 .
  • Page 89 INDICE GENERAL INDICE DE MONTAJE Part Numbers no included in the exploiting of Marte V4 IC Part Number Description Units 000119091002 MANUAL MARTE 10 V4.IC. 000570000456 ETIQ.IDENTIFIC.PLACAS(EN PLIEGO) 573100002 BRIDA UNEX CORTA 2-22 573100005 GRAPA CABLE PLANO 579500140 CINTA EXTRACTORA BATERIA 000579601084 CAJA BALANZA (ECO) 579601086 CANTONERA DERECHA (ECO)
