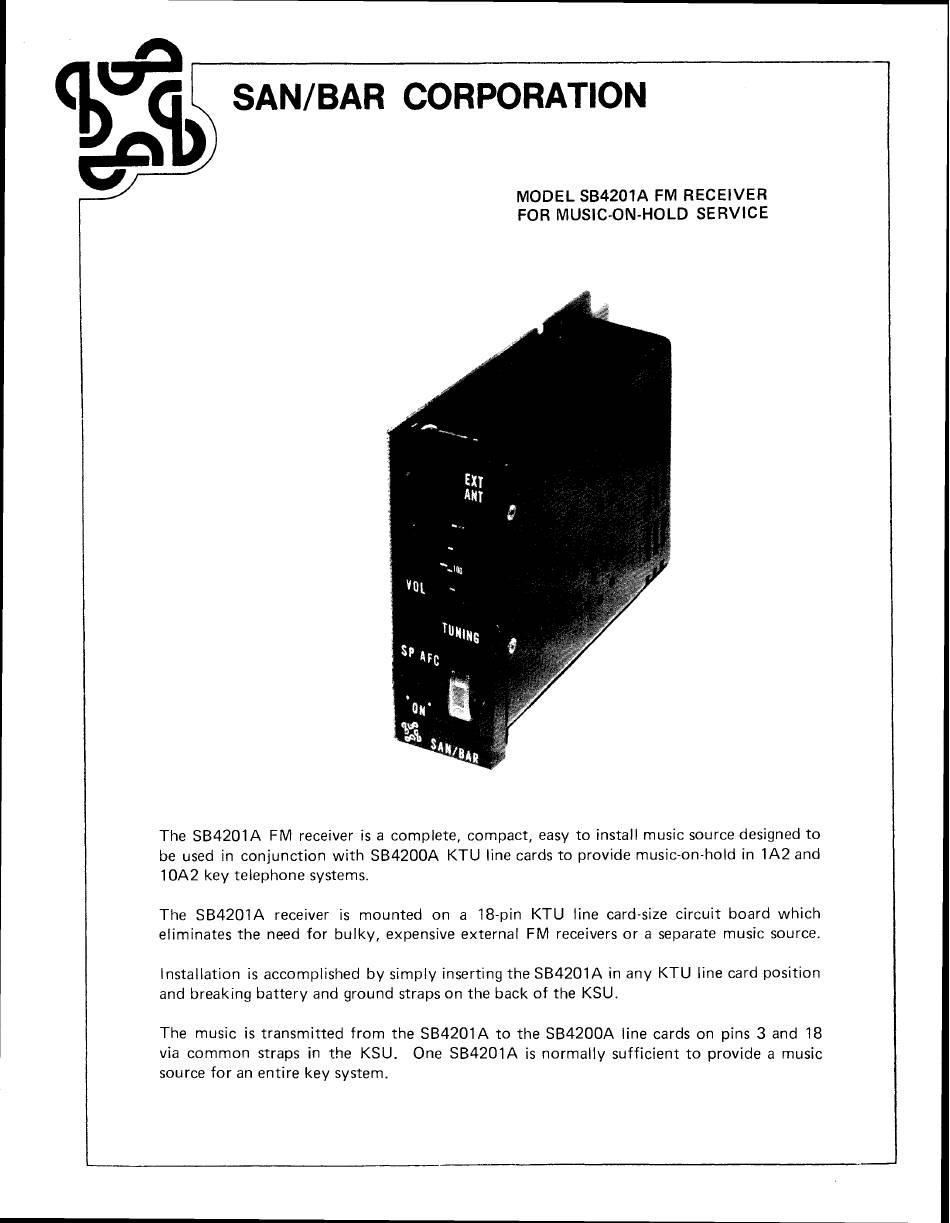

SAN/BAR SB4201A Installation Instructions

MODEL SB4201A FM RECEIVER
FOR MUSIC-ON-HOLD SERVICE
The SB4201A FM receiver is a complete, compact, easy to install music source designed to
be used in conjunction with SB4200A KTU line cards to provide music-on-hold in 1A2 and
10A2 key telephone systems.
The SB4201A receiver i s mounted on
a
18-pin KTU line card-size circuit board which
eliminates the need for bulky, expensive external FM receivers or a separate music source.
Installation i s accomplished by simply inserting the SB4201A in any KTU line card position
and breaking battery and ground straps on the back of the KSU.
The music is transmitted from the SB4201A to the SB4200A line cards on pins 3 and 18
via common straps in the KSU. One SB4201A i s normally sufficient t o provide a music
source for an entire key system.
