Summary of Contents for Steam-e Gum Remover

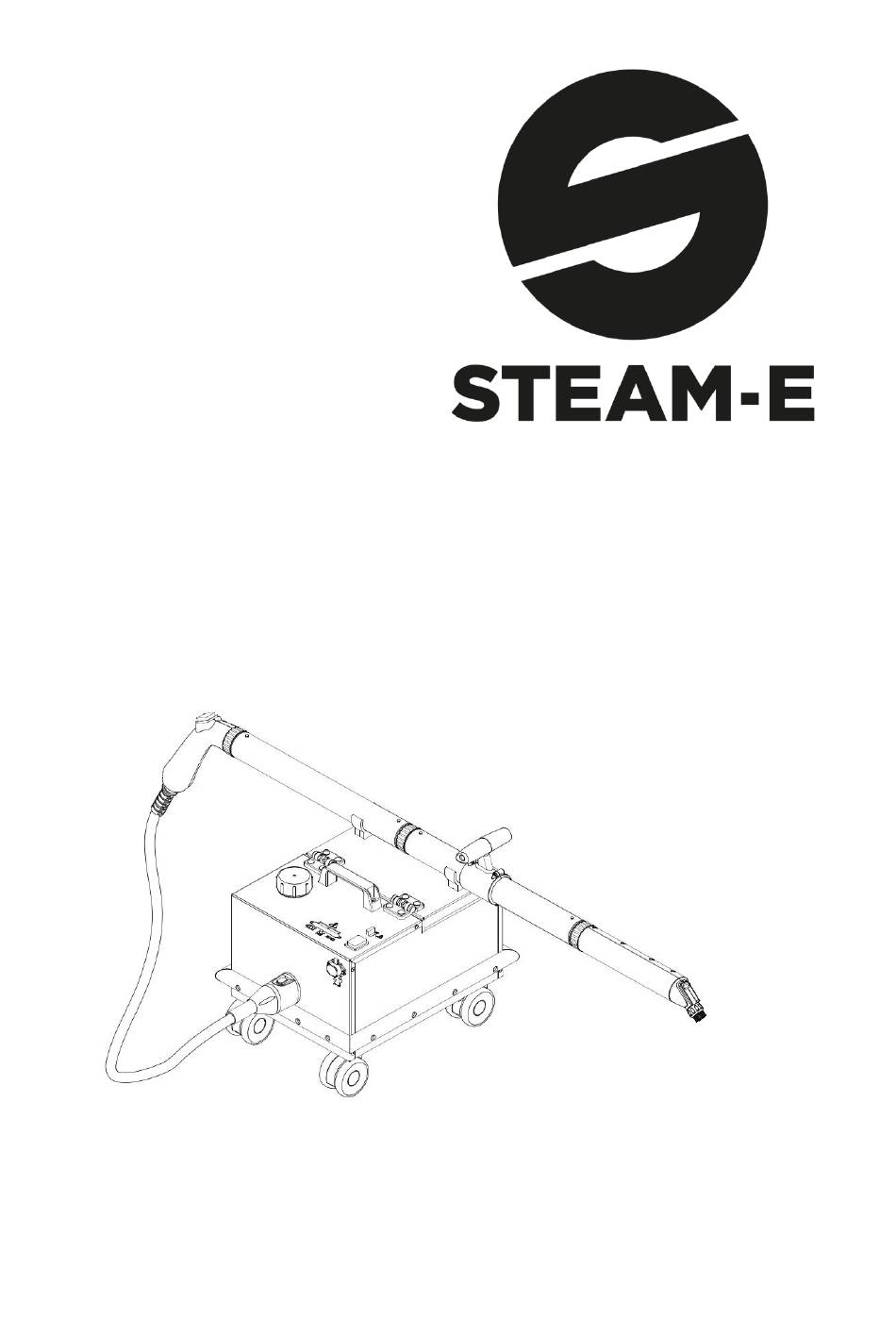

- Page 1 Gum Remover Operating Instructions March 2017 Page 1 of 19...
-
Page 2: Register Your Machine
Owner representative: 12 month warranty registration Thank you for purchasing a Steam-e® product. Warranty registration is quick and easy. Your registration will allow us to serve you better over the lifetime of the product. To register your product, send the above information to: warranty@steam-e.com... -
Page 3: Table Of Contents
TABLE OF CONTENTS General: Register your machine Table of Contents How to Use This Manual Hazard Intensity Levels Safety: Safety Labels Important Safety Instructions Operations: Technical Specifications Dimensions How the Machine Works Lithium Ion Battery Main Components Step 1 – Pre-run set up Step 2 –... -
Page 4: How To Use This Manual
HOW TO USE THIS MANUAL How to Use This Manual: This manual contains the following sections: The SAFETY section contains important information regarding hazardous or unsafe • practices of the machine. Levels of hazards Safety • are identified that could result in product Operations •... -
Page 5: Safety
SAFETY Safety Labels Note: These drawings indicate the location of safety labels on the machine. Page 5 of 19... -
Page 6: Important Safety Instructions
Always keep the nozzle in a downward facing direction when operating to ensure no hot liquid or steam can cause harm to the operator or bystanders. • Only Steam-e® approved gum removal solution and brushes can be used in this appliance. • Pay attention to any of the warning indicators •... - Page 7 SAFETY Report all problems immediately Report machine damage or faulty operation immediately. Do not use the machine if it is not in proper operating condition. Follow important safety information that signals some potentially dangerous conditions to the operator or the equipment. Read this information carefully. Know when conditions can exist.
-
Page 8: Operations
OPERATIONS Technical Specifications Item: Description: Battery Type Lithium Ion Voltage Amp Hours 18 Ah Run Time 3.5 Hours Charge Time 5 Hours Max Operating Temperature 110C (230F) Dimensions Item: Description: Height 370mm (14.56 inches) Width 350mm (13.78 inches Length 435mm (17.13 inches) Hose Length 1500mm (59 inches) Weight... -
Page 9: How The Machine Works
Note: When the machine is being charged the Steam E Limited is the only approved battery LED on the top of the machine will be chemical to be used with the Steam-e solid red. appliance. Using any other chemical, not... -
Page 10: Main Components
OPERATIONS Main Components 1. Extension Pole 7. Handle Plug 8. Warning Indicator LED’s 2. Charging port 3. Machine Power Switch (1 of 2) 9. Battery Compartment 4. Flow Dial 10. Heater Housing 5. Fluid Reservoir 11. Handle Power Switch (2 of 2) 6. -
Page 11: Step 1: Pre-Run Set Up
OPERATIONS STEP 1: Pre-run set up Make sure that the battery is fully charged. Connect the handle plug to the socket on the main unit STEP 2: Assemble the heating assembly Assemble the Heating Assembly based on the gum cleaning needed For a short hand-held wand, attach the heating assembly directly to the handle. -
Page 12: Step 4: Add The Gum Removal Solution
OPERATIONS STEP 4: Add the Gum Removal Solution Empty the concentrated gum removal solution into the fluid reservoir. Fill the remainder of the fluid reservoir with clean cold water. To maintain the correct ratio of water to solution, do not refill the fluid reservoir or add solution until the Fluid LED indicates that the fluid reservoir is less than 10% full. -
Page 13: Step 7: Agitate The Gum With The Brush
OPERATIONS STEP 7: Agitate the gum with the brush Agitate the flattened gum with the brush lightly, with a ‘back and forward’ motion. Note: Do not scrub or apply heavy pressure. The combination of steam, the agitation and chemical combine to destroy gum. -
Page 14: Maintenance
Only use the Steam-e® descale solution to prevent damage to the Gum Remover. Never use setting • or •• when running descale solution as this can cause serious harm if inhaled. -
Page 15: Troubleshooting
There is a loose connection in Re-attach heater and all poles steam the pole NOTE: If the problem persists, contact the distributor you purchased the machine from or email warranty@steam-e.com quoting your serial number and nature of the problem. Page 15 of 19... -
Page 16: Consumables
CONSUMABLES Gum Removal Solution Available from all approved Steam-e® distributors or directly from Steam E Limited, a case of gum removal solution is supplied in 20 x 90ml (3oz) in concentrate form. Each 90ml (3oz) bottle is diluted in the machines internal 3L (.79 Gallon) fluid reservoir and will last for 6 hours on flow setting •... -
Page 17: Terms Conditions And Warranty
Those who choose to access the website www.steam-e.com from other locations do so on their own initiative and are solely responsible for compliance with applicable local laws for the content of the website and any goods purchased. United Kingdom law shall govern any claim relating to the use of this site, the materials contained herein and any purchases made. - Page 18 Online Images of Products: Some product images that feature on the steam-e.com website may vary slightly from that of the actual product delivered, due to the need for designers and developers of products to consistently strive to improve and update the products.
-
Page 19: Warranty
In the event that the seller of the Steam-e® machinery is no longer able to fulfil their obligations, contact Steam E Limited, with the full details of the issue / claim, proof of purchase and your full contact and business details.
