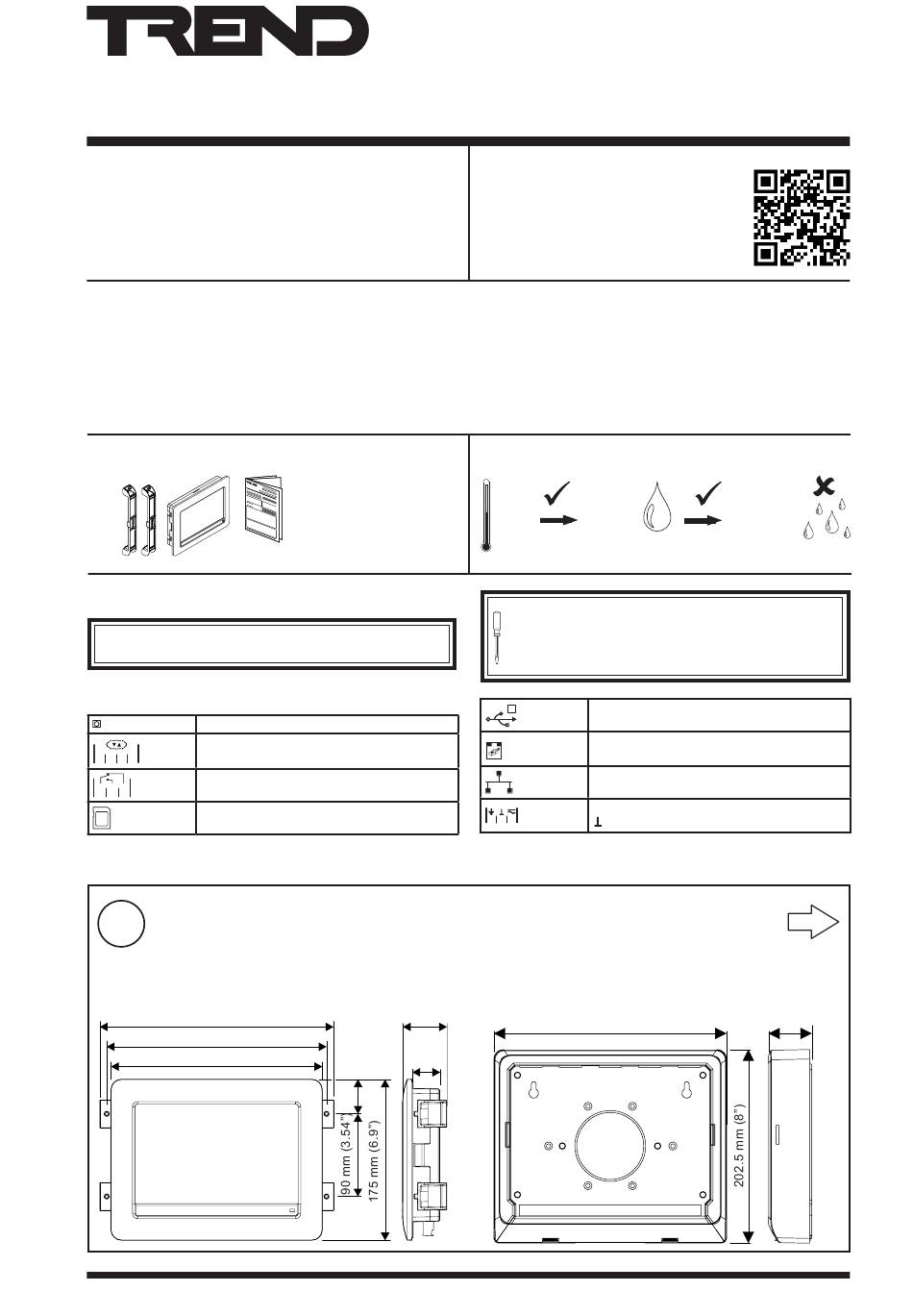

TREND IQVIEW8 Installation Instructions Manual
TREND IQVIEW8 Installation Instructions Manual

TREND IQVIEW8 Installation Instructions Manual

Hide thumbs Also See for IQVIEW8:

Advertisement

Important: Retain these instructions
These instructions shall be used by trained service
personnel only.
If the equipment is used in a manner not
specified by these instructions, the protection provided by the
equipment may be impaired.
CONTENTS
1
Box contents ..................................................................1
2
Storing ...........................................................................1
3
Installation .....................................................................1
3.1
Installation - Mounting ...................................................1
3.2
Installation - On a Wall ..................................................4
3.3
Installation - In a Dry Partition Wall ..............................6
1

BOX CONTENTS

3

INSTALLATION

WARNING Do not attempt to open the unit. Failure to
comply may cause damage to the unit.
Labels used on IQVIEW8
Service button
Connector for Trend current loop network
RX+ RX- TX+ TX-
10 9
8
7
Connector for relay output
C
NO NC
6
5
4
Memory card slot
3.1

Installation - Mounting

Dimensions
1
IQVIEW8 (with mounting brackets)
255 mm (10.02")
239 mm (9.42")
230.0 mm (9.05")
IQVIEW8 Installation Instructions TG201232 Issue 9, 30-May-2017. Applies to v1.30.
https://partners.trendcontrols.com
3.4
3.5
3.6
4
5
6
2
IQ
View8 Installation
®
Instructions (TG201232)
IQVIEW8 SURFACE MOUNTING BOX (Surface Mounting)
48 mm
(1.88")
30 mm
37.7 mm
(1.19")
(1.48")
Installation Instructions
Touch Screen Display
Installation - Power up ...................................................8
Installation - Wiring .......................................................9
Installation - Connect Cables ......................................10
End User Licence Agreement .....................................12
Cleaning and Maintenance .........................................12
Disposal .......................................................................12

STORING

(Altitude: <2000 m (6562'))
+70 °C
-20 °C
(158 °F)
(-4 °F)
H O
2
It is recommended that the installation should comply
with the local electrical safety installation practices (e.g.
HSE Memorandum of Guidance on Electricity at Work
Regulations 1989, USA National Electric Code).
USB A connector
A
RJ11
(FCC68)
RS232
connection
Ethernet connector
Connector for 24 Vac/dc input power.
24 Vac/dc
AC power line return
continued over page
243.5 mm (9.6")
IQ
VIEW8
®
85 %RH
0
up to 40 °C
(104 °C)
connector
for
RS232
46.5 mm (1.83")
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IQVIEW8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TREND IQVIEW8

  • Page 1: Table Of Contents

    IQVIEW8 SURFACE MOUNTING BOX (Surface Mounting) 48 mm (1.88”) 255 mm (10.02”) 243.5 mm (9.6”) 46.5 mm (1.83”) 239 mm (9.42”) 30 mm 37.7 mm 230.0 mm (9.05”) (1.19”) (1.48”) IQVIEW8 Installation Instructions TG201232 Issue 9, 30-May-2017. Applies to v1.30.
  • Page 2 Select Mounting Method IQVIEW8, when configured as recommended, is designed to increase the security of files present or transferred on the removable media (SD card and USB stick). However, for additional security if the unit is in an area of unrestricted access, the panel mount option must be used and the panel door must be locked.
  • Page 3 Connect Cables Follow ‘Installation - Wiring’ Follow ‘Installation - Connect Cables’ on page 9 on page 11 Close Panel Power up IQVIEW8 Follow ‘Installation - Power up’ on page 8 IQVIEW8 Installation Instructions TG201232 Issue 9, 30-May-2017. Applies to v1.30.
  • Page 4: Installation - On A Wall

    (for fl at surface, and UK/US double pattress mounting) Mark hole positions Drill holes and insert plugs 243.5 mm (9.6”) 4 holes Ø = 5 mm (0.20”) 160 mm (6.3”) continued over page 160 mm (6.3”) IQVIEW8 Installation Instructions TG201232 Issue 9, 30-May-2017. Applies to v1.30.
  • Page 5 Wire Connectors Connect Cables Follow ‘Installation - Wiring’ Follow ‘Installation - Connect Cables’ on page 9 on page 11 IQVIEW8 Installation Instructions TG201232 Issue 9, 30-May-2017. Applies to v1.30.
  • Page 6: Installation - In A Dry Partition Wall

    12 mm (0.475”) inside wall (0.26”) 222 mm (8.74”) 9.5 to 25 mm (0.35” to 0.98”) 55 mm Cutout for display (2.17”) 35 mm (1.38”) inside wall for connectors 230 mm (9.05”) IQVIEW8 Installation Instructions TG201232 Issue 9, 30-May-2017. Applies to v1.30.
  • Page 7 Or: Top Edge Cables can be routed inside the wall and Cables can be routed inside the wall and into the rear of the chassis. through the bottom edge of the chassis. IQVIEW8 Installation Instructions TG201232 Issue 9, 30-May-2017. Applies to v1.30.
  • Page 8: Installation - Power Up

    Confi gure IQVIEW8 Confi guration Manual (TE201233). Refer to the ‘Securing IQVIEW8’ section of the manual for details on how to secure IQVIEW8. Normal Operation Fault Power Orange Check power supply IQVIEW8 Installation Instructions TG201232 Issue 9, 30-May-2017. Applies to v1.30.
  • Page 9: Installation - Wiring

    2 wire RX+ RX- TX+ TX- 6  4 6  4 6  4 6  4 6  4 6  4 6  4 6  4 IQVIEW8 Installation Instructions TG201232 Issue 9, 30-May-2017. Applies to v1.30.
  • Page 10: Installation - Connect Cables

    Do not connect 230V input power to this connector. RS232 24 Vac SERVICE 16 17 18 19 13 14 15 Arc suppression recommended. Relay Output Arc Suppression Installation Instructions (TG200208) IQVIEW8 Installation Instructions TG201232 Issue 9, 30-May-2017. Applies to v1.30.
  • Page 11 RJ11 to 25 way D type cable (CABLE/EJ105651). IQ1xx with 5 way in-line connector RJ11 to 25 Way D type cable (CABLE/EJ105651) and 25 way D type socket to 5 in-line adapter cable (CABLE/78-1172). IQVIEW8 Installation Instructions TG201232 Issue 9, 30-May-2017. Applies to v1.30.
  • Page 12: End User Licence Agreement

    Division of Honeywell Technologies Sàrl, Z.A. La Pièce, 16, 1180 Rolle, Switzerland by its Authorized Representative, Trend Control Systems Limited. Trend Control Systems Limited reserves the right to revise this publication from time to time and make changes to the content hereof without obligation to notify any person of such revisions or changes.
