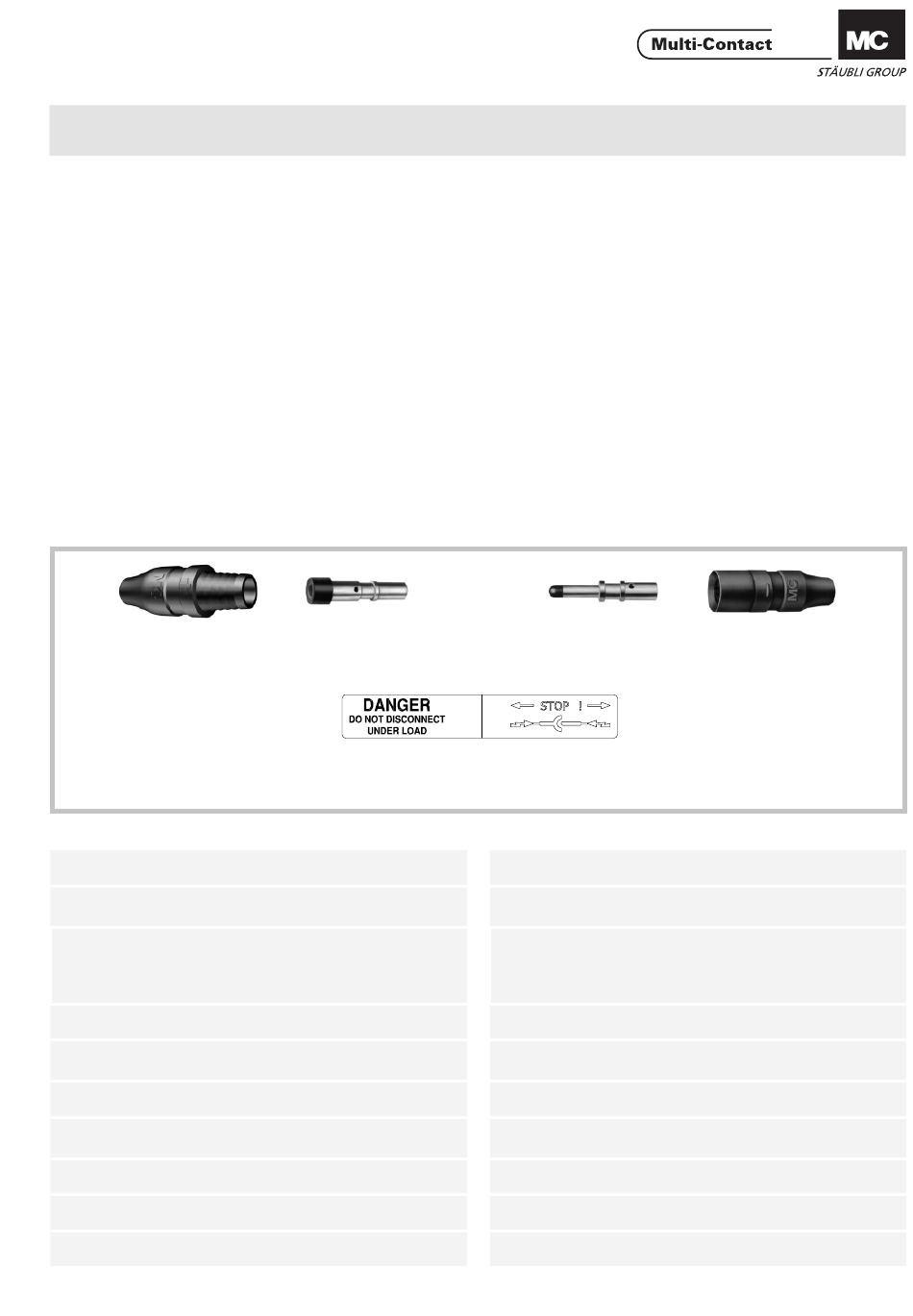

Multi-Contact PV-KBT3 Series Assembly Instructions Manual

Advanced Contact Technology
MA207 (de_en) MA000 (de_en)
Montageanleitung Montageanleitung
PV-Kupplungsbuchse PV-KBT3...
PV-Kupplungsstecker PV-KST3...
Inhalt
Sicherheitshinweise....................................................................2
Erforderliches Werkzeug ...........................................................3
Anschlussleitung .......................................................................4
Vorbereitung der Leitung ...........................................................4
Crimpanschlüsse .......................................................................4
Crimpen .....................................................................................5
- mit Crimpzange PV-CZM-16100A ...........................................5
- mit Crimpzange PV-CZ ............................................................6
Montage ....................................................................................6
Leitungsführung ........................................................................8
Verbindung ................................................................................8
PV-T3.../B
PV-T3.../B-UR*
* UL fi le E343181
Technische Daten
Steckverbindersystem
Bemessungsspannung
Bemessungsstrom
Prüfspannung
Umgebungstemperaturbereich
Obere Grenztemperatur
Schutzart, gesteckt
ungesteckt
Überspannungskat.
Verschmutzungsgrad
Kontaktwiderstand der Steckver-
binder
Schutzklasse
PV-BP3/...
Aufkleber Aufkleber
Sticker Sticker
Ø 3mm
1000V DC (IEC)
600V DC (UL)
2;
20A (2,5 - 4mm
14AWG, 12AWG)
30A (6mm 2 , 10AWG)
2
43A (10mm )
6kV (50Hz, 1min.)
-40°C...+90°C (IEC)
-40°C...+75°C (UL)
105°C (IEC)
IP67
IP2X
CATIII/2
0,5mΩ
II
www.multi-contact.com
MA207 (de_en) MA000 (de_en)
Assembly instructions Assembly instructions
PV female cable coupler PV-KBT3...
PV male cable coupler PV-KST3...
Content
Safety Instructions ......................................................................2
Tools required ............................................................................3
Connecting cable .......................................................................4
Cable preparation ......................................................................4
Crimp connections ....................................................................4
Crimping ....................................................................................5
- with crimping pliers PV-CZM-16100A .....................................5
- with crimping pliers PV-CZ ......................................................6
Assembly ...................................................................................6
Cable routing .............................................................................8
Engagement ..............................................................................8
PV-SP3/...
Technical data
Connector system
Rated voltage
Rated current
Test voltage
Ambient temperature range
Upper limiting temperature
Degree of protection, mated
unmated
Overvoltage category
Pollution degree
Contact resistance of plug con-
nectors
Safety class
PV-T3.../S
PV-T3.../S-UR*
Ø 3mm
1000V DC (IEC)
600V DC (UL)
2;
20A (2,5 - 4mm
14AWG, 12AWG)
30A (6mm 2 , 10AWG)
2
43A (10mm )
6kV (50Hz, 1min.)
-40°C...+90°C (IEC)
-40°C...+75°C (UL)
105°C (IEC)
IP67
IP2X
CATIII/2
0,5mΩ
II
1 / 8
