REAR DOOR PANEL SPEAKER KIT
P/N 2883116
APPLICATION
Verify accessory fitment at Polaris.com.
BEFORE YOU BEGIN
Read these instructions and check to be sure all parts and tools are accounted for.
Please retain these installation instructions for future reference and parts ordering
information.
KIT CONTENTS
This kit contains parts for installation of the REAR door panel speakers only. Prior installation of the following
additional kits is also required (sold separately):
• Amplifier Kit, PN 2882122
• Front Door Panel Speaker Kit, PN 2881989

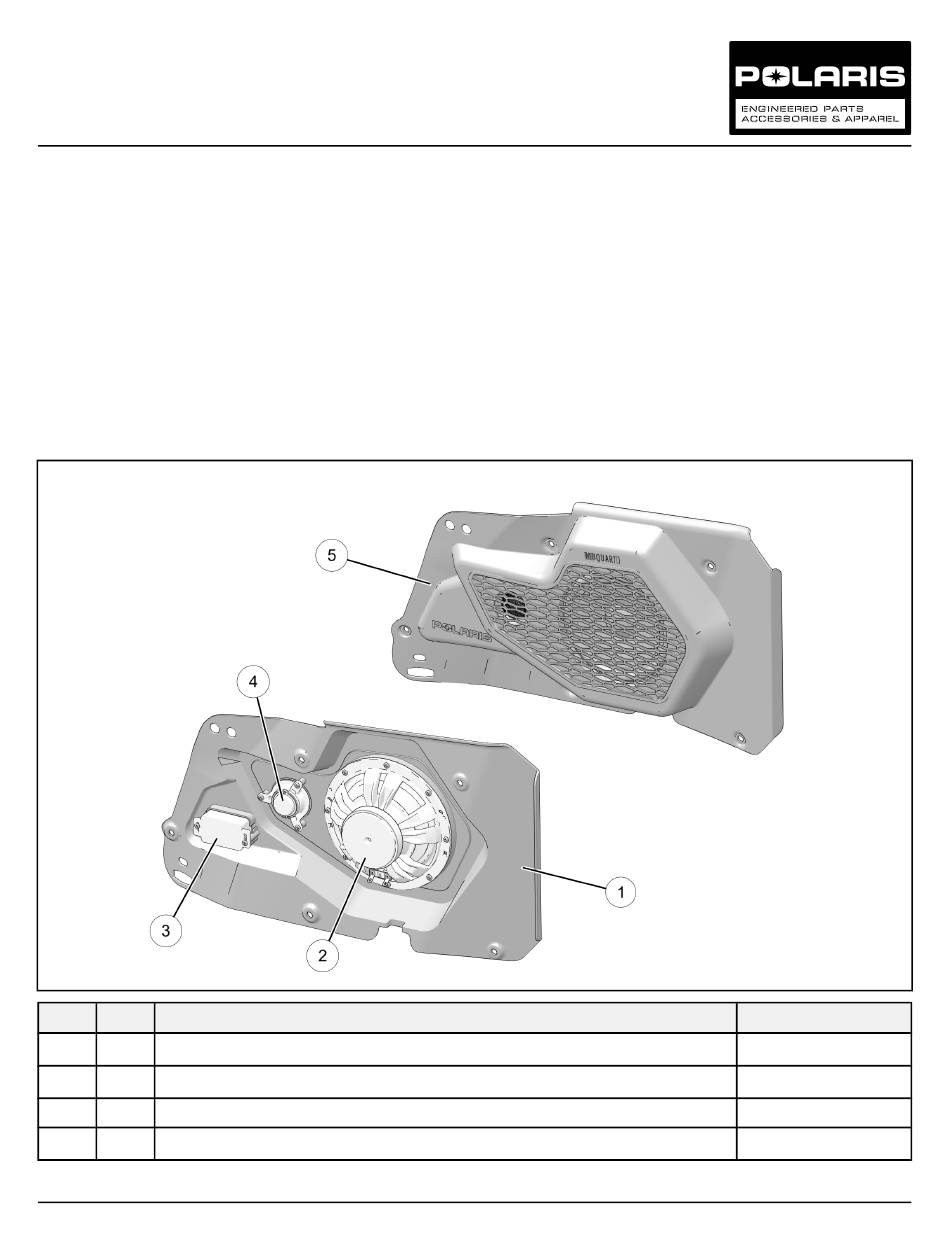

This Kit includes:
REF
QTY
PART DESCRIPTION
1
1
Speaker Assembly, LH (includes items 2–4)
2
1
. Speaker, Woofer
3
1
. Crossover
4
1
. Speaker, Tweeter
Instr 9928521
Rev 01 2017-07
PART NUMBER
2636792
4016257
4016382
4016381
Page 1 of 8
Advertisement
Table of Contents
Summary of Contents for Polaris 2883116
- Page 1 REAR DOOR PANEL SPEAKER KIT P/N 2883116 APPLICATION Verify accessory fitment at Polaris.com. BEFORE YOU BEGIN Read these instructions and check to be sure all parts and tools are accounted for. Please retain these installation instructions for future reference and parts ordering information.
-
Page 2: Tools Required
PART DESCRIPTION PART NUMBER Speaker Assembly, RH (includes items 6–8) 2636793 . Speaker, Woofer (not shown) 4016257 . Crossover (not shown) 4016382 . Speaker, Tweeter (not shown) 4016381 Harness, Splitter, LH (white wires) (not shown) Harness, Splitter, RH (gray wires) (not shown) Harness, Speaker, LH (white wires) (not shown) Harness, Speaker, RH (gray wires) (not shown) Cable Tie (not shown) - Page 3 HARNESS DETAIL NOTE LH and RH harnesses identical except for wire color: LH harnesses have white wires; RH harnesses have gray wires. SPLITTER HARNESSES WIRE PART DESCRIPTION PIN QTY/ CONNECTS TO COLOR GENDER Connector, Amplifier 2 male Door Panel Speaker Amplifier Kit PN 2882122 (and bundle kits 2882246, 2882208) or equivalent;...
-
Page 4: Installation Instructions
INSTALLATION INSTRUCTIONS 1. Shift vehicle transmission into “PARK”. Turn key to f. Remove center floor console. “OFF” position and remove from vehicle. i. Remove five push pin rivets and four screws from front floor console. Remove 2. Remove left rear passenger seat and disconnect console, pushing boots for gear shift and black negative (-) cable from battery. -
Page 5: Left Side
4. Install speaker assemblies. c. Repeat Steps a. and b. for RH speaker assembly NOTE 5. Install splitter harnesses. LH side shown; RH side opposite. NOTE a. Remove five screws from inner side of door See previous section, HARNESS DETAIL, for frame. -
Page 6: Right Side
RIGHT SIDE 6. Install speaker harnesses. a. Disconnect existing RIGHT front speaker NOTE harness (GRAY wires) from corresponding See previous section, HARNESS DETAIL, for amplifier connector connector identification. NOTE RH side shown; LH side opposite. a. Route wires from RIGHT REAR speaker assembly to vehicle interior, then downward into wheel well between vehicle frame and... - Page 7 d. Continue routing GRAY wire speaker harness f. Route both white and gray speaker harnesses inboard along existing vehicle routing, then forward through center console, following forward into center console. Secure harness to battery cables, then up into upper dash existing vehicle routing clamp using one cable compartment to amplifier.
-
Page 8: Feedback Form
g. Connect speaker harnesses to splitter h. Coil and secure excess harness length in harnesses: upper dash compartment using cable ties prevent contact with hot components, sharp i. Connector 10A on WHITE wire speaker edges, or moving parts. harness to connector 9C on WHITE wire splitter harness 7.
