OS120L/OS132/OS144 INSTRUCTIONS
OS120LC
Frame Assembly –

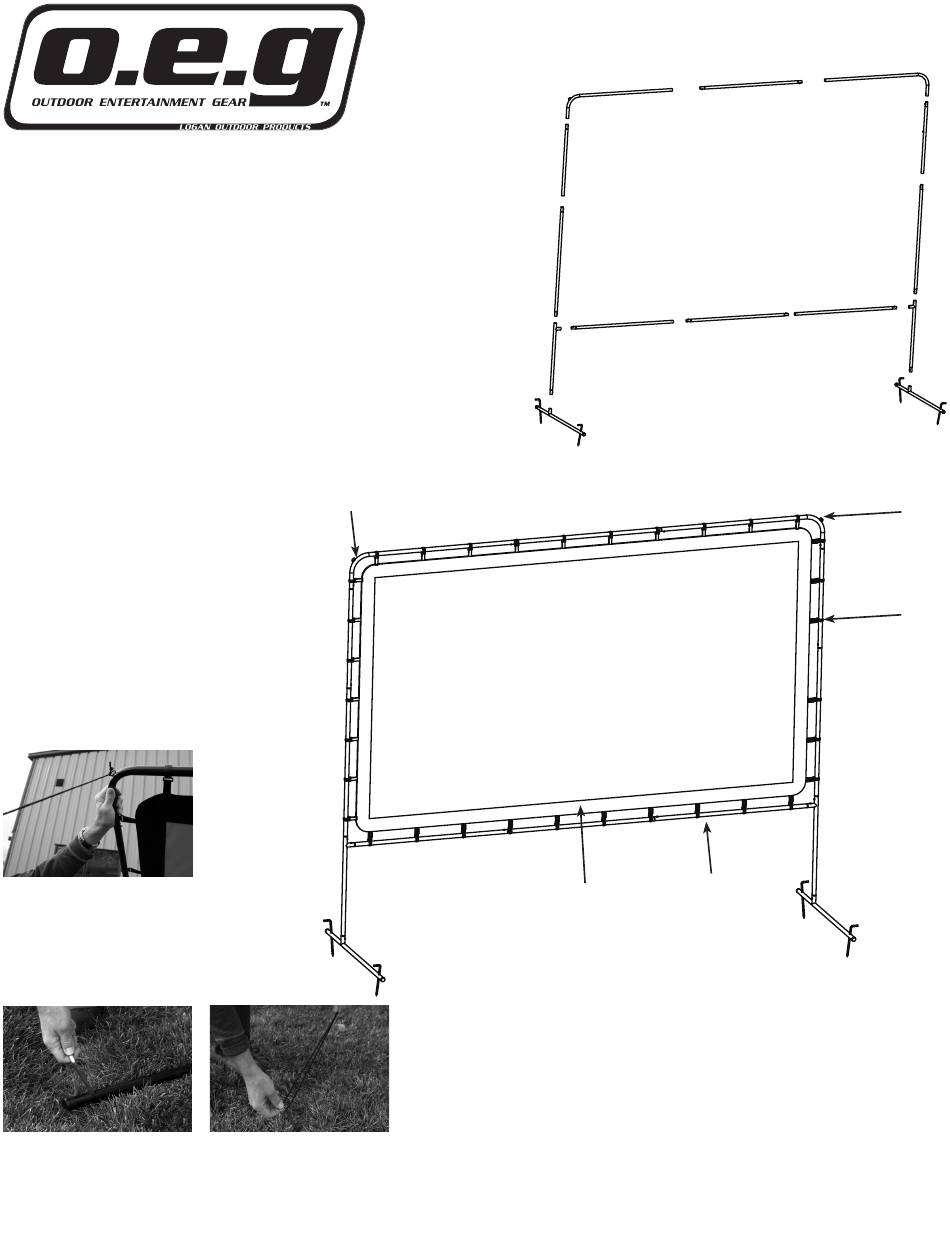

Assemble frame laying down as shown
in Picture 1.
Align the letters on the tubes with there
corresponding tube to ensure proper
assembly. (A to A, B to B etc.)
Screen Assembly –
Note – Care should be taken to prevent
the screen from getting dirty during
assembly. This is easier with two people.
The screen assembly should be done
with the frame laying down.
First locate one of the upper corners of
the screen. The adjustable straps should
be on the right side of the frame. The
logo should be on the bottom center
facing forward.
Starting at the top, attach the clips over
the tubes. It is easiest to start at a corner
and work around. See Picture 2.
Attach 2 guy ropes to each of the rings
on the top of the frame.
With 2 people stand the assembled
screen upright.
Stake the screen frame to the ground
using the 4 stakes provided.
Using the supplied guy wires and stakes secure the frame to prevent it from moving around in windy conditions or
tipping over.
Once the frame is staked down, the adjustable straps on the right and bottom edges can be adjusted to minimize
the wrinkles in the screen.
Attach 2
Guy Ropes
Picture 2
