Summary of Contents for Pittway NOTIFIER CBC-CLASS 1

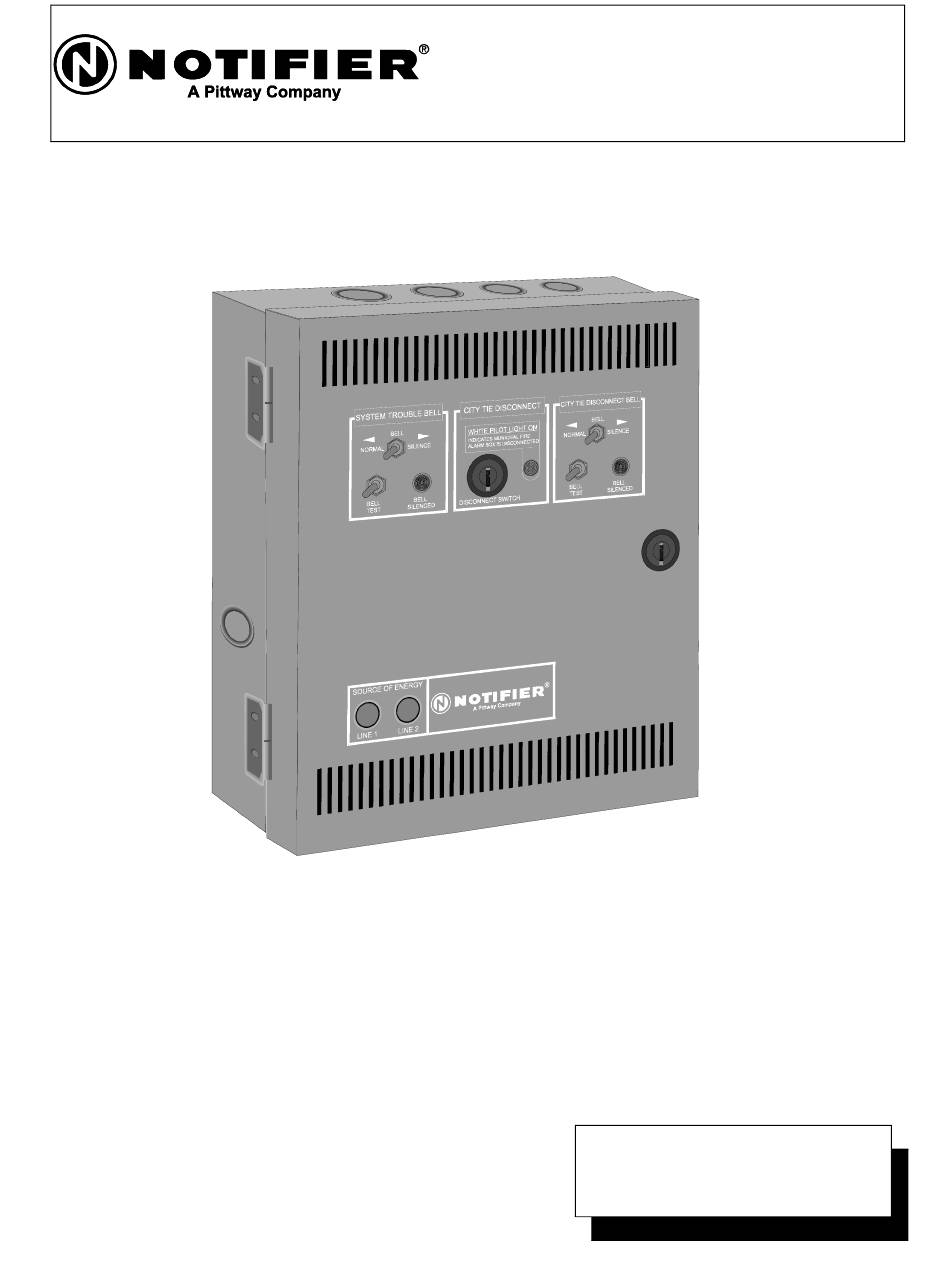

- Page 1 12 Clintonville Road Northford, CT 06472 (203) 484-7161 (203) 484-7118 (Fax) CBC-CLASS 1/2 Chicago Building Code Class I/Class II Master Control Manual Document 50685 7/09/98 Revision: PN 50685:C ECN 98-303...
- Page 2 Installation Precautions – Adherence to the following will aid in problem-free installation with long-term reliability: WARNING - Several different sources of power can be connected to Like all solid state electronic devices, this system may operate the fire alarm control panel. Disconnect all sources of power before erratically or can be damaged when subjected to lightning induced servicing.
-
Page 3: Table Of Contents
Table of Contents General Description ........1 Figure 1 CBC-CLASS 1/2 Master Control . -
Page 4: General Description
1 General Description The Chicago Building Code Class I / Class II Master Control (CBC-CLASS 1/2) was designed to comply with non high-rise Class I and Class II type building requirements of the city of Chicago, Illinois. It supplies the fire alarm control panel with two AC sources, ensuring backup if one source fails. -
Page 5: Compatibility
General Description Compatibility The CBC-Master Control modules are: • Chicago Building Code / Source-of-Energy Module. • Chicago Building Code / Bell Supervision Modules (CBC-BSM). One supervises the remote system trouble bell. The other supervises the City Tie Disconnect Bell. Both can be mounted remotely. •... -
Page 6: Module Descriptions
General Description Module Descriptions Module Descriptions Chicago Building Code / Source-of-Energy Module The Chicago Building Code / Source-of-Energy Module connects the fire alarm control panel to two separate AC sources. AC Source One provides the power to the fire alarm control panel. -
Page 7: Figure 5 City Tie Disconnect Module
General Description Module Descriptions Chicago Building Code / City Tie Disconnect Module The Chicago Building Code / City Tie Disconnect Module provides the ability to disconnect the City Tie Box from a location other than the fire alarm control panel. It consists of a disconnect switch operated by a two-pole caption key-operated switch, and a white incandescent lamp that indicates when the city tie has been disconnected. -
Page 8: Kit Inventory
General Description Kit Inventory Kit Inventory The CBC Master Control Kit consists of a metal cabinet with modules ready mounted (Figure 6), a CBC-KIT (Figure 6), two keys, and an Installation Manual. The CBC-KIT includes the following 12 items (shown at left) and an Installation Guide: - Two AFP-200 switch covers - Two AFP-200 labels - Two AFP-400 switch covers... -
Page 9: Operation
Operation The System Trouble Bell Supervision Module (CBC-BSM) 2 Operation The System Trouble Bell Supervision Module (CBC-BSM) Press the “BELL TEST” switch to test the System Trouble bell. The “BELL NORMAL, SILENCE” switch should remain in the “NORMAL” position until the Trouble bell sounds. -
Page 10: Mounting The Cbc-Master Control
Mounting the CBC-Master Control Supplies 3 Mounting the CBC-Master Control Carefully unpack the system and check for shipping damage. Mount in a clean, dry, easily accessible area. Locate the top of the cabinet approximately five feet above the floor. Supplies Mounting the CBC Master Control cabinet will require four mounting fasteners. -
Page 11: Connecting The Master Control
Connecting the Master Control Primary Source Connections 4 Connecting the Master Control Primary Source Connections To connect the Source-of-Energy Module to the primary power source, perform the following steps: CAUTION: Turn off the breaker at the main power distribution panel. All sources of power must be disconnected before servicing. - Page 12 Connecting the Master Control Master Control to NOTIFIER® FACP Connections Note: FACP Secondary Power must be installed. Figure 11 Connecting the CBC Master Control, System 5000, MPS-24A, Annunciator, and FCPS-24 CBC-CLASS 1/2 Master Control PN 50685:C 7/09/98...
-
Page 13: And Fcps-24
Connecting the Master Control Master Control to NOTIFIER® FACP Connections Note: FACP Secondary Power must be installed. Figure 12 Connecting the CBC Master Control to the System 5000, MPS-24B, Annunciator, and FCPS-24 CBC-CLASS 1/2 Master Control PN 50685:C 7/09/98... -
Page 14: Aps-6R
Connecting the Master Control Master Control to NOTIFIER® FACP Connections Note: FACP Secondary Power must be installed. Figure 13 Connecting the CBC Master Control, AFP-200 (with RTM-8), Annunciator, and APS-6R CBC-CLASS 1/2 Master Control PN 50685:C 7/09/98... -
Page 15: Aps-6R
Connecting the Master Control Master Control to NOTIFIER® FACP Connections Note: FACP Secondary Power must be installed. Figure 14 Connecting the CBC Master Control, AFP-200 (with 4XTM), Annunciator, and APS-6R CBC-CLASS 1/2 Master Control PN 50685:C 7/09/98... -
Page 16: Figure 15 Connecting The Cbc Master Control, Afp-400, Annunciator, And Aps-6R
Connecting the Master Control Master Control to NOTIFIER® FACP Connections Note: FACP Secondary Power must be installed. Figure 15 Connecting the CBC Master Control, AFP-400, Annunciator, and APS-6R CBC-CLASS 1/2 Master Control PN 50685:C 7/09/98... -
Page 17: And Aps-6R
Connecting the Master Control Master Control to NOTIFIER® FACP Connections Note: FACP Secondary Power must be installed. Figure 16 Connecting the CBC Master Control to the AM2020/AFP1010, MPS-24A, Annunciator, and APS-6R CBC-CLASS 1/2 Master Control PN 50685:C 7/09/98... - Page 18 Connecting the Master Control Master Control to NOTIFIER® FACP Connections NOTES CBC-CLASS 1/2 Master Control PN 50685:C 7/09/98...
- Page 19 Connecting the Master Control Master Control to NOTIFIER® FACP Connections NOTES CBC-CLASS 1/2 Master Control PN 50685:C 7/09/98...
- Page 20 Limited Warranty ® NOTIFIER warrants its products to be free from defects in materials and workmanship for eighteen (18) months from the date of manufacture, under normal use and service. Products are date stamped at time of manufacture. The sole and exclusive obligation ®...
