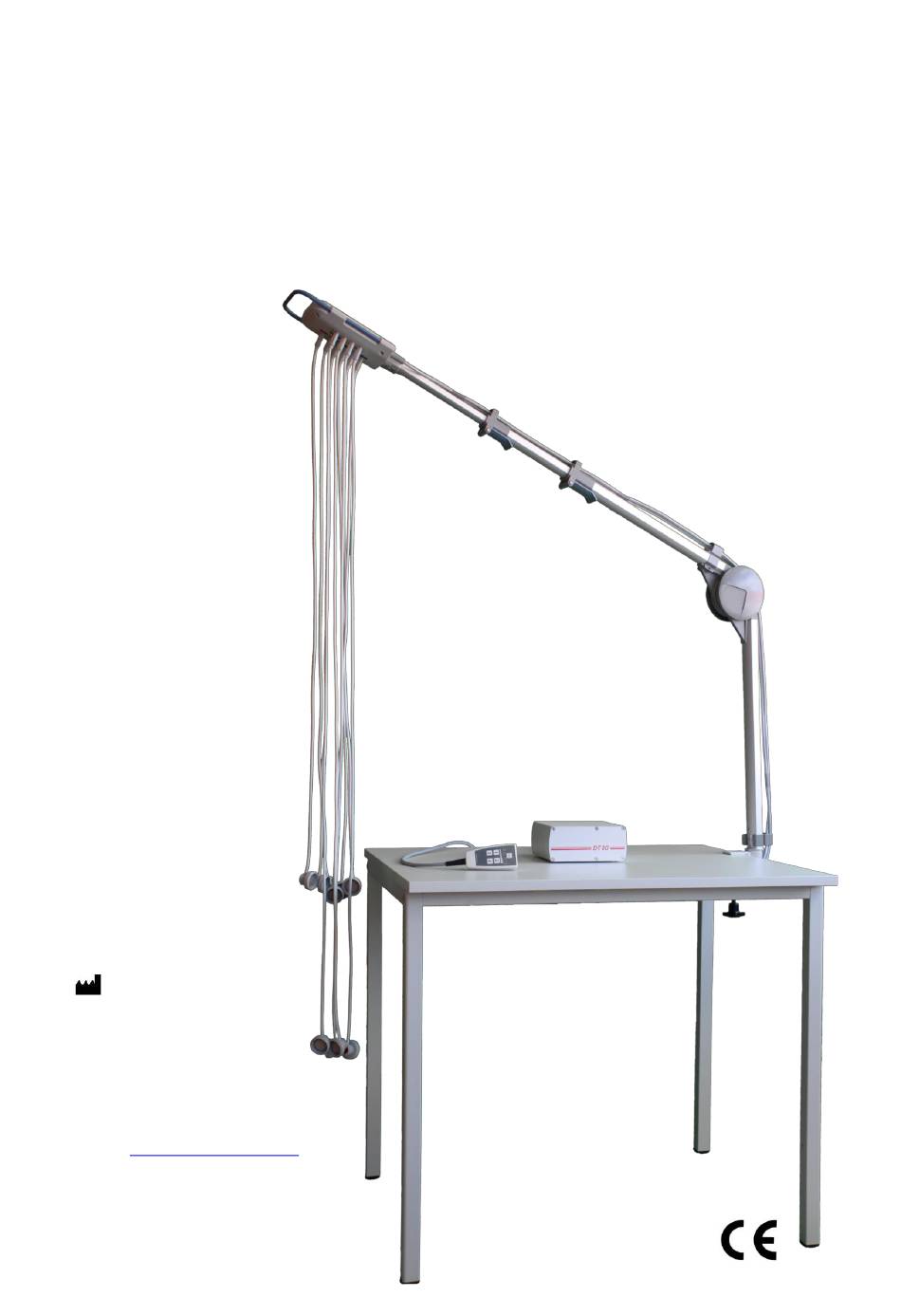

Operating and safety instructions
vacuum system DT80 T
Strässle & Co.
Medizintechnik GmbH
Primelweg 5
D-72461 Albstadt
Tel.: +49 (0)7432 - 220186
Fax: +49 (0)7432 - 220189
Email:
info@straessle-co.de
www.straessle-co.de
Item # 1000.507
issue V8.3E from
01.07.2019
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DT80 T and is the answer not in the manual?

Questions and answers

Summary of Contents for Strässle & Co DT80 T

  • Page 1 Operating and safety instructions vacuum system DT80 T Strässle & Co. Medizintechnik GmbH Primelweg 5 D-72461 Albstadt Tel.: +49 (0)7432 - 220186 Fax: +49 (0)7432 - 220189 Email: info@straessle-co.de www.straessle-co.de Item # 1000.507 issue V8.3E from 01.07.2019...
  • Page 2 Device symbols Follow instructions for use This part falls under classification BF This part falls under classification CF with defibrillation protection This part falls under classification BF with defibrillation protection ON Power switch: Power on Remote control: Switch vacuum system to stand-by mode and release vacuum Freigabe des Unterdruckes OFF Power switch:...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS DT80 General description Components Construction and function of the vacuum electrodes Construction and function of the distributor Construction and function of the support arm Construction and function of the vacuum system Construction and function of the control unit Installation Installation of the support arm clamping device Connecting the vacuum system...
  • Page 4 1. DT80 vacuum system The DT80 vacuum system is a medical product according to guideline 93/42/EWG. It is designed for operation with common ECG devices and offers improved safe ECG diagnostics combined with increased economical efficiency. The DT80 vacuum system suits for ECGs in rest as well as under physical exercise. Owing to the secure fixing of the electrodes it is especially advantageous in ergometry.
  • Page 5: Components

    2. Components distributor Item # 3000-177 support arm Item # 3000-178 2.1 electrode cables (application part) Item # 4000-002 electrode 1m Item # 4000-004 electrode 1,3m Item # 2000-159 code plate set 2.4 vacuum unit Item # 3000-205 2.5 control unit (integrated in vacuum unit) issue V8.3E from 01.07.2019...
  • Page 6: Installation

    Electrode cables (application part) Ten electrode cables, that are R, L, N, F and C1 to C6, constitute the adaptation unit. A specially designed combined electrode head, self-locking and equipped with a silver/silver-chloride electrode opens and adheres to the patient's body on slight finger pressure. Distributor The so-called distributor, the topmost part of the support arm, holds the electrodes in such a way that they cannot be connected improperly.
  • Page 7 The threaded hole at the foot of the support arm must match the lower threaded hole of the clamping device. Turn in the grub screw (M6x10) flush with the exterior of the clamping device. Do not tighten the screw! When correctly assembled, the support arm can be rotated easily cannot be pulled out.
  • Page 8: Connecting The Distributor And The Vacuum Lines

    3.3 Connecting the distributor and the vacuum lines support arm distributor attach the distributor at the arm Note: With excessive pulling of the distributor he becomes separated from When attaching the distributor a clicking the support arm, in order to protect must be heard.
  • Page 9: Operation

    3.4 Operation Press power switch to switch on the vacuum unit (green light will turn on) 3.4.1 Operation - Starting Push the ON/OFF button at the control unit to start operation. All LEDs of the control unit will be lit. Simultaneously, the blow-out mode will be triggered for approximately 5 seconds.
  • Page 10 3.4.3 Switch on the vacuum Pressure level 1 LED will turn on Press the I/O button to release vacuum Select vacuum level. Press the appropriate key to select a vacuum level. The selected vacuum level will be displayed by light emitting diodes. Pressure allocation (standard programming) Level 1 for smooth skin...
  • Page 11: Technical Appendix

    3.4.6 Stand-by operation restored (status 3.4.3) Stand-by operation is maintained for 30 minutes. If the system isn't restarted within this period, the sleep mode will be activated (status 3.4.1.). After interruption of the supply network, the system also falls into sleep mode. 3.4.7 particularities The system is very quiet and can easily be "overheard".
  • Page 12: Cleaning And Disinfection Of The Vacuum Electrodes

    Cleaning and disinfection of vacuum electrodes The surface of the vacuum electrodes must not be scratched or damaged. The surface cleaning is done by spraying the alcohol disinfectant after each use (and maybe cleaned with a cleaning cloth) For safe disinfectant to the manufacturer's instructions, especially the required exposure times, are observed. The number of cleaning cycles under operating conditions has no negative impact on durability.
  • Page 13: Ecg Plug-In Cable

    4.4.1 Chemical-thermal disinfection In the case of suspected contamination, the used vacuum lines should immediately be submitted to chemical- thermal disinfection. With it, the vacuum lines will be submitted to a validated process of exterior and interior cleaning/disinfection (for informations please ask the manufacturer). ECG plug-in cable The plug-in connector of the ECG plug-in cable at the support arm is connected to the ECG standard connector.
  • Page 14: Safety Instructions

    5. Safety instructions  The device should be operated only with a functioning mains supply according to VDE 0100-710, or applicable regulations, respectively. The device is assigned to group 1 (medical equipment-ECG) according to VDE 0100-710.  In order to avoid electrical shock hazard, the device should be connected only to a mains supply with a protective conductor. It should not be used with a mains supply with protective disconnector.
