Summary of Contents for Neopost TA-12/HT12

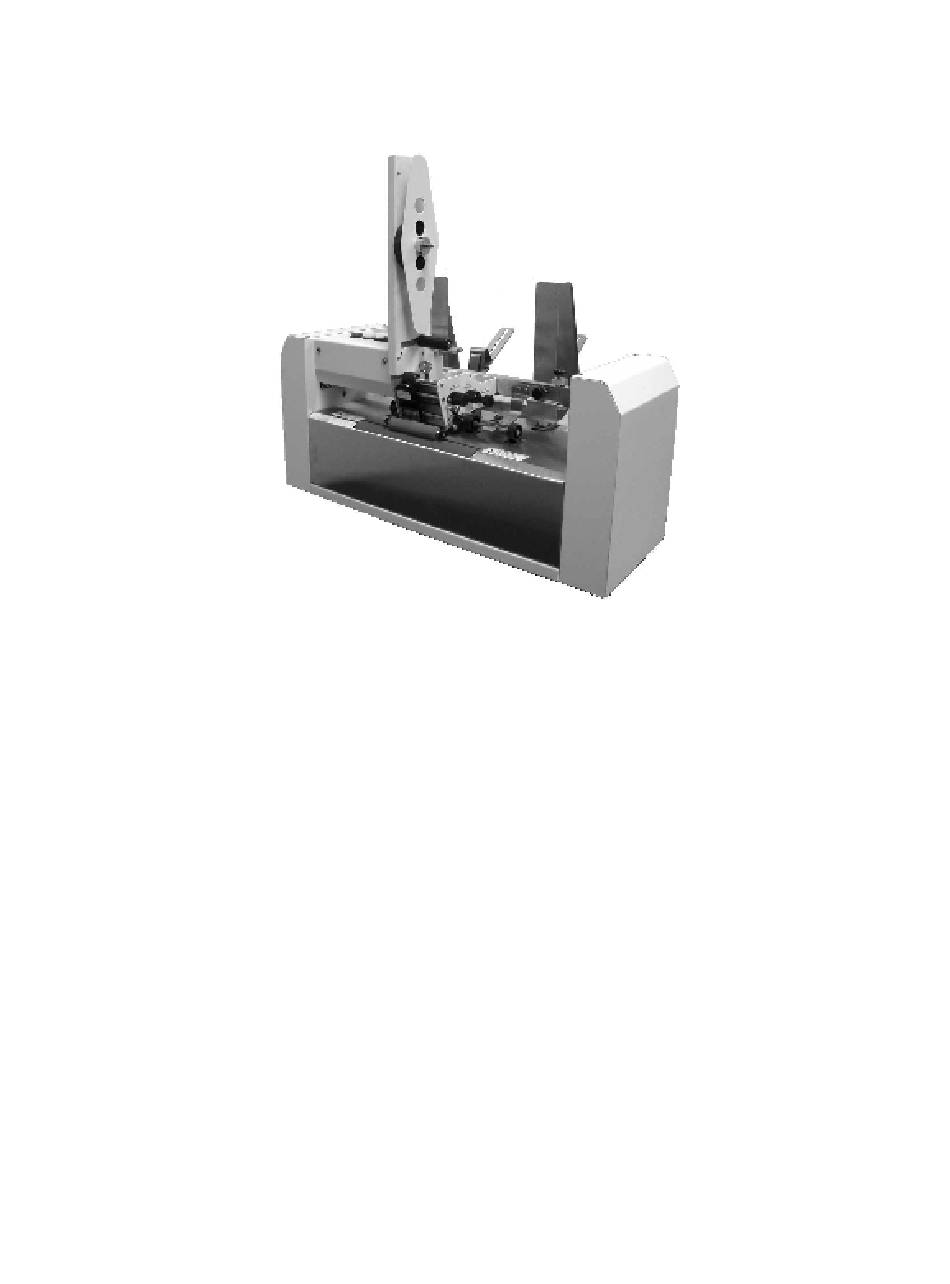

  • Page 1 TA-12/HT12 Tabber OPERATING GUIDE Revised: 2-27-13...
  • Page 2 Purchased From: Dealer Name: Contact Name: Address: Address: Phone Number: © 2013 Neopost USA Inc. All rights reserved. This document and all information contained herein are confidential and may only be disclosed as necessary to support customer use of the equipment.

  • Page 3: Table Of Contents

    APPENDIX C – TANDEM KIT ________________________________________________________ 26 INDEX ____________________________________________________________________________ 29 © 2013 Neopost USA Inc. All rights reserved. This document and all information contained herein are confidential and may only be disclosed as necessary to support customer use of the equipment.
  • Page 4 _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ © 2013 Neopost USA Inc. All rights reserved. This document and all information contained herein are confidential and may only be disclosed as necessary to support customer use of the equipment.

  • Page 5: Section 1 - Getting Acquainted

    Neopost USA. © 2013 Neopost USA Inc. All rights reserved. This document and all information contained herein are confidential and may only be disclosed as necessary to support customer use of the equipment.

  • Page 6: Packaging/Shipping

    Note: Tabs can be purchased through your local Neopost dealer. © 2013 Neopost USA Inc. All rights reserved. This document and all information contained herein are confidential and may only be disclosed as necessary to support customer use of the equipment.

  • Page 7: Front View

    Exit Roller – Applies pressure to the tab to help it stick to the media. © 2013 Neopost USA Inc. All rights reserved. This document and all information contained herein are confidential and may only be disclosed as necessary to support customer use of the equipment.

  • Page 8: Rear View

    At the same time, the tab feed stops until © 2013 Neopost USA Inc. All rights reserved. This document and all information contained herein are confidential and may only be disclosed as necessary to support customer use of the equipment.
  • Page 9 © 2013 Neopost USA Inc. All rights reserved. This document and all information contained herein are confidential and may only be disclosed as necessary to support customer use of the equipment.

  • Page 10: Section 2 - Assembly And Installation

    Tighten the thumbscrew. © 2013 Neopost USA Inc. All rights reserved. This document and all information contained herein are confidential and may only be disclosed as necessary to support customer use of the equipment.

  • Page 11: Installation

    DO NOT USE AN OUTLET THAT SHARES THE SAME CIRCUIT WITH LARGE ELECTRICAL MACHINES OR APPLIANCES. © 2013 Neopost USA Inc. All rights reserved. This document and all information contained herein are confidential and may only be disclosed as necessary to support customer use of the equipment.

  • Page 12: Section 3 - Operating The Tabber

    2” to 3” through the center of the Tab Take-up Reel pins. © 2013 Neopost USA Inc. All rights reserved. This document and all information contained herein are confidential and may only be disclosed as necessary to support customer use of the equipment.

  • Page 13: Tab Sensitivity Adjustment

    1. Remove the exit roller. © 2013 Neopost USA Inc. All rights reserved. This document and all information contained herein are confidential and may only be disclosed as necessary to support customer use of the equipment.

  • Page 14: Metering Bracket/Separator Adjustment

    4. Remove the media and make sure the bar is level and that the separator fingers are not rubbing against the feed rollers. © 2013 Neopost USA Inc. All rights reserved. This document and all information contained herein are confidential and may only be disclosed as necessary to support customer use of the equipment.

  • Page 15: Media Supports And Media Side Guide Adjustment

    4. Once the Media is feeding satisfactory, go to the next step. © 2013 Neopost USA Inc. All rights reserved. This document and all information contained herein are confidential and may only be disclosed as necessary to support customer use of the equipment.

  • Page 16: Horizontal Tab Positioning

    5. To Stop the Tabber press the Feed Switch again. © 2013 Neopost USA Inc. All rights reserved. This document and all information contained herein are confidential and may only be disclosed as necessary to support customer use of the equipment.
  • Page 17 _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ © 2013 Neopost USA Inc. All rights reserved. This document and all information contained herein are confidential and may only be disclosed as necessary to support customer use of the equipment.

  • Page 18: Section 4 - Troubleshooting

    Incompatible tabs being used. Tab sensor may be dirty or damaged. © 2013 Neopost USA Inc. All rights reserved. This document and all information contained herein are confidential and may only be disclosed as necessary to support customer use of the equipment.

  • Page 19: Media Feeding Problems

    Metering Bracket/Separators not set evenly. Separator Fingers or Feed Rollers worn. © 2013 Neopost USA Inc. All rights reserved. This document and all information contained herein are confidential and may only be disclosed as necessary to support customer use of the equipment.
  • Page 20 _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ © 2013 Neopost USA Inc. All rights reserved. This document and all information contained herein are confidential and may only be disclosed as necessary to support customer use of the equipment.

  • Page 21: Section 5 - Maintenance

    Neopost dealer to obtain service and support for your tabber. Service should only be performed by a qualified Neopost service person. To locate a Neopost dealer in your area, please click on the following link. http://www.neopostinc.com/Support/Office-Locator.aspx Cleaning...

  • Page 22: Cleaning The Sensors

    Knob. Use a vacuum with a soft brush attachment or dry compressed air to remove the dust © 2013 Neopost USA Inc. All rights reserved. This document and all information contained herein are confidential and may only be disclosed as necessary to support customer use of the equipment.
  • Page 23 _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ © 2013 Neopost USA Inc. All rights reserved. This document and all information contained herein are confidential and may only be disclosed as necessary to support customer use of the equipment.

  • Page 24: Appendix - Specifications

    Conveyor, Tandem Kit Options: Specifications subject to change without notice. © 2013 Neopost USA Inc. All rights reserved. This document and all information contained herein are confidential and may only be disclosed as necessary to support customer use of the equipment.

  • Page 25: Appendix B - Obtaining Supplies, Service And Support

    All the tab rolls, shown above, are on a 3” core. © 2013 Neopost USA Inc. All rights reserved. This document and all information contained herein are confidential and may only be disclosed as necessary to support customer use of the equipment.

  • Page 26: Appendix C - Tandem Kit

    The spring supports can be formed to accomplish this if required. © 2013 Neopost USA Inc. All rights reserved. This document and all information contained herein are confidential and may only be disclosed as necessary to support customer use of the equipment.
  • Page 27 Tandem Kit For TA-12: TA12TK Tandem Kit For HT12: HT12TK © 2013 Neopost USA Inc. All rights reserved. This document and all information contained herein are confidential and may only be disclosed as necessary to support customer use of the equipment.
  • Page 28 APPENDIX NOTES _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ TA-12/HT12 Operations Rev. 3/4/2013...

  • Page 29: Index

    Media Side Guides, 6, 8 Tab Sensor and Tab Guide Assembly, 7 Media Support, 8 Tab Take-up Rell, 7 Media Support Adjustment, 14 Tandem Kit, 25 Media Support Guides, 6 Troubleshooting, 17 Media Transport Test, 14 Metering Bracket Assembly, 7 TA-12/HT12 Operations Rev. 3/4/2013...
  • Page 31 Copyright © 2013 All rights reserved...
