202 Anderson Ave., Belvue, KS 66407
Phone: 800-669-9867 Fax: 800-393-6699
www.onyxcollection.com
351D-1018
800-643-1514
www.alumaxshowerdoor.com

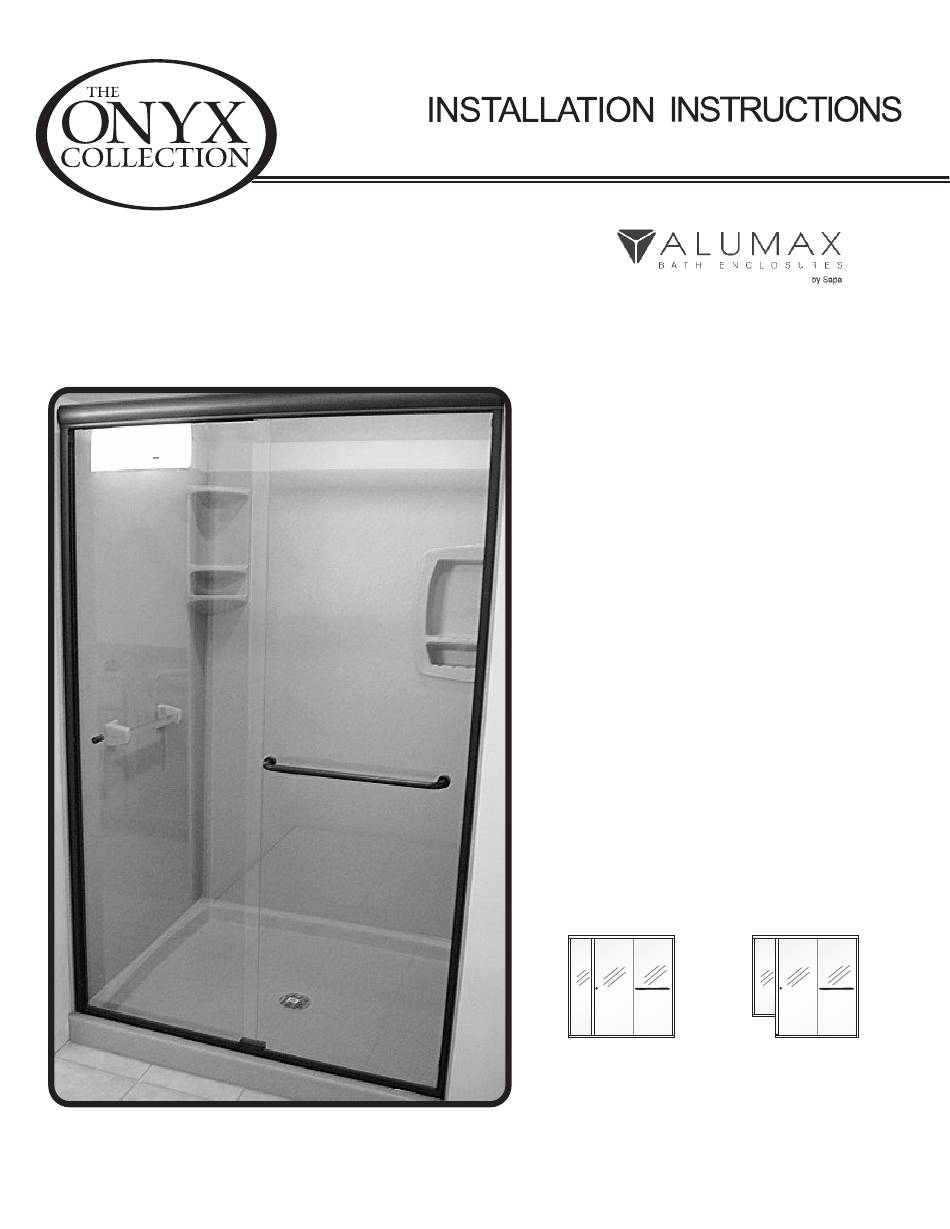

340 & 350
Series
Deluxe Frameless
ByPass Bath
Enclosures
With Extended
Panel
Full Showers
with Extended Panel
Full Showers
with Extended Panel
Advertisement
Related Manuals for Sapa Alumax 340 Series
Summary of Contents for Sapa Alumax 340 Series
- Page 1 202 Anderson Ave., Belvue, KS 66407 Phone: 800-669-9867 Fax: 800-393-6699 800-643-1514 www.onyxcollection.com www.alumaxshowerdoor.com 340 & 350 Series Deluxe Frameless ByPass Bath Enclosures With Extended Panel Full Showers Full Showers with Extended Panel with Extended Panel 351D-1018...
- Page 2 !WARNINGS! INSTALLATION WARNINGS a) Alumax Bath Enclosures by Sapa are intended to be installed by an experienced installer. If you need assistance withlocating an experienced installer, contact us at 1.800.643.1514 or go to our website www.alumaxshowerdoor.com to accessour "dealer locator". If a dealer is not listed in your area, call or send us an e-mail and we will find one for you.
- Page 5 MEASURING CURB TRACK Measure the wall-to-wall opening along the center of the threshold. Cut the curb track [A] 1/16” short of this dimension. An inexpensive miter box available at your hardware store will help you get clean square cuts. If the vinyl silencer [W] is separate from the curb track [A], slide the silencer into the slot in the curb track.
- Page 6 EXTENDED PANEL SHOWERS Installing the Wall Jamb First dry-fit the wall jamb (B) over the curb track, then remove the tape backing from the F-Channel and insert into the jamb and press so it is stuck to the wall jamb. Then remove both and drill the F-Channel from the pre-drilled holes in the wall jam.
- Page 7 INSTALLING VERTICAL CHANNELS Replace the wall jambs [B] and attach to the wall with a #8 x 2 truss head screw [D] inserted through the center hole. Slip a nylon spacer [E] over #8 x 2 truss head screw and install in the top hole of the wall jamb.
-
Page 8: Mounting Handles
MOUNTING HANDLES Make sure your towel bars and/or knobs are on the opposite side of the glass. If you have a towel bar please see (A) below. If you have a knob, please see (B) below. Place space saver [P] over a towel bar cap screw [O]. - Page 9 INSTALLING DOOR PANELS While standing inside the shower, lift the exterior glass panel into position with the rollers pointed to the outside of the shower. Gently lift the glass panel into the inside of the header track and set the rollers onto the roller track groove.
