Summary of Contents for Sovereign SBV 3200
- Page 1 Artikel-Nr.: Petrol Leaf Vacuum Ident-Nr.: 01014...

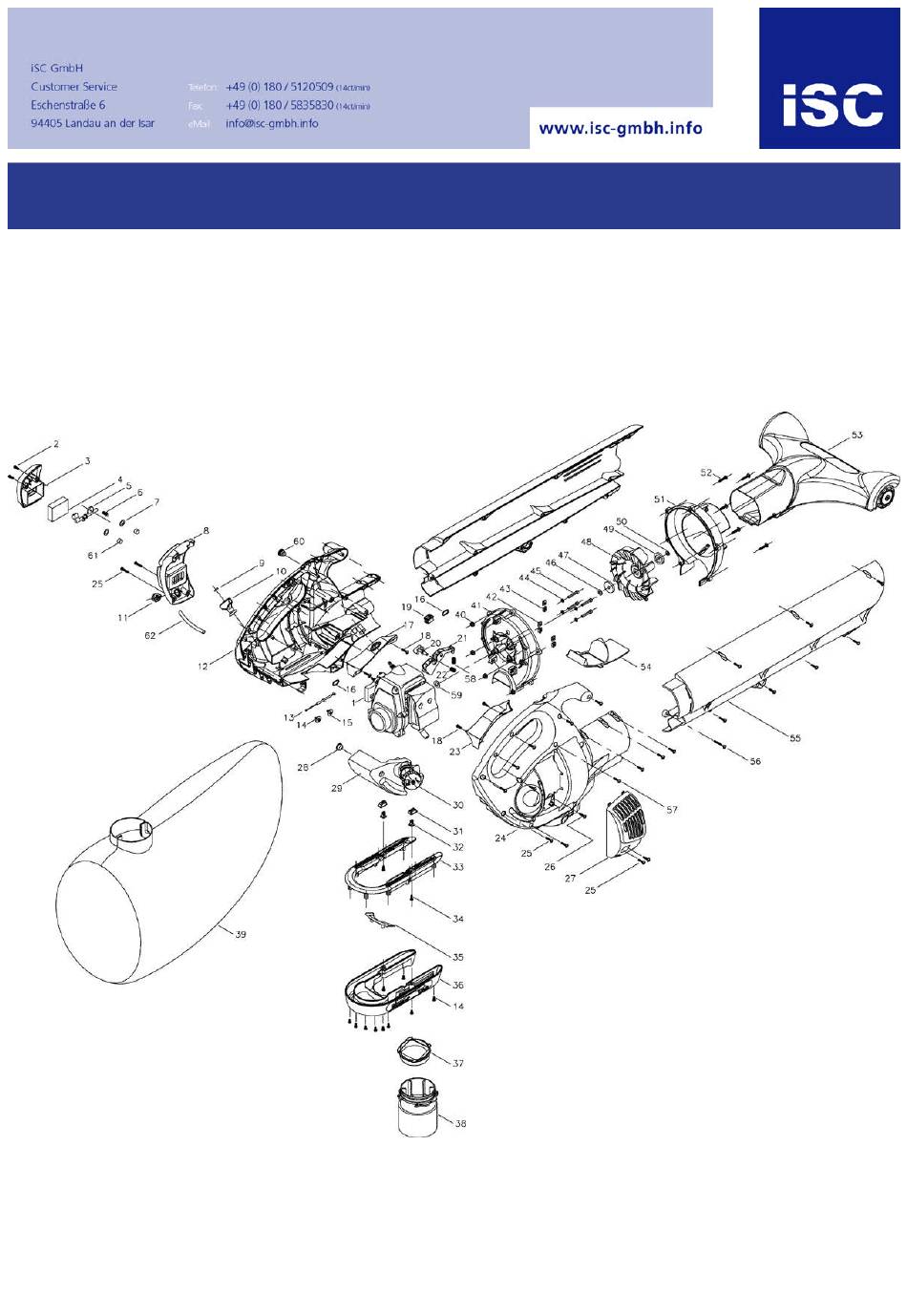

- Page 2 Komponenten / Ersatzteile Position Artikel-Nr. Beschreibung 343600001001 carburettor 343600001003 air filter cover 343600001004 air filter 343600001010 pump 343600001012 throttle cable 343600001060 switch 343600001026 ISOLATOR 343600001028 tank lid 343600001036 nozzle 343600001061 blower bag 343600001045 fan wheel 343600001050 spray valve 343600001051 louver 343600001052 suction tube 343600001053...
- Page 3 Anleitung SBV 3200 10.01.2005 9:37 Uhr Seite 1 Operating Instructions Garden Blower Vac 34.360.01 3200 Art.-No.: 519920 I.-No.: 01014...
- Page 4 Anleitung SBV 3200 10.01.2005 9:37 Uhr Seite 2 Please pull out page 2 Meaning of symbols marked on the product Read the user manual before using the machine Wear dust mask to protect against dust Wear safety goggles to protect your eyes...
- Page 5 Anleitung SBV 3200 10.01.2005 9:37 Uhr Seite 3...
- Page 6 Anleitung SBV 3200 10.01.2005 9:37 Uhr Seite 4 GENERAL SAFETY RULES 5. NEVER POINT BLOWER in the direction of people, animals, buildings, automobiles, or • WHAT NOT TO DO windows, etc. 6. DO NOT operate unit without inlet cover installed READ YOUR USER MANUAL AND ALL to prevent contact with impeller.
- Page 7 Anleitung SBV 3200 10.01.2005 9:37 Uhr Seite 5 2. Technical data To install vacuum bag: Pull the slide (A) forward and fit bag (B) into the vacuum housing. (See Fig. 3) Engine .......24 cm NOTICE: Vacuum bag installation Max.
- Page 8 Anleitung SBV 3200 10.01.2005 9:38 Uhr Seite 6 OPERATING INSTRUCTIONS • STARTING A WARM ENGINE (Engine has been stopped for no more than 15-20 minutes) 1. Pull starter rope again. Engine should start with • STARTING A COLD ENGINE ONE or TWO pulls. If engine fails to start after 6 Fill fuel tank with proper gas and oil mixture.
- Page 9 Anleitung SBV 3200 10.01.2005 9:38 Uhr Seite 7 Do not vacuum hot or burning materials (e.g. hot suction tube. ash, glowing cigarettes) from outdoor fireplaces or This reverse airflow is usually sufficient to dislodge barbecue pits. always wait for these materials to be most obstructions.
- Page 10 Anleitung SBV 3200 10.01.2005 9:38 Uhr Seite 8 4. Turn bag RIGHT SIDE OUT, close zipper and attach to unit. NOTE: If vacuum bag is unusually dirty, it should be washed by hand in warm water with a mild detergent.
- Page 11 деклаpиpа следното съответствие съгласно normama EU za artikl. диpективите и ноpмите на ЕС за пpодукта. declarå urmåtoarea conformitate cu linia direc- Garden Blower Vac SBV 3200 98/37/EG 87/404/EWG R&TTED 1999/5/EG 73/23/EWG_93/68/EEC L WM = xxx dB; L WA = 108 dB...
- Page 12 Sie Ihren Ansprechpartner des regional zuständigen Kun- stimmungsgemäße Benutzung unseres Gerätes. dendienstes oder die unten aufgeführte Serviceadresse. Sovereign Customer Helpline 0044 (0) 151 649 1500 ISC GmbH · International Service Center Eschenstraße 6 · D-94405 Landau/Isar (Germany) Info-Tel. 0180-5 120 509 • Telefax 0180-5 835 830 Contact for Warranty repairs: HSS plc Tel: 0845 728 2828 Service- und Infoserver: http://www.isc-gmbh.info...
