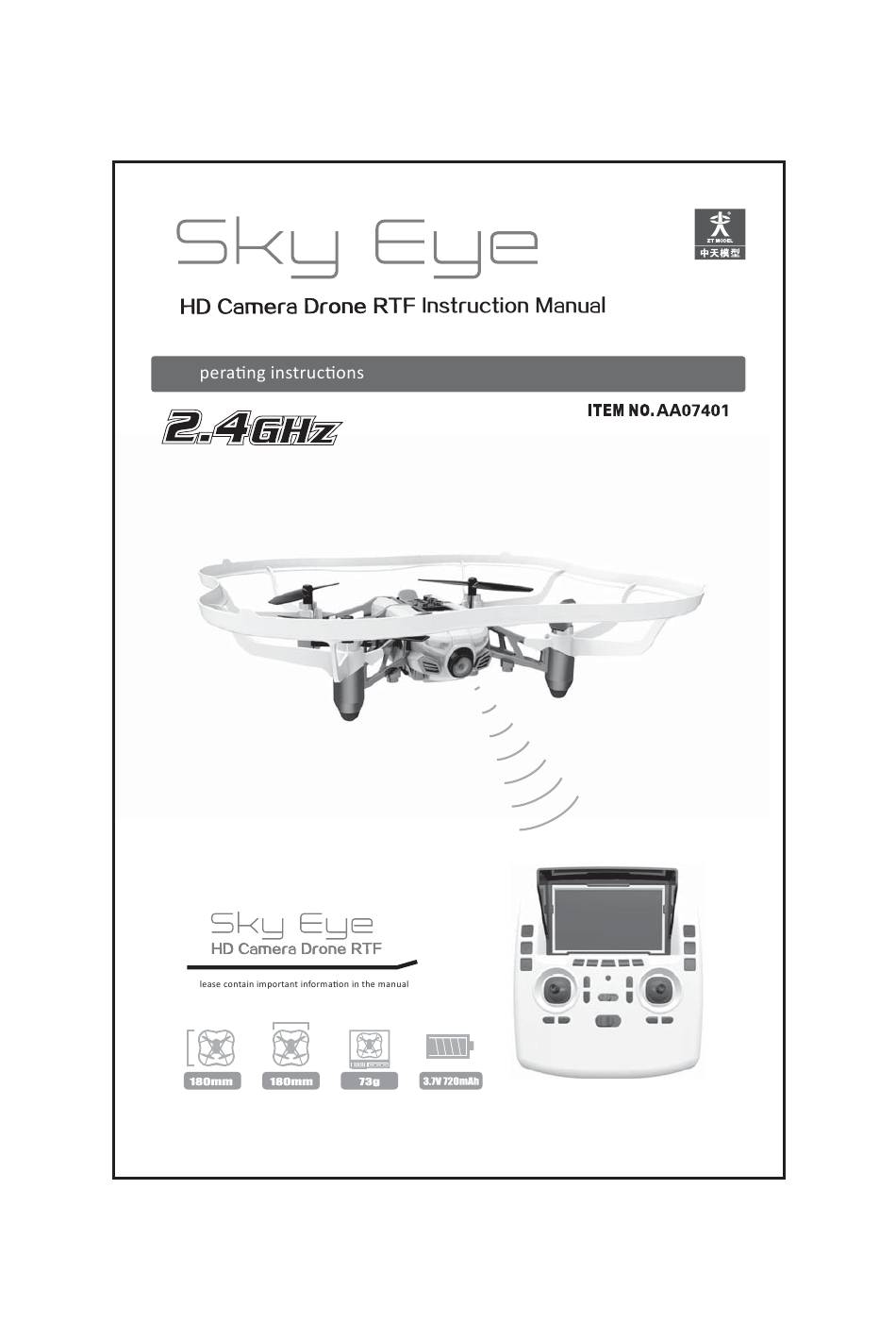

Summary of Contents for ZT Model Sky Eye
-
Page 2: Important Instruction
Important Instruction Cautions FCC Warning Statement & Z This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 3: Packing List
Packing list quadcopter transmitter hood Memory card AA battery quadcopter battery USB charger/cable spare blade specification Item Product measure Product weight about 73g Battery spec. 3.7V 720mAh lithium battery Control mode 2.4GHzan Charger USB charger or C-410 charger(option) Charger time about 60mins Flying time about 6mins... - Page 4 Quadcopter parts label location 1.Protect cover 2.Battery tabletting 3.Blade 4.Motor 5.Frame 6.Image transmitter antenna 7.indicator light 8.Camera 9.Channel light 10.ON/OFF Install blade clockwise anticlockwise Please pay attention the blade A type and B type, the install method as shown. clockwise anticlockwise...
-
Page 5: Transmitter Parts
Transmitter parts menu return Preview / play Previous next Remote control indicator Hood mounting holes mergency stop button (with caution) Aircraft head indi- cator light switch 360 degree flip button Headless mode switch Camera button Take a picture button Left and right Fine before and after hand mode keys Right joystick... -
Page 6: Install And Charge Battery
Install and charge battery 1.Install and tear down the battery. Insert the battery into the battery compartment, triangle-shaped label facing up. Unloaded the battery need pull the lock, and pull out the battery. charger/data port indicator red: charging greed: charger complete cell phone power bank computer etc. -
Page 7: Camera Adjustment
Important matters need attention Please read the manual very carefully, before operation the battery, its dangerous goods, Please turn off the power when charge battery. Please far away the fire and dangerous place. Please don’t be disassemble the quadcopter and battery. Please use the USB cable and C-410 to charge only. -
Page 8: Display Function
Display function working time Image transmission channel transmitter read the TF card. quadcopter battery transmitter battery Take video time manual function 1. Choose channel 6. set language 2. Display intensity control 7. format 3. set contrast 8. factory settings 4. set Saturation 5. -
Page 9: Ready To Fly
Flying operation guider Ready to fly Please read the manual very carefully before operate the quadcopter. Choose the good place and good weather, and check the product everything is well. Before fly. When Indicator light from green right change to red light, the mean is power will be empty. -
Page 10: Functions Introduction
Operate rise Turn Turn left right decline Left lever to the left The aircraft rotates to the left Left lever to the right The aircraft rotates to the right Left operating lever up The aircraft rises Left operating lever down Left operating lever down go ahead Left fly Fly right... - Page 11 360° flip Make sure the quadcopter at the safe place, press 360° button，and use direction joystick choose the flip direction, it will be closed this function when quadcopter power not enough primary mode / advanced mode quadcopter offer primary mode and advanced mode, use the button on the transmitter change two mode.
