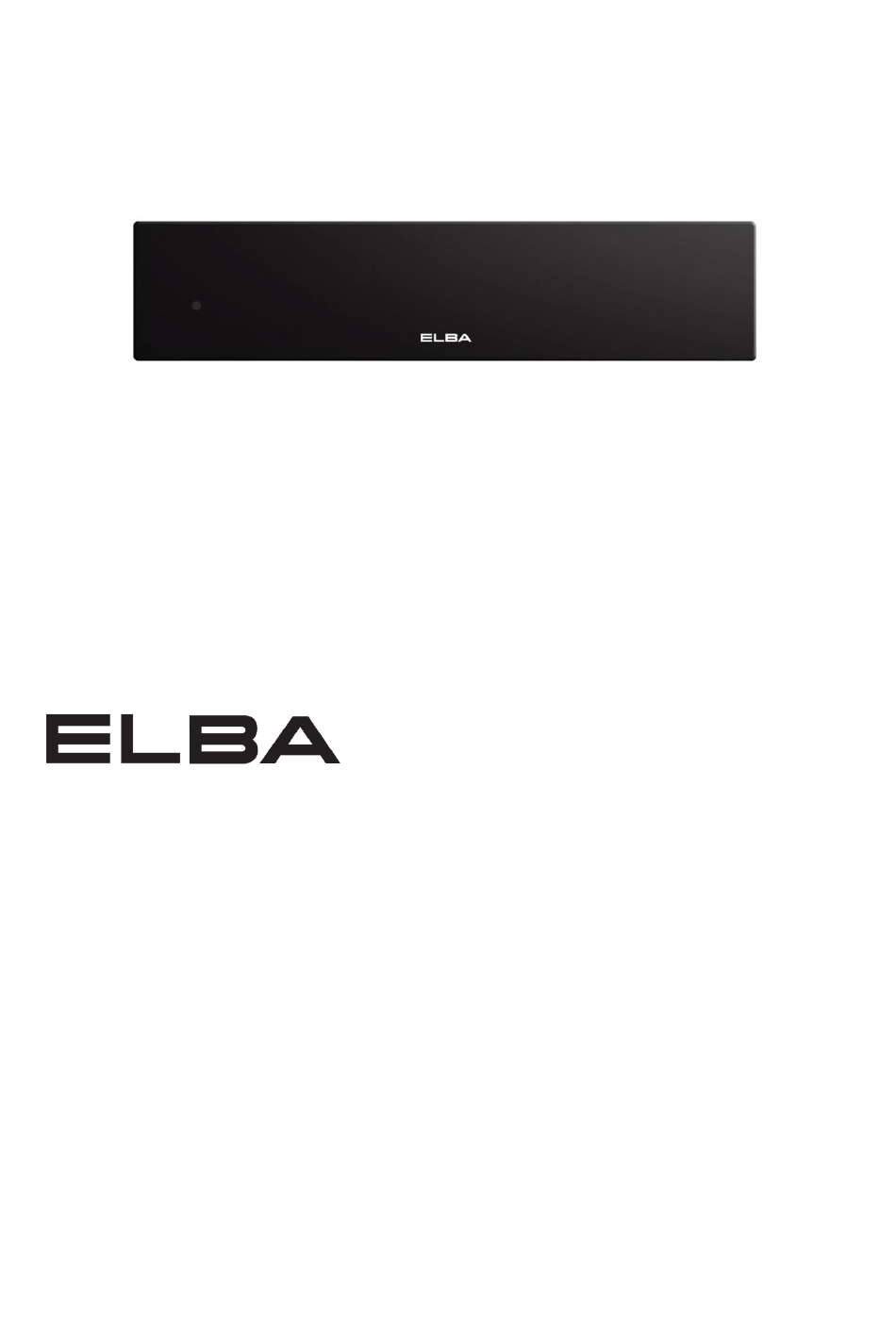

BUILT-IN WARMING DRAWER
MODEL: EWMD-H6060TS(BK)
Owner's Manual
Please read this manual carefully before
operating your set.
Retain it for future reference.
Record model number and serial number
of the set.
See the label attached on the set and
quote this information to your dealer when
you require service.
For The Warranty Terms & Conditions, Please Refer To Warranty Certificate

Advertisement

Table of Contents
loading

Summary of Contents for Elba EWMD-H6060TS(BK)

  • Page 1 BUILT-IN WARMING DRAWER MODEL: EWMD-H6060TS(BK) Owner’s Manual Please read this manual carefully before operating your set. Retain it for future reference. Record model number and serial number of the set. See the label attached on the set and quote this information to your dealer when you require service.

  • Page 2: Table Of Contents

    CONTENTS SAFETY PRECAUTIONS …………..…………………………………………………………………………………………….1 ATTENTIONS …………………………………………………………………………………………………………………………2 INSTALLATION …………………..…………………………………………………………………………………………….2-3 CONNECTION OF THE APPLIANCE …………………………………………………………………………………………4 FITTING ON A POWER SUPPLY CABLE……………………………………………………………………………………4 CONNECTING THE SUPPLY CABLE TO THE MAINS…………………………………………………………………4 FOR THE FIRST TIME USING …………………………………………………………………………………………………….5 PRODUCT DESCRIPTIONS ……………………………………………………………………………………………………….5 CONTROL PANEL……………………………………………………………………………………………………………………….6 PROGRAMS AND FUNCTIONS……… ……………………………………………………………………………….7 SELECTING THE WARMING DRAWER PROGRAMS……………………………………………………………………7 WARMING DRAWER FUNCTIONS…………………………….………………………………………………………7-8...

  • Page 3: Safety Precautions

    We recommend that you read the instructions in this owner’s manual carefully before using it for the best performance and to extend the lifespan of your appliance, as it will provide you with all the instructions you require to ensure its safe installation, use and maintenance. 1.

  • Page 4: Attentions

     In order to avoid electric shock, please make sure the warming drawer has been shut off before carrying out the maintenance.  Use only original accessories provided by ELBA or its authorized service center.  Do not use wet parts of body to touch the warming drawer.
  • Page 5 If the appliance is not intended to be installed in combined with any other appliance, please installation with the follow:  Open the drawer, and use the 2 screws supplied to secure the appliance to the side walls of the housing unit. ...

  • Page 6: Connection Of The Appliance

    4. CONNECTION OF THE APPLIANCE 4.1 Fitting on a Power Supply Cable The appliance has to be equipped with a three-core power supply cable which is designed to operate with an alternating current. The AC power supply should be supplied with 220-240V, 50/60Hz and a minimum 13A distribution circuit fuse or at least 13A distribution circuit breaker.

  • Page 7: For The First Time Using

    5. FOR THE FIRST TIME USING The first time you use your appliance, we recommend that set the thermostat to the highest setting and leave the warming drawer on for about half an hour with nothing in it, with the door shut completely.

  • Page 8: Control Panel

    6.1 Control Panel Icon Descriptions ON Button, Press button to turn appliance on. OFF Button, Press button to turn appliance off. Cups or glasses (approx. 40°C) Turn the knob to select the program. Serving dishes or plates (approx. 60°C) Turn the knob to select the program. Press button to turn on appliance.

  • Page 9: Programs And Functions

    7. PROGRAMS AND FUNCTIONS 7.1 Selecting the Warming Drawer Programs To select the warming drawer programs, turn the knob to desire program. The detail of the programs as below: Symbol Function Descriptions The temperature range can be set within the range of 40-50ºC. This program is used to warm the cups or glasses.
  • Page 10 DISHES OR PLATES Suggested temperature: 60 °C This program is used to warm the serving dishes or plates. Food stays warm for longer if served in pre-heated dishes. It will take around 30-35 minutes to heat evenly. Capacity: - 20 dinner plates (Φ28 cm) or 36 soup bowls (Φ22 cm) or 10 dinner plates (Φ28 cm) and 10 soup bowls (Φ22 cm) or 10 pizza plates (Φ36 cm)

  • Page 11: Cleaning And Maintenance

    8. CLEANING AND MAINTENANCE Before cleaning or performing maintenance on your warming drawer, disconnect the appliance from the power supply. To extend the lifespan of your warming drawer, it must be cleaned frequently.  All surfaces and controls should be cleaned using warm water with a little washing up liquid applied with a soft sponge or cloth.
