Armstrong CC-5 Installation And Maintenance Instructions

Condensate Cooler and Liquid Tempering Device
This bulletin should be used by experienced personnel as a guide to the installation of the Model CC-5, CC-12, CC-25
and CC-40 Condensate Cooler. Selection or installation of equipment should always be accompanied by competent
technical assistance. You are encouraged to contact Armstrong International, Inc. or its local representative for
additional information.
Option 'A'
Condensate
(Greater than 180°F)
Note: Cooler can also be used with heat exchangers or any application that requires the hot water or condensate
temperature to be tempered. When using this device to cool hot condensate, it is required to vent all flash steam prior
to piping into the body of the cooler. The body and vent of the cooler are not sized to be a flash tank.
Model CC-5, CC-12, CC-25 and CC-40
Installation and Maintenance Instructions

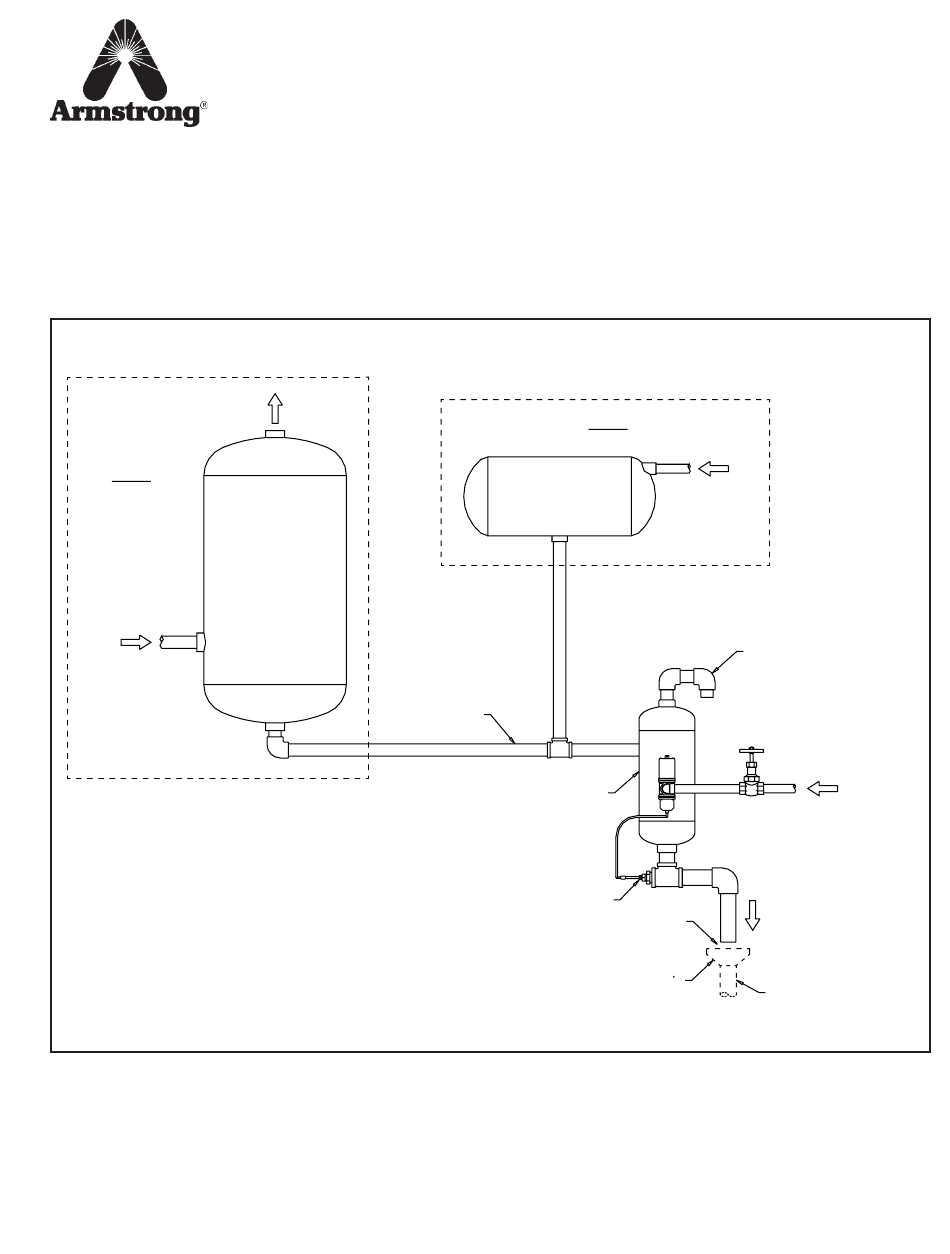

Typical Installation

Vent
Flash Tank
Hot Condensate
Option 'B'
Condensate or
(180°F or Less)
Condensate Cooler
Sensing Bulb
1" Minimum Air Gap Required
(to eliminate back siphonage)
Floor Drain
Bulletin No. AY-707
Hot Water
Vent to Atmosphere
(with gooseneck to prevent
dirt from getting into the
body of the cooler)
Cold Water
Tempered
Condensate
Sanitary
Sewer
