madebyzen GLO EW9630 Manual

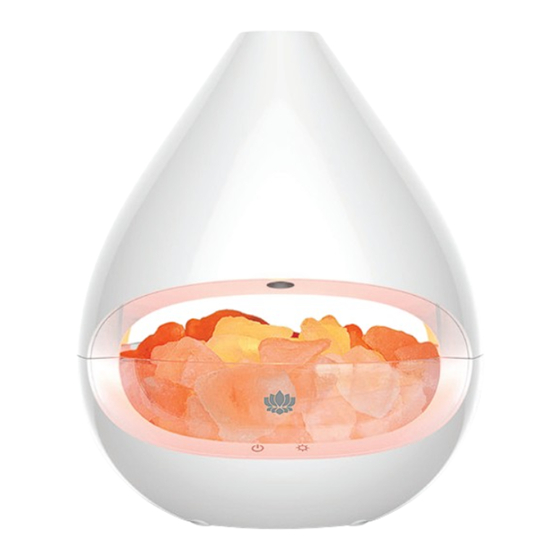

Aroma diffuser and himalayan salt lamp
Hide thumbs

Advertisement

Quick Links

G LO

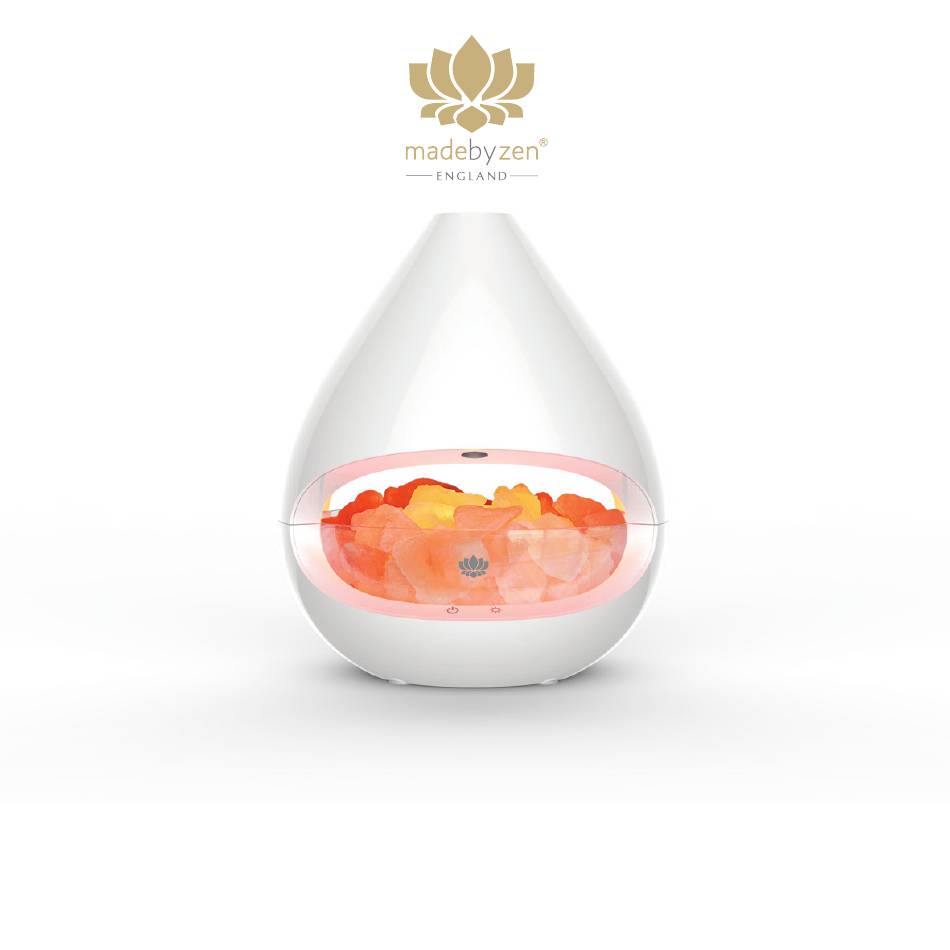

Aroma Diffuser and Himalayan Salt Lamp
Create a relaxing ambience with a warm
crystalline glow and cool scented mist.

Advertisement

loading
Need help?

Need help?

Do you have a question about the GLO EW9630 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for madebyzen GLO EW9630

Summary of Contents for madebyzen GLO EW9630

  • Page 1 G LO Aroma Diffuser and Himalayan Salt Lamp Create a relaxing ambience with a warm crystalline glow and cool scented mist.

  • Page 2: Table Of Contents

    C. OPERATING INSTRUCTIONS D. FEATURES E. MAINTENANCE F. TROUBLESHOOTING G. WARRANTY Congratulations on purchasing your madebyzen Glo Aroma Diffuser & ® Himalayan Salt Lamp. Please keep this manual to help you get the most out of your Glo and for maintenance.

  • Page 3: About The Glo

    ABOUT THE GLO Enjoy the benefits of aromatherapy, hydration and Himalayan pink salt therapy with the madebyzen Glo Aroma Diffuser. ® Achieving the perfect balance of aesthetics, simplicity and functionality, Glo combines aromatherapy with the calming effects of Himalayan pink salt.

  • Page 4: Technical Specification

    TECHNICAL SPECIFICATIONS Product name: Glo Aroma Diffuser and Himalayan Salt Lamp Model No.: EW9630 Input voltage: AC: 100-240V, 50/60Hz DC: 24V Water tank volume: 160ml Power Rating: 20W Dimensions: 187x175x219mm Weight (without salt crystals): 2.1KG Coverage Area: 15㎡ Bulb: G4 halogen lamp 24V,10W AC/DC adaptor: Input 100-240V, 50/60Hz.
  • Page 5 IMPORTANT NOTES BEFORE USE: 1. Keep the Aroma Diffuser in a clear space to allow the mist to freely spread and away from appliances especially those sensitive to water to avoid unnecessary accidents. 2. Place the Aroma Diffuser on a flat surface, at least 60 cm away from the floor and at least 10 cm away from the wall.
  • Page 6 10. Never attempt to disassemble or repair the product as this may void your warranty and create a shock hazard. Contact your retailer if your Aroma Diffuser develops a fault. 11. In case of any abnormal observations such as smoke, peculiar smells or noise, stop using the device immediately and contact your retailer from where you purchased the Aroma Diffuser.

  • Page 7: Operating Instructions

    OPERATING INSTRUCTIONS Setting Up Your Diffuser 2. Plug bulb pins into the small holes 1. Take off the Outer Cover, Inner on bulb base (ether way round). Then Cover, Water Tank & Salt replace the Salt Container. Container and install the bulb. “MAX”...
  • Page 8 4. Then add 3-5 drops of your 3. Using a suitable measuring cup, favourite fragrance or essential oil add water into the Water Tank. (madebyzen oils recommended). ® DO NOT fill the water beyond the MAX level mark. The diffuser will not work if filled beyond the MAX level mark.
  • Page 9 5. Replace the Inner Cover 6. Replace the Outer Cover 7. Connect the DC jack into the 8. Switch the unit on (see diffuser then plug the adaptor Settings on next page) to the mains power supply...
  • Page 10 SETTINGS Your Glo Diffuser comes with touch sensitive switches for ease of use: You will hear a soft beep each time the button is pressed. Aroma Diffuser: Power : Touch the button once to turn on the Aroma Diffuser. Touch the for the second time to switch off the Aroma Diffuser.

  • Page 11: Features

    FEATURES The Glo Aroma Diffuser provides a revolutionary way to fragrance your surroundings. It works by creating high frequency vibrations that breaks down the water and oil into minute particles, which are then effectively diffused into the immediate surroundings. The Himalayan Salt Lamp uses a low energy halogen bulb to create a warm glow to the salt crystals, creating a relaxing ambience to your living space.

  • Page 12: Maintenance

    MAINTENANCE 1. Switch off the Aroma Diffuser & Himalayan Salt Lamp. 2. Remove the inner and outer Covers and empty the water tank away from the air vent. 3. Wipe clean with a soft, damp cloth to remove any remaining oil film from the water tank.
  • Page 13 IMPORTANT INSTRUCTIONS RECOMMENDED AFTER EACH USE: 1. Turn the Aroma Diffuser off and unplug the unit from the electrical outlet. Then lift off the outer cover, inner cover and water tank. 2. Drain and rinse the water tank (away from the vent hole) and clean thoroughly to remove any sediment and dirt.

  • Page 14: Troubleshooting

    TROUBLESHOOTING Problem Possible Cause Solution Contact Points not making Align the water tank correctly to the Contact Point contact. and check there is no water on the contacts. Water is lower than the Refill the tank with ordinary tap water. Take care water level sensor.
  • Page 15 TROUBLESHOOTING The cover is not positioned Remove the cover and replace correctly to allow correctly. the mist to flow correctly. Water is Water moisture has built Remove the cover and dry off excess water from leaking up inside the cover. the inside of the cover.

  • Page 16: Warranty

    This type of damage is not covered under the warranty. This Aroma Diffuser must be cleaned after each use. IMPORTANT! madebyzen® Ultrasonic Aroma Diffusers comply with the WEEE Directive (Waste from Electrical and Electronic Equipment Directive) 2012/19/EU. When the Glo Aroma Diffuser reaches the end of its working life, it should not be disposed of in the normal waste stream, but at an appropriate collection point for the recycling of electrical products.
