LD Didactic Sensor Panel 2 Instruction Manual

02/18-W2013-Wei
4
5
7 8
1 Description
This device is used to examine the operation of various
analog and digital sensors.
The device is equipped with original sensors for monitoring
the differential pressure of a DPF as well as for detecting
the position of the accelerator pedal, the neutral position
of the transmission, and the brake pedal. The knocking
sensor 739 03 can also be connected to it. The device is
intended for use in educational institutions. Use in a real
vehicle (including use of individual components) is not per-
mitted.
Safety Note
- The device is appropriate for interior use only!
- Use only safety bridging plugs and safety connec-
tion leads!
- Be careful not to short-circuit the power supply.
Fire hazard!
- The device should only be used for training pur-
poses. Installation in an actual vehicle is prohib-
ited!
LD DIDACTIC GMBH • Leyboldstrasse 1 • D-50354 Hürth • Phone (02233) 604-0 • Fax (02233) 604-222 • E-Mail: info@ld-didactic.de
© by LD Didactic GmbH
3
9 10 11

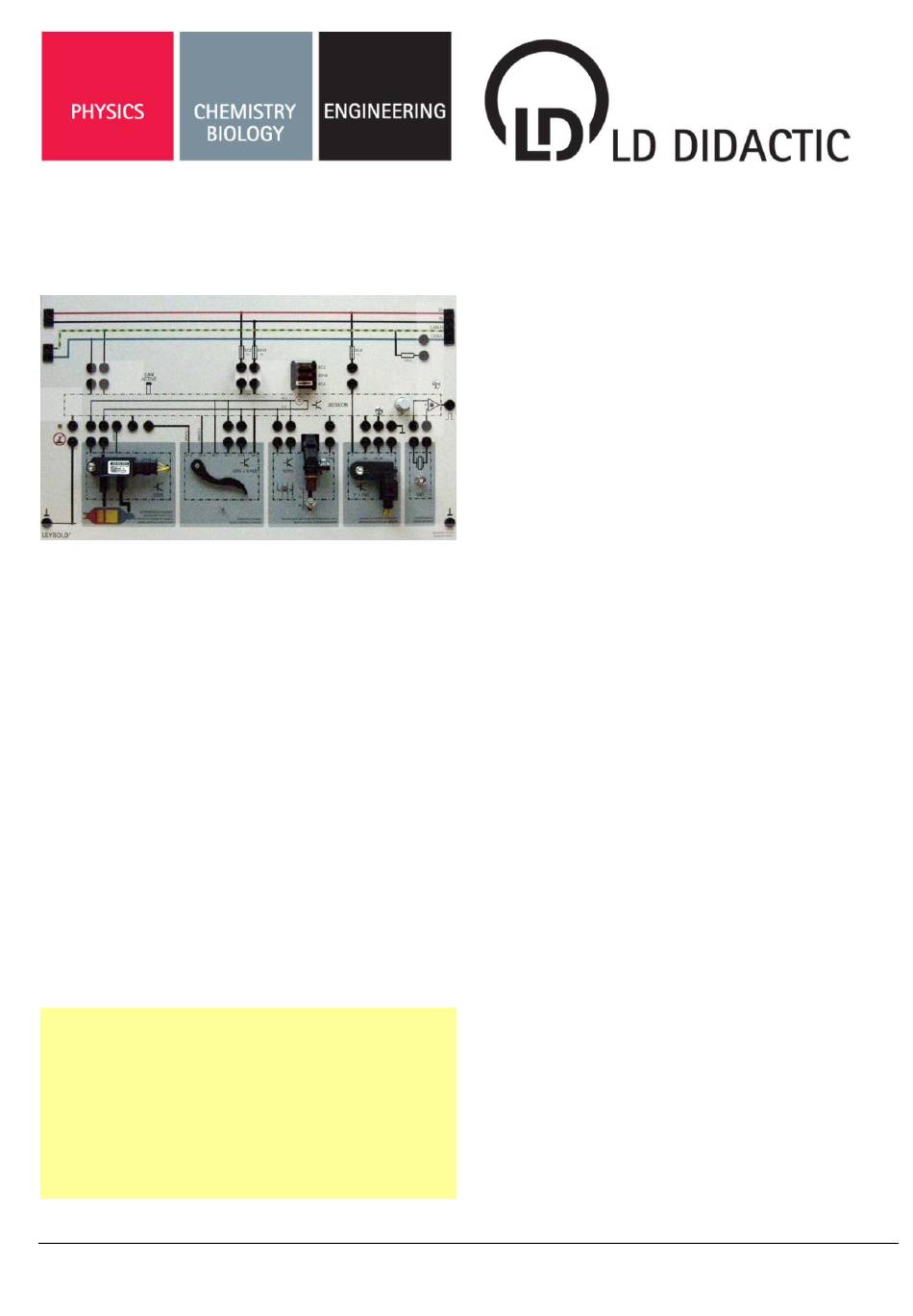

Instruction Manual 739 708
Sensor Panel 2
1
1

Connections Plus Terminal 30 and Terminal 15

2
2 Slot for CAN Terminating Resistance STE
120 Ω
3

Connections and Fuses

6
4

Connection Socket CAN H and CAN L

5

Display for a Lack of Short-circuit to Ground

6 Sensitivity Adjustment and Output Signal for
the Knocking Sensor with Display
7

Short-circuit to ground Terminal 31

8

Sensor for Low Pressure

12
9

Sensor for Accelerator Position

10 Sensor for the Neutral Position of the Transmis-
sion

11 Sensor for Brake Pedal

12 Connection for Knocking Sensor

2 Scope of the delivery
Sensor panel 2, 739 708
Not included, but recommended accessory equipment:
•
Set of 10 magnets
•
CAN-Databus-Multi-Adapter
•
Knocking sensor
•
PVC tubing, 7 mm diam., 1 m
•
Hand vacuum pump
•
Automotive fault simulator
•
Connecting leads, set of 7
689 0815
773 961
739 03
667 193
375 58
738 491
739 195
Printed in the Federal Republic of Germany
Technical alterations reserved
