CruzPro MaxDS110 Manual

Multifunction depth/speed instrument
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CruzPro
MaxDS110
Multifunction Depth/Speed
Instrument
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MaxDS110 and is the answer not in the manual?

Questions and answers

Related Manuals for CruzPro MaxDS110

Summary of Contents for CruzPro MaxDS110

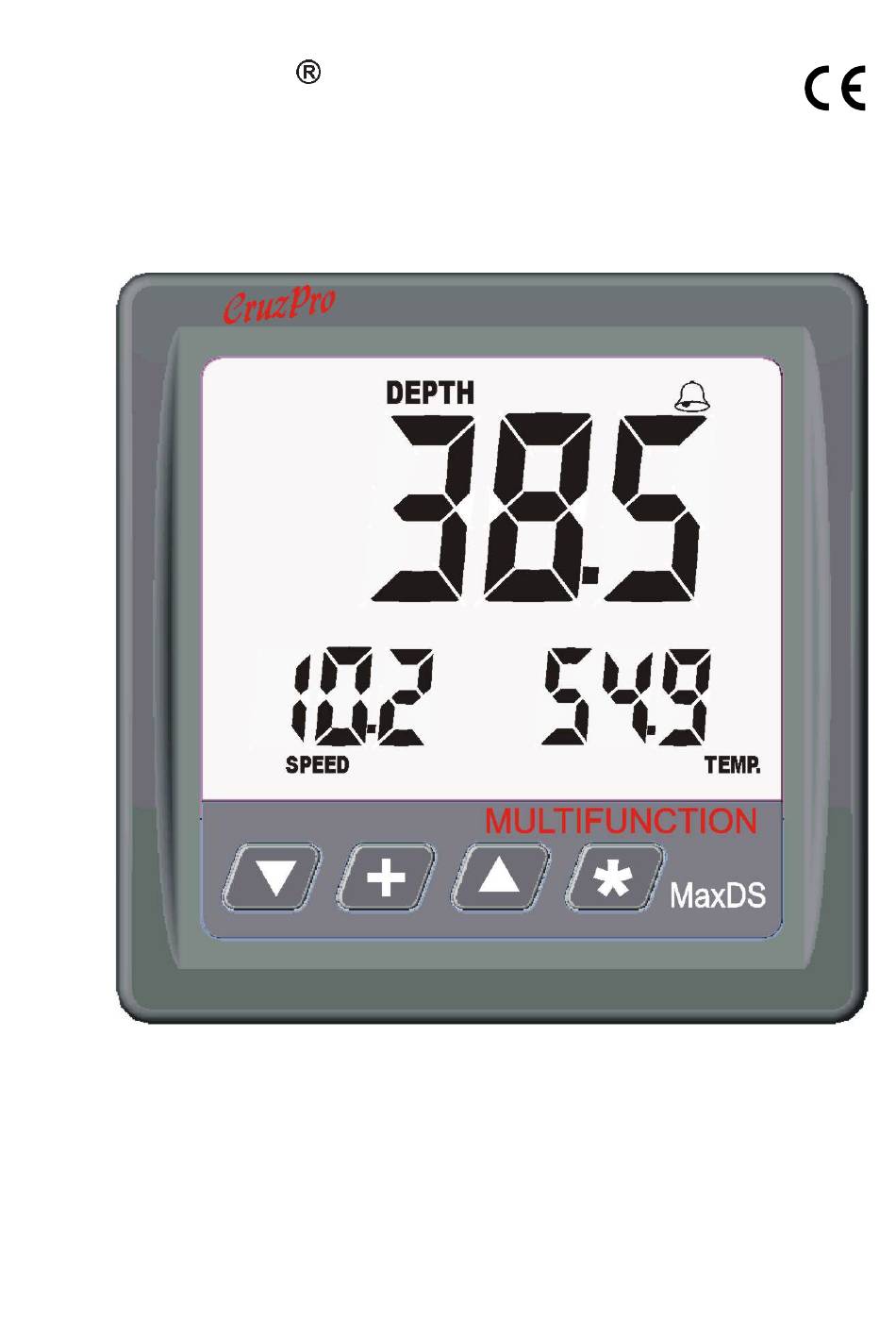

  • Page 1 CruzPro MaxDS110 Multifunction Depth/Speed Instrument Page 1...
  • Page 2 2008 CruzPro Ltd. MaxDS110 Manual Ver. AD http://www.cruzpro.com Made in New Zealand Page 2...

  • Page 3: Table Of Contents

    Index - ......37 Other CruzPro Products ....40...
  • Page 4 CruzPro is a trademark of CruzPro Ltd. Page 4...

  • Page 5: Introduction

    Introduction The MaxDS110 multifunction depth/speed instrument will simultaneously display three sets of data on three digital displays. Depth, boat speed, sea water temperature, trip and total logs, race timers, time-of-day, elapsed trip time and battery voltage can be displayed in a variety of different formats. High and Low alarms can be set for Depth (Deep and Shallow), boat speed, water temperature and battery voltage.
  • Page 6 Page 6...

  • Page 7: Installation And Wiring

    Installation and Wiring Before starting the installation, please read this entire section first. Finger tighten the screws that mount the instrument bracket - It is not necessary or recommended to use tools. Drill a 2-1/8" (55mm) mounting hole where you desire to mount the instrument (Figure 1).
  • Page 8 Figure 2 - MaxDS110 Wiring Diagram Page 8...

  • Page 9: Operation Of The Maxds110

    OFF - the clock will keep running. Press and hold the for three seconds to re-enable the display. If you remove power from the MaxDS110 the Time-Of-Day clock will have to be set again. Changing and Controlling Backlight Intensity Press the : key for 1/2 second to adjust the backlight level for night viewing.

  • Page 10: Summary Of Display Configurations 1-16

    Summary of Display Configurations 1-16 Each time you select a new display configuration the Current Display Configuration number (in this case #1) is displayed for one second as shown in Figure 3. After one second the display shows the data for display configuration #1 as shown in figure 4.
  • Page 11 Figure 5 Display configuration 2 Depth Boat Speed Time of Day Figure 6 Display configuration 3 Depth Boat Speed Battery Volts Figure 7 Display configuration 4 Depth Battery Volts Sea Water Temperature Page 11...
  • Page 12 Figure 8 Display configuration 5 Depth Battery Volts Time of Day Figure 9 Display configuration 6 Boat Speed Depth Sea Water Temperature Figure 10 Display configuration 7 Boat Speed Depth Time of Day Page 12...
  • Page 13 Figure 11 Display configuration 8 Boat Speed Depth Race Timer #1 (5 minute factory default) Figure 12 Display configuration 9 Boat Speed Depth Race Timer #2 (10 minute factory default) Figure 13 Display configuration 10 Boat Speed Depth Elapsed Trip Time Page 13...
  • Page 14 Figure 14 Display configuration 11 Boat Speed Trip Log Depth Figure 15 Display configuration 12 Boat Speed Trip Log Sea Water Temperature Figure 16 Display configuration 13 Boat Speed Trip Log Time of Day Page 14...
  • Page 15 Figure 17 Display configuration 14 Boat Speed Trip Log Total Log Figure 18 Display configuration 15 Sea Water Temperature Boat Speed Depth Figure 19 Display configuration 16 Sea Water Temperature Battery Volts Depth Page 15...

  • Page 16: Turning Alarms On/Off

    Turning Alarms ON/OFF To “arm” the alarms, press and hold the key 1/2 second. The Bell symbol will be displayed when the alarms are “armed”. To disable the alarms press and hold the key for 1/2 second. Any press between 1/2 and 2 seconds will work.

  • Page 17: Setting/Starting Clock/Time-Of-Day Alarms/Race Timers

    Be sure to read the warnings about alarms in the Important Notes and Warnings section about which Data Sources and conditions will sound an audible alarm. Setting/Starting Clock/Time-Of-Day Alarms/Race Timers Press and hold both the keys for ten seconds (until you hear a long beep) to view and/or set the clock, time-of-day alarms and Race Timer1/Race Timer2.
  • Page 18 Figure 23 shows what you will see when setting Race Timer 2. The race timers are set the same way as the clock. Only the minutes can be set for the race timers. Press the + key for 1 second when you are done to save the results to memory.

  • Page 19: Calibrating A Data Source

    Calibrating a Data Source Calibrating the displayed data is possible for boat speed, sea water temperature, battery voltage and the clock. Press and hold the keys for ten sec- onds to enter the Calibration Editor (until you hear a long beep). The data source value, display identifier (1, 2 or 3) and the word “CAL”...

  • Page 20: Setting Display Damping

    If the selected data source cannot be calibrated (such as Elapsed Trip Time) then “---” will be displayed for the Data Source value as shown here. Figure 25 - Calibration Editor Sample display when attempting to calibrate a Data Source that cannot be calibrated.

  • Page 21: Setting Units Of Measure

    Figure 26 - Display Damping Editor Setting the Damping Value to “7” for the Data Source shown on digital display #3 Setting Units of Measure Units of Measure are factory set to Feet, Knots and Degrees F. The clock is set to display in 12 hour format.

  • Page 22: Setting Keel Offset

    Setting Keel Offset You can enter a Keel Offset value between -50.0 and +50.0 Feet/Meters or Fathoms to modify the depth display. Entering a negative number enables you to display the depth below the keel instead of the depth below the transducer. Entering a positive number enables you to display the actual water depth below the surface instead of the depth below the transducer.

  • Page 23: Appendix A - Specifications

    Appendix A - Specifications Power supply: 12/24 VDC (9.5 to 33.0), 0.10 A nominal Operating temperature: 32 to 122 F ( 0 to 50 C) Size: 4.3" x 4.3” x 3.5” deep (110 x 110 x 89 mm). Display: LCD, 3 digital, 16 different configurations Backlighting: 5 levels (including OFF), plus external backlight On/Off control.

  • Page 24: Appendix B - Packing List

    Appendix B - Packing List The MaxDS110 package is supplied with the following items: 1) MaxDS110 instrument. 2) Dust/rain cover. 3) Closed cell foam waterproof bulkhead gasket (adhesive one side). 4) Printed user manual. 5) Warranty card. Page 24...

  • Page 25: Appendix C - Optional Items

    Appendix C - Optional Items A number of different transducer options are available for the MaxDS110: Depth Transducer Options: 1) ATB120A - 450 ft bronze thru-hull ACTIVE NMEA 0183 transducer. 2) ATB120B - 1000 foot bronze thru-hull ACTIVE depth NMEA 0183 transducer.

  • Page 26: Appendix D - Typical Setup

    Appendix D - Typical Setup Page 26...
  • Page 27 Page 27...

  • Page 28: Appendix E - Important Notes And Warnings

    Appendix E - Important Notes and Warnings The front of the MaxDS110 is splash proof. The back is not sealed and must be protected from water. The nonvolatile memory in the MaxDS110 will retain data for a minimum of 10 years without power.
  • Page 29 The Time-Of-Day clock will have to be set again if you remove power to the MaxDS110 but all other data is saved to a nonvolatile memory and not lost. 9) After settings are changed it can take up to 30 seconds to save the data to the nonvolatile memory.

  • Page 30: Appendix F - Critical Background Alarm Functions

    Appendix F - Critical Background Alarm Functions In addition to sounding the alarms for the functions currently being displayed, the MaxDS110 always monitors the following “Critical” functions in the background regardless of what is being displayed on the screen. The alarm will sound only if the alarms are armed, however.

  • Page 31: Appendix G - Key Function Summary

    Appendix G - Key Function Summary In normal display mode Keys Secs Function Scroll DOWN display configurations Scroll UP display configurations Toggle between view Critical Alarms screen and view current display configuration . Start/Stop Race Timer #1 Start/Stop Race Timer #2 Display Version and Serial Number for 5 seconds Disable Alarms (Turns off BELL symbol) Scroll UP through 5 backlight levels...
  • Page 32 In “Set Low/High Alarm Values” Mode Keys Secs Function 0.1 Scroll through Display Number (1, 2, 3) 0.1 Decrease displayed reading (hold to go faster) 0.1 Increase displayed reading (hold to go faster) 1.0 Save new calibration value(s) to memory In “Set Display Damping”...
  • Page 33 In “Set Units of Measure” Mode Keys Secs Function 0.1 Select Depth, Speed, Temperature or 12/24 Hr 0.1 Scroll through the possible units 0.1 Scroll through the possible units 1.0 Save new units of measure to memory In “Set Keel Offset” Mode Keys Secs Function...

  • Page 34: Appendix H - Nmea 0183 Sentences

    Appendix H - NMEA 0183 Sentences The MaxDS110 outputs NMEA 0183 serial data for use with remote data re- peaters or data logging hardware. The data consists of the $IIXDR sentence and contains data for Depth, Boat Speed, Sea Water Temperature and Battery Voltage in that order.

  • Page 35: Appendix I - Display Firmware Version And Serial No

    Appendix I - Display Firmware Ver. and Serial Number Quick press both the keys to display the current Firmware Version and the product Serial Number for five seconds. Page 35...

  • Page 36: Appendix J - Error Codes

    Appendix J - Error Codes The internal software that runs the MaxDS110 instrument can detect and display some software and hardware errors. A listing of those error codes and their meaning as shown below. 0 Contents of internal nonvolatile memory are corrupted and factory defaults are being used.

  • Page 37: Index

    Index Alarm 3, 16, 23 alarm 9, 28 Alarm Code 30 Alarms 16, 31 armed 28 background alarm 28 Backlight 9 backlight 9 Calibrate 3, 18, 19, 23 calibrate 9, 20, 23 Calibrating the Time-Of-Day clock 19 Clearing Trip Distance and Trip Time Logs 22 Clock Calibration 19 critical functions 30 Critical Background Alarm 30...
  • Page 38 fuse 28 Hours and Minutes 33 Key Functions 3, 9 key functions 9 NMEA 3, 5, 34, 40 nonvolatile memory 28 nonvolatile 32 Notes and Warnings 28 ON/OFF 9 Power ON/OFF 9 scroll fast 29 Serial Number 35 Specifications 23 start Race Timer 18 Time-Of-Day 33 Turn Power OFF/ON 31...
  • Page 39 User Notes Page 39...

  • Page 40: Other Cruzpro Products

    Other CruzPro Products l Depthsounders/w Keel Offset, Deep/Shallow/Anchor Drag Alarms l PC Based DSP Fishfinder for Windows98, NT, SE,XP, 2000 l Speed/Temperature/Logs l 34 Function Multi-Function Gauge l Digital DC Volts Gauge/w Alarms l Digital DC Volts Gauge/w Alarms for 3 Battery Banks...
