USER MANUAL
AR431
AR435
AR433
AR437
APAR - Sales Office
05-090 Raszyn, ul. Gałczyńskiego 6
Tel. (+48) 22-101-27-31, 22-853-48-56, 22-853-49-30
fax (+48) 22-101-27-33
Internet: www.apar.pl, email:
WIRELESS SENSORS
automatyka@apar.pl
AR432
AR436
AR434
Version 1.2.4
2018-12-07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AR431 and is the answer not in the manual?

Questions and answers

Summary of Contents for APAR AR431

  • Page 1 APAR - Sales Office 05-090 Raszyn, ul. Gałczyńskiego 6 Tel. (+48) 22-101-27-31, 22-853-48-56, 22-853-49-30 fax (+48) 22-101-27-33 Internet: www.apar.pl, email: automatyka@apar.pl USER MANUAL AR431 AR432 AR435 AR436 AR433 AR434 WIRELESS SENSORS AR437 Version 1.2.4 2018-12-07...
  • Page 2: Table Of Contents

    9. ADDING AND REMOVING MEASUREMENT SENSORS FROM AR407/406 LIST ......... 8 10. SETTING THE CONFIGURATION PARAMETERS ..................8 10.1. PARAMETERS COMMON FOR ALL SENSORS ................. 9 10.2. SPECIFIC PARAMETERS FOR AR431/432/435/436/437 ............... 9 10.3. SPECIFIC PARAMETERS FOR AR433/434 ..................10 10.4. ALARM CONFIGURATION (APPLIES TO AR432/434/436)............11 11.
  • Page 3: Installation Recommendations

    Before starting the work on the device, remove the protective film securing the LCD display window (if present). AR431/432/433/434/435/436: the devices may be hung using the holes in the rear wall; in case of wall mounting - to make the fixing holes, you may remove the rear wall of the housing (chapter 13) and use it as a template.
  • Page 4: Package Content

    - stabilized power supply adapter 5V/150mA - IP50 filter with a metal mesh for protecting the humidity sensor against dust for AR437 and for external probes for AR431, AR432, AR435, AR436, AR437 NOTE: - before operating the device, please read this manual and manual for AR407/AR406 base recorder (AR40x).
  • Page 5: Technical Data

    IP65, polycarbonate, 82x80x55mm, IP40 or IP50 probe Weight (with battery and antenna) ~90g (AR431/433/435), ~110g (AR432/434/436), ~230g (AR437) the operating time depends on the measuring period, the presence of the LCD and ambient temperature. Exemplary, approximate operating times at 20÷30°C, with undisturbed radio transmission and inactive retransmitter function (increasing the range):...
  • Page 6: Description Of Elements. External Measuring Probes. Accessories

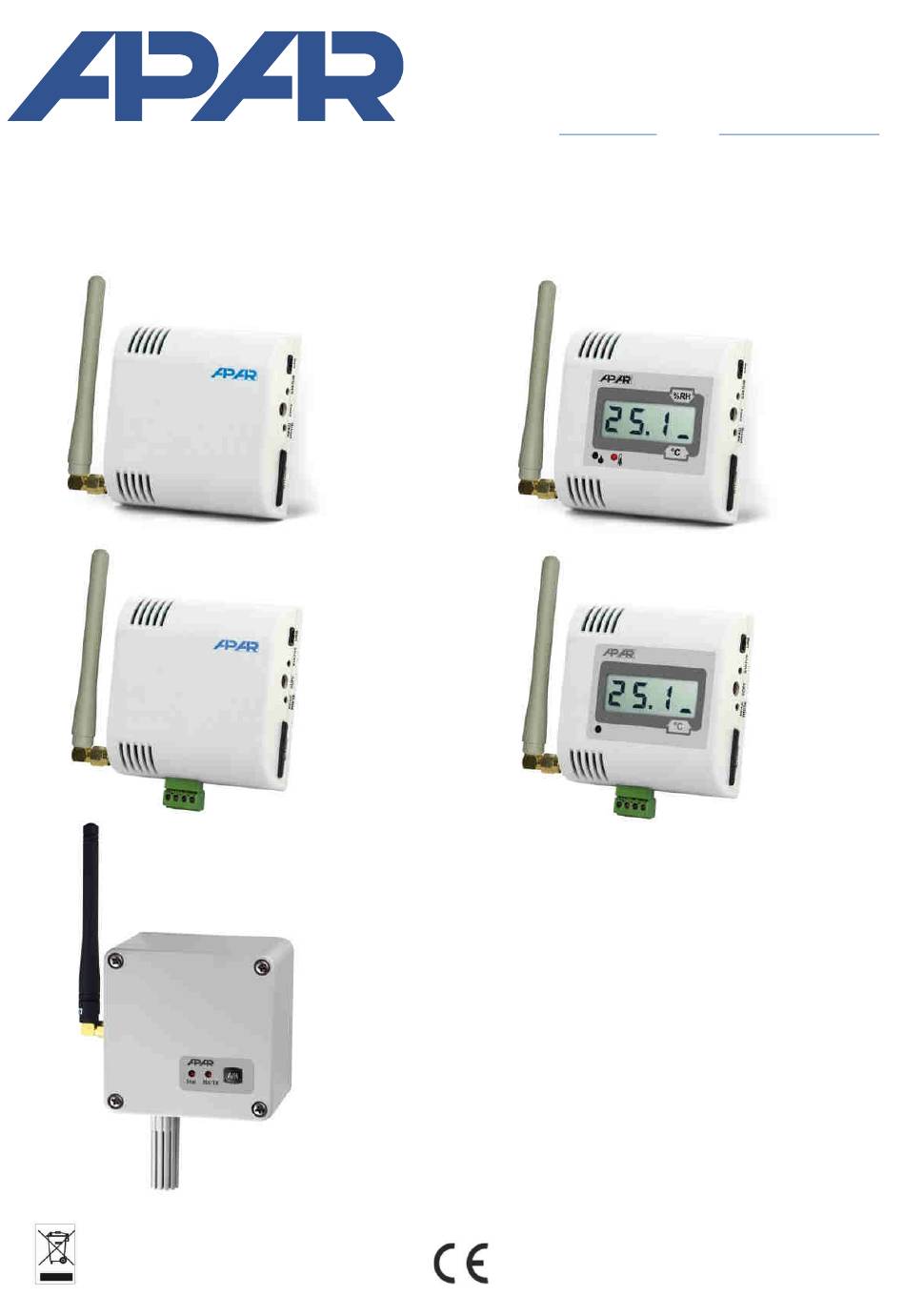

    5. DESCRIPTION OF ELEMENTS. EXTERNAL MEASURING PROBES. ACCESSORIES. a) front view of AR432/436 and b) front view of AR434 and c) side view AR431/435 (without LCD and LED-alarm) AR433 (without LCD and LED-alarm) d) AR437/1 USB connector for communicating with the computer is inside the housing...
